Specification

Type:2:1 Reduction

Input Shaft:25mm Diameter, 60mm Long

Input Shaft Keyway:7mm

Input Mounting Holes:90mm Square

Output Shaft:22mm Diameter, 50mm Long

Output Shaft Keyway:7mm

Output Mounting Holes:70mm Square



Note

The Gearbox Is Supplied Without Oil, And Requires Oil Before Use.

This Is Typically The Same As You Would Use In The Engine Sump i.e An SAE30 4-Stroke

Small Engine Oil.



Fitment

Fit For Honda GX240 - GX390 Range And Most Chinese 9hp To 13hp Clone Engines With

25mm Diameter And 60mm Long Output Shafts, Also Known As The L Type PTO Shaft Option.

Note:Requires A 60mm long, 25mm Diameter Crankshaft Input, Output Is To A 22mm Shaft,

Also Known As The R Type PTO Shaft.

Ready To Assemble, They Give Incredible Torque At Lower Engine Speeds, And Are Ideal

Replacements On Go-Karts, Mixers, Pumps Etc.



Package

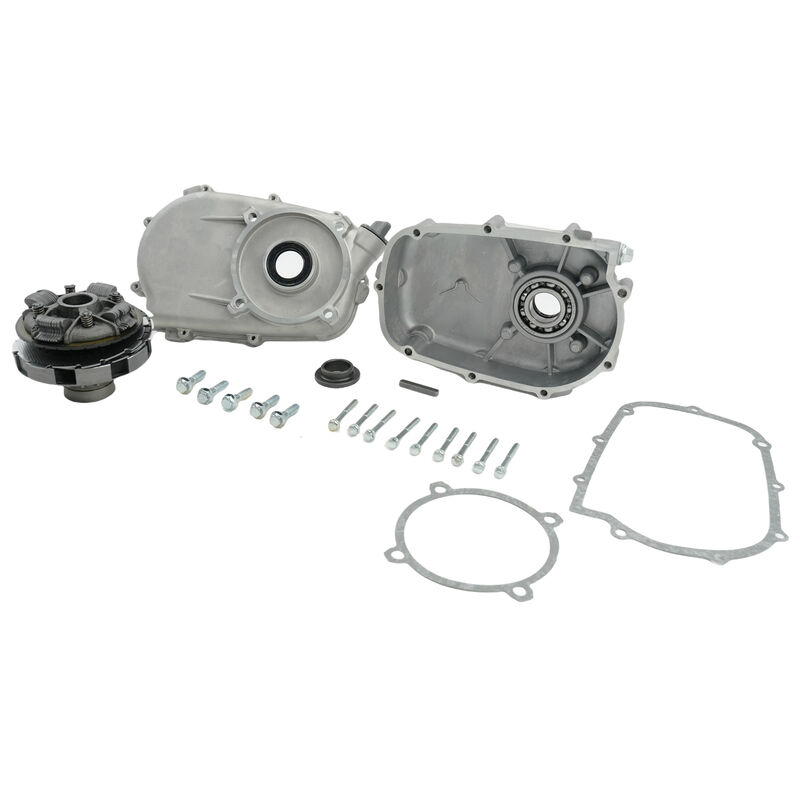

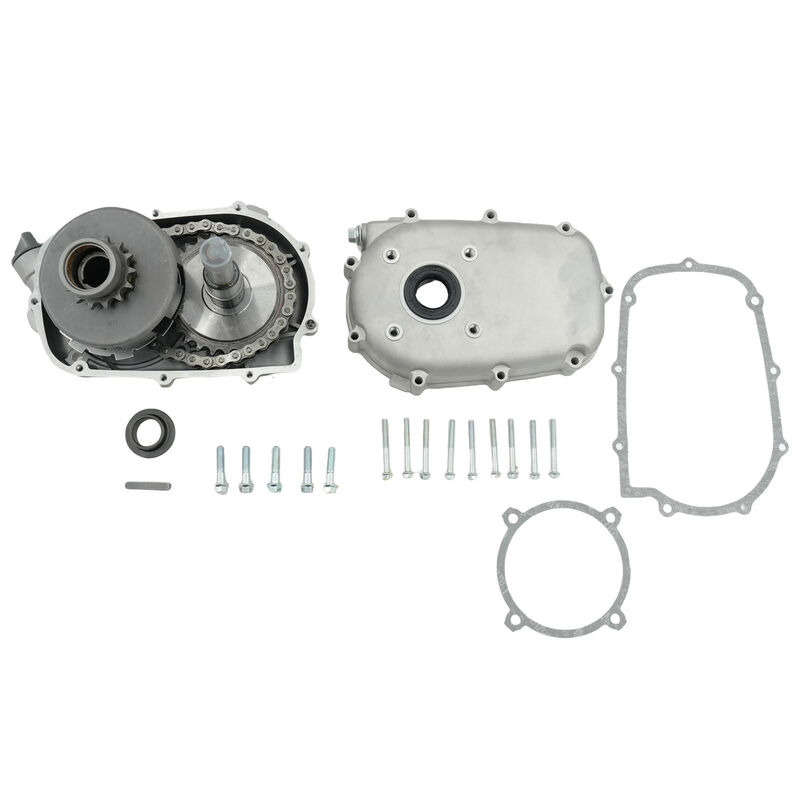

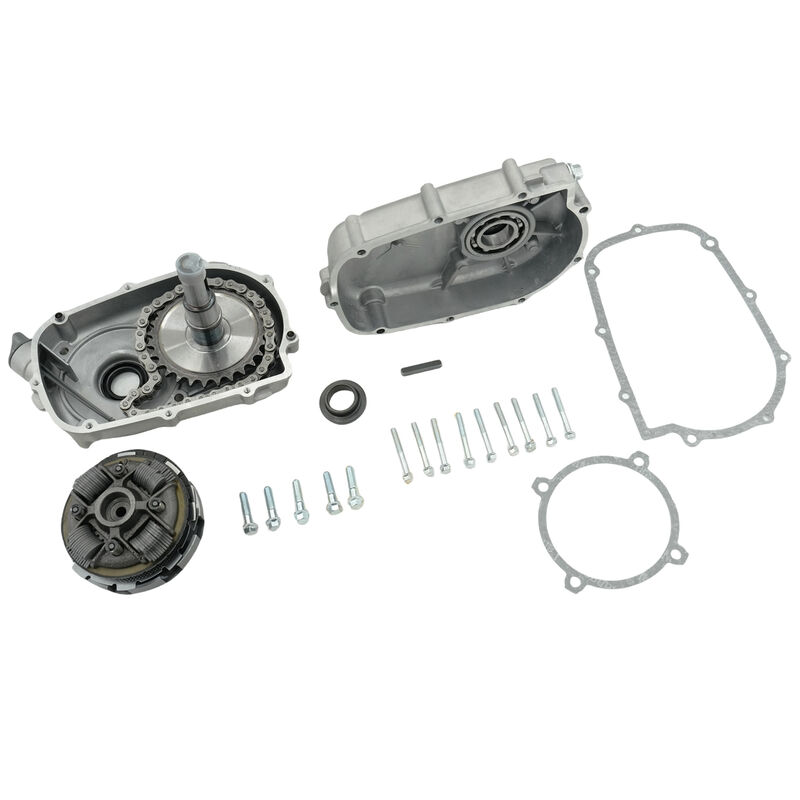

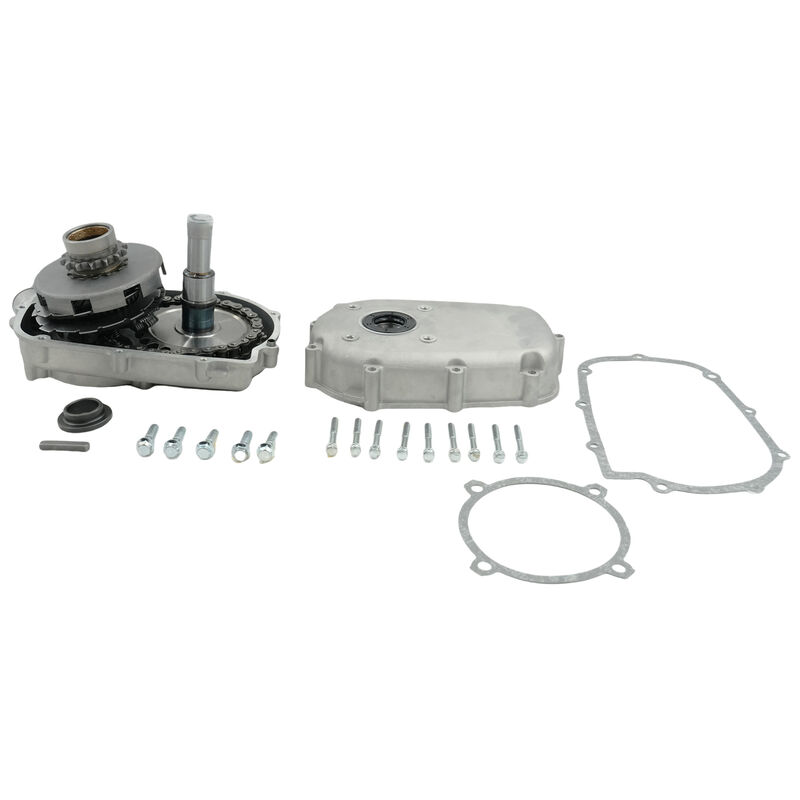

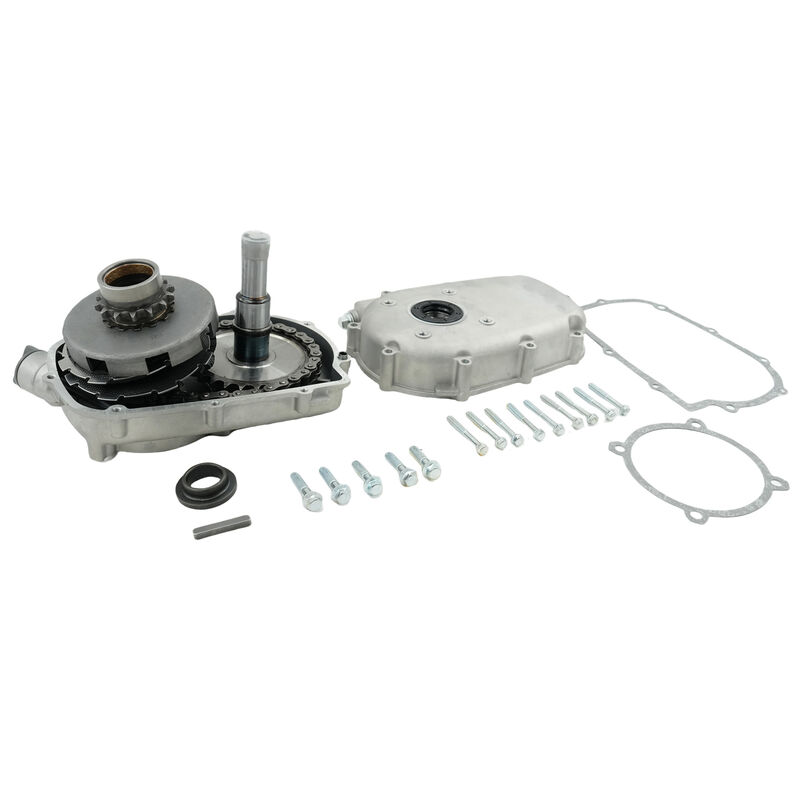

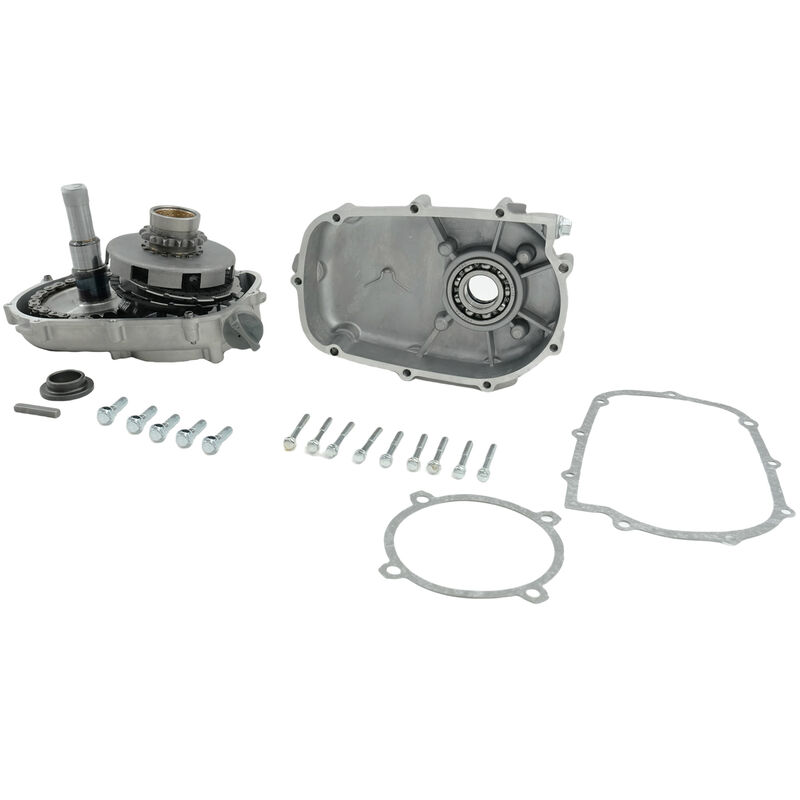

1 Set x Wet Clutch

SKU WCCH-HD002
Brand MACHTER AUTOPARTS
Shipping Weight 5.4000kg
Shipping Width 0.220m
Shipping Height 0.180m
Shipping Length 0.255m
Shipping Cubic 0.010098000m3
