Feature

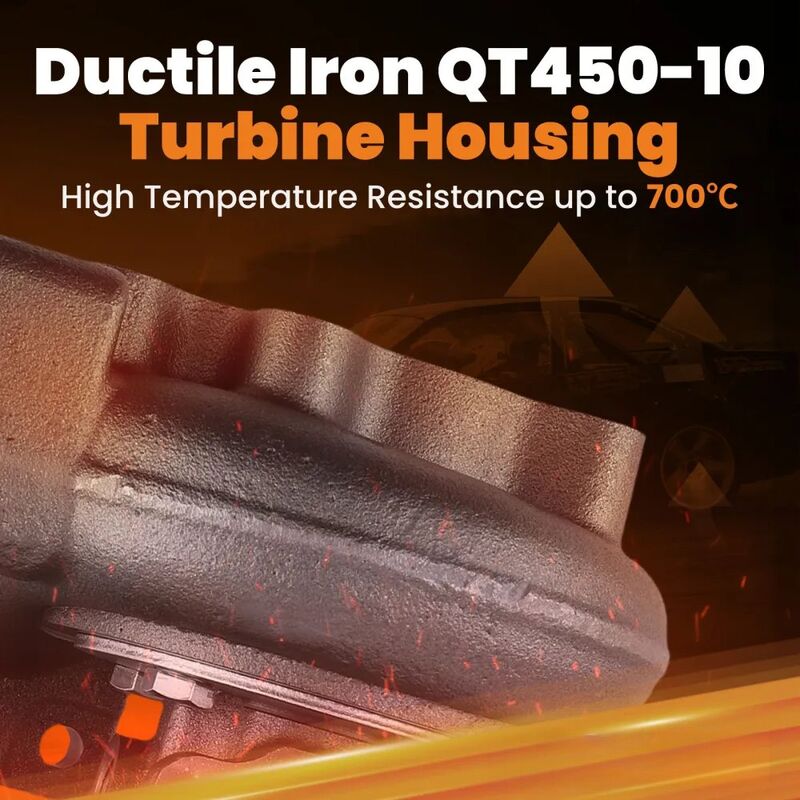

1. Turbine Housing : Ductile Iron QT450-10 Shell With High-Temperature Resistance Up To 700 Degrees Celsius

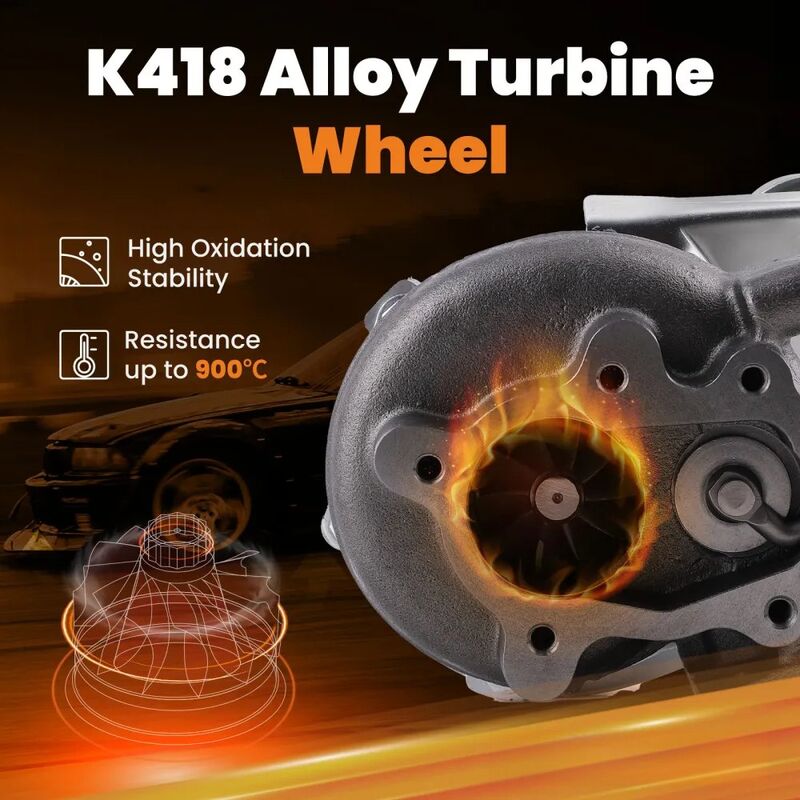

2. Steel Turbine Wheel: Made From The Special K418 Alloy To Achieve High Oxidation Resistance And Stability Under High Temperatures Up To 900 Degrees Celsius

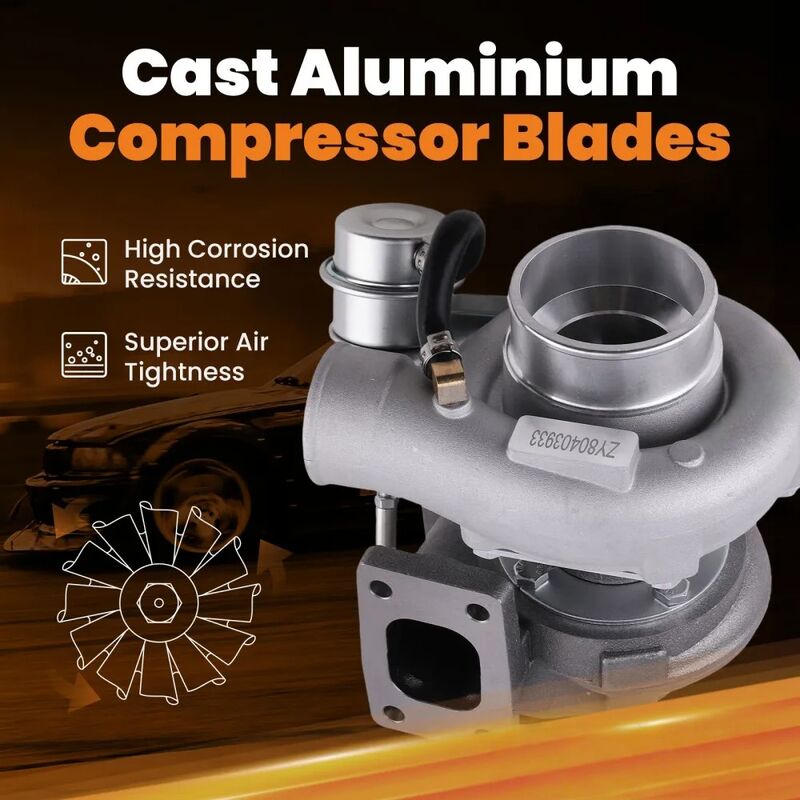

3. Compressor Wheel/Blades: Cast Aluminium With Good Gas Tightness And Corrosion Resistance

4. Capable Of Boosting Horse Power Up To 350 BHP

Specification

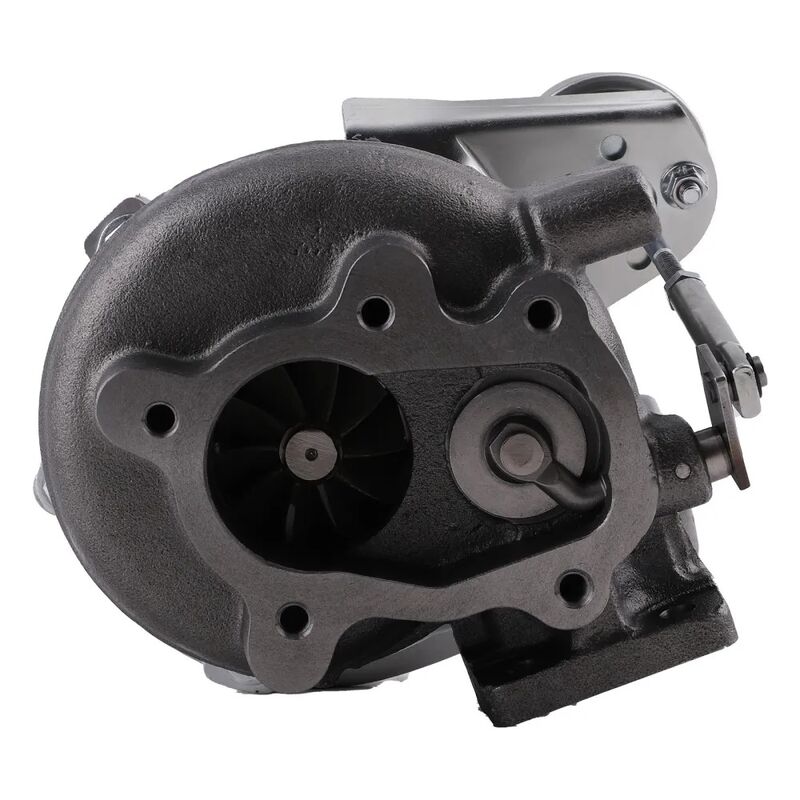

Exhaust Inlet (Turbo Manifold) Flange: Standard T25 Flange

Exhaust Outlet Flange: 5-Bolt

Turbine Trim: 76

Turbine A/R: 0.64

Turbine Inducer Diameter: 53.8mm

Turbine Exducer Diameter: 47mm

Compressor Trim: 48

Compressor A/R: 0.60

Compressor Inducer Diameter: 49.2mm

Compressor Exducer Diameter: 71 mm

Bearing Type: Wet Float

Cooling Type: Water + Oil

Wastegate: With Wastegate

Oil Restrictor: Yes

Oil Restrictor Size: Inside Diameter 2mm

Oil Feed Size: 12mm

Oil Inlet: M12 x 1.25

Oil Drain Size: 14mm

Oil Outlet: M14 & 2 x M8 x 1.25

Oil Drain Thread Pitch: 40mm

Water Thread Size: M14 x 1.5

Horse Power: Boost Horse Power Up To 350BHP

GGT2871-NPVL

Fitment

Universal For Turbo Manifold With T25 Flange(T28 Flange Can Be Converted To T25 Flange, Adapter Is Needed).

Perfect For All 1.5L-2.0L Engine, For All 4 Cylinder

Note
This turbo is an universal application turbo, some modification may be required based on individual vehicle. Please check the details carefully before purchasing.

Package

1 x Turbocharger kit
