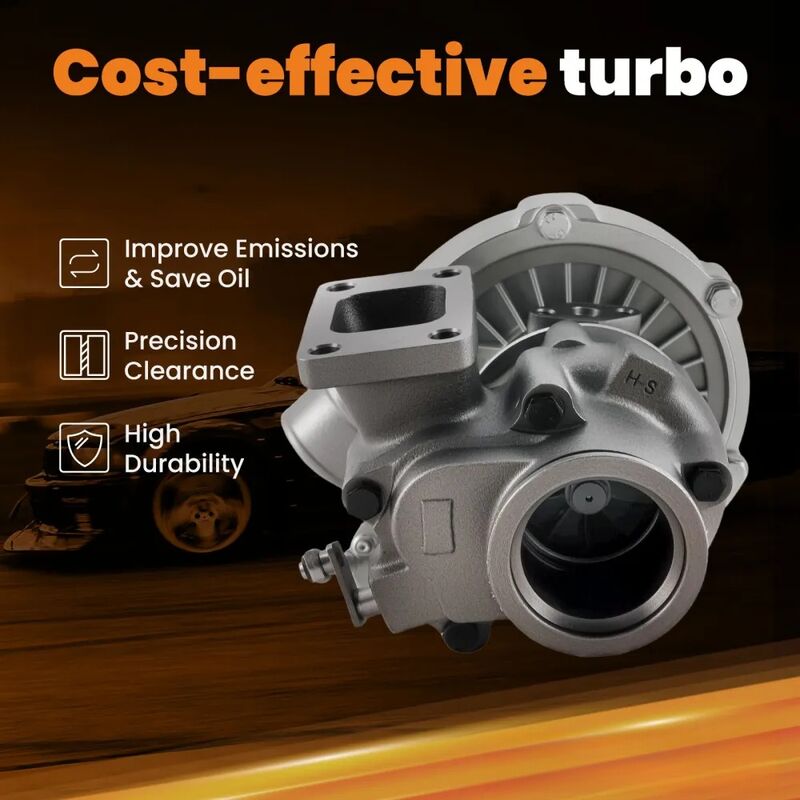

Feature

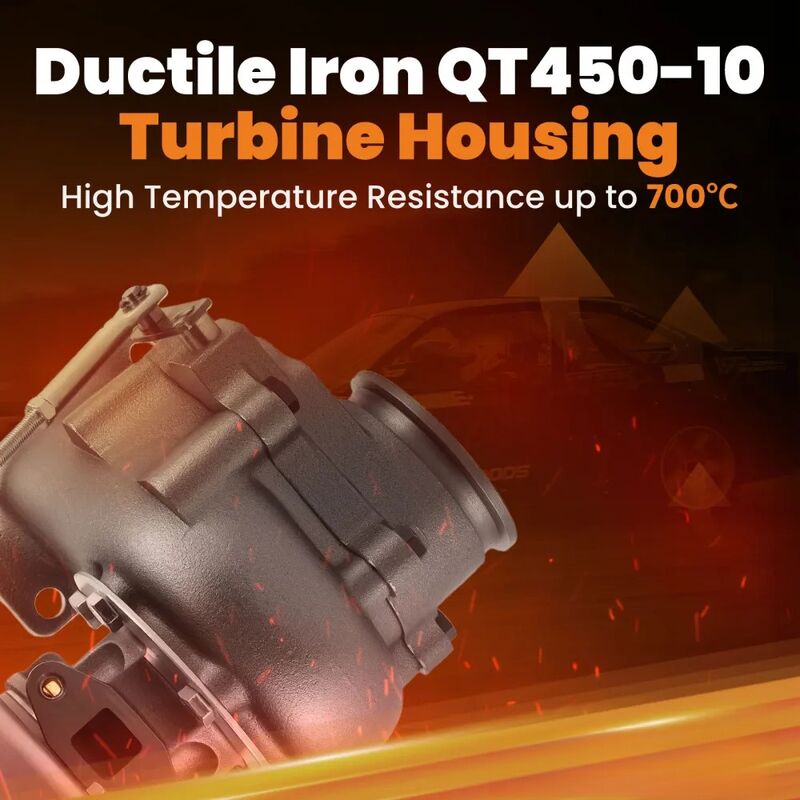

1. Turbine Housing: Ductile Iron QT450-10 - Temperature Resistant Up To 700℃

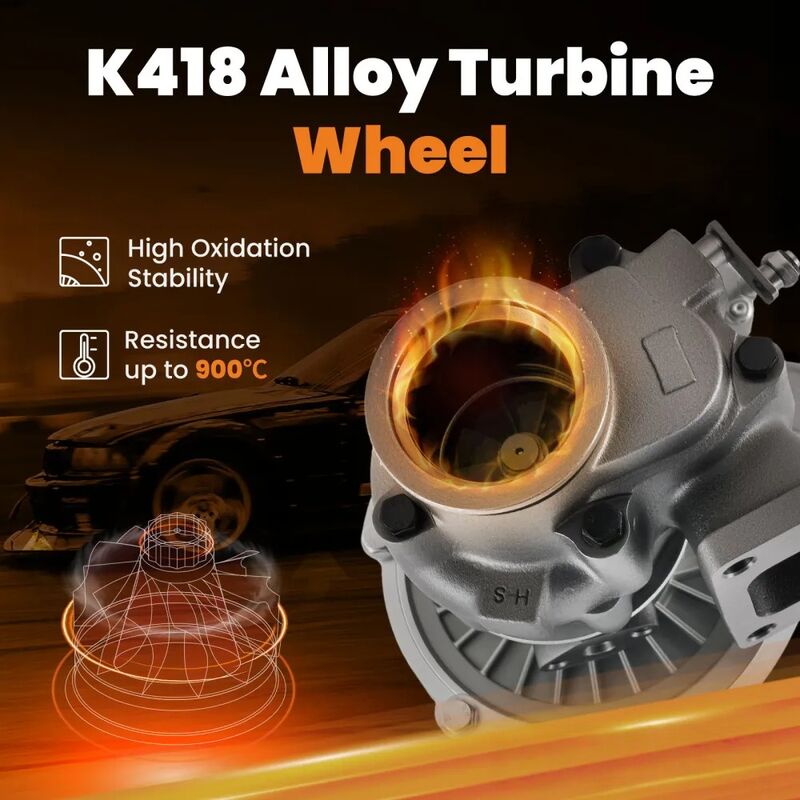

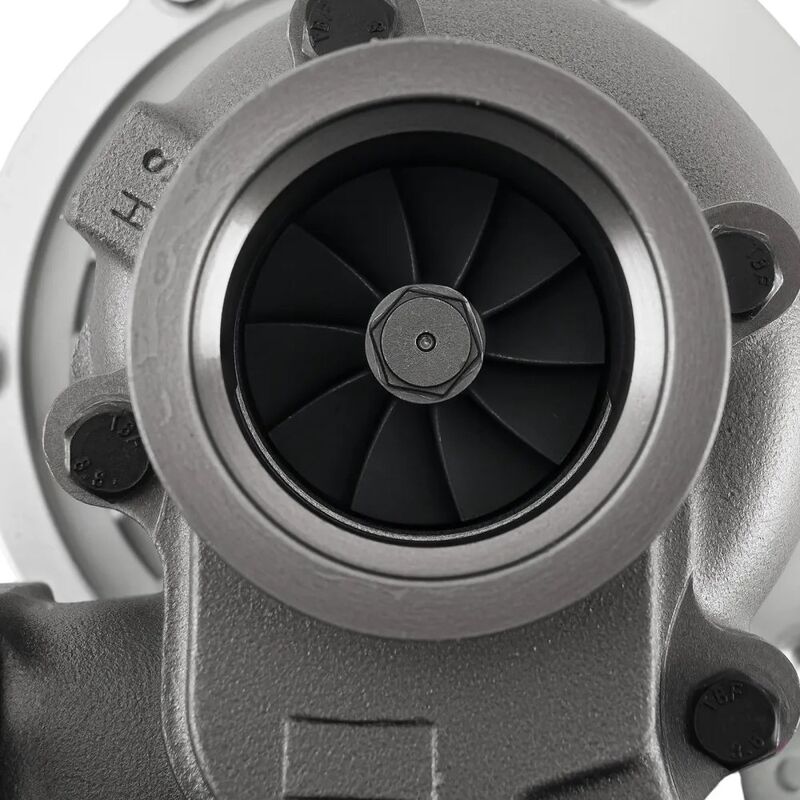

2. Steel Turbine Wheel: K418 Alloy - High Oxidation Stability And Resistance Up To 900℃

3. Compressor Housing: ZL104 Aluminum With Lightweight

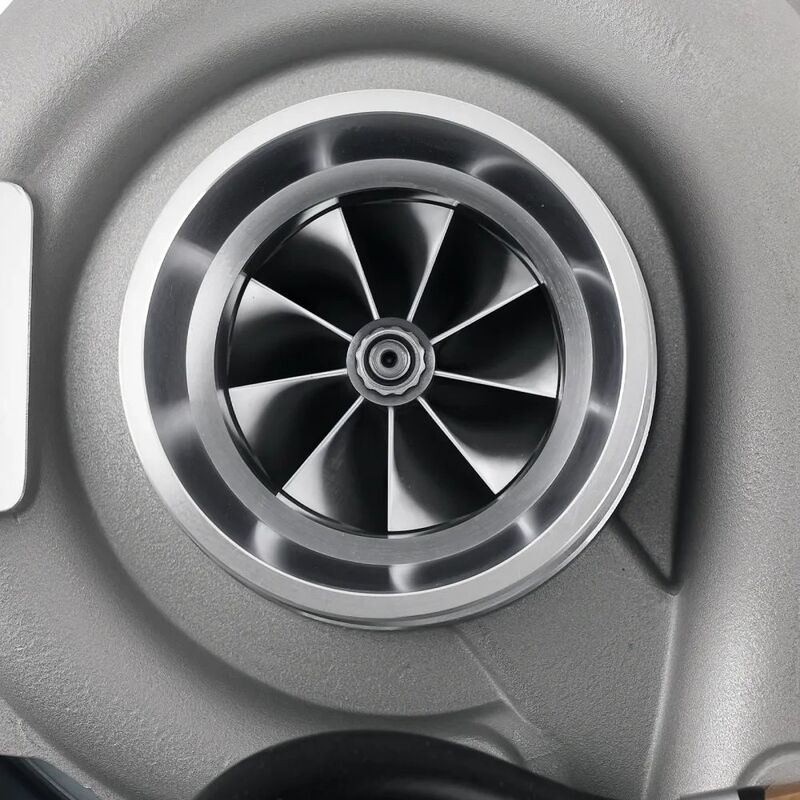

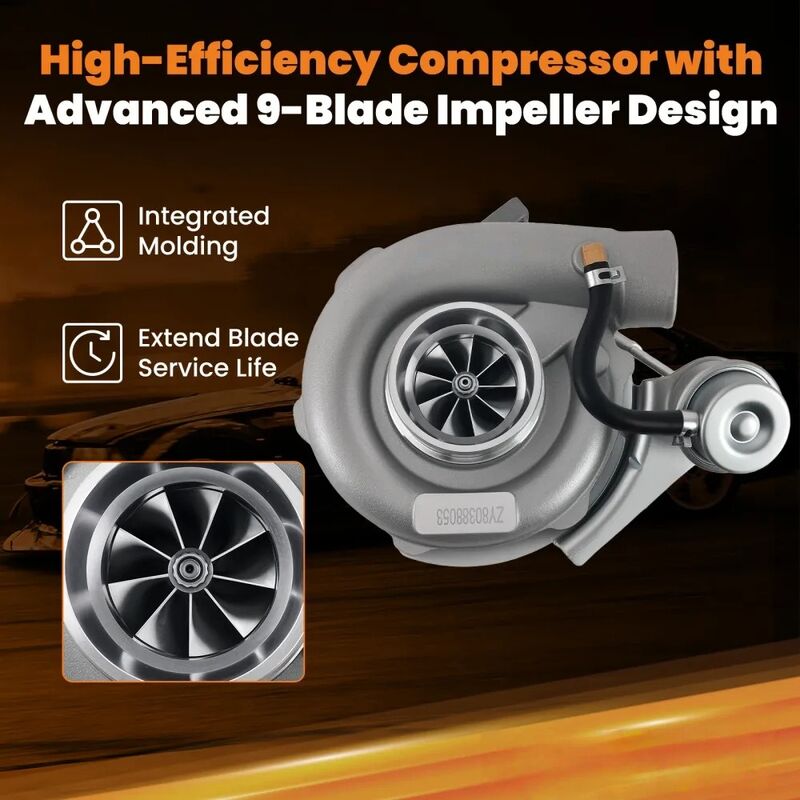

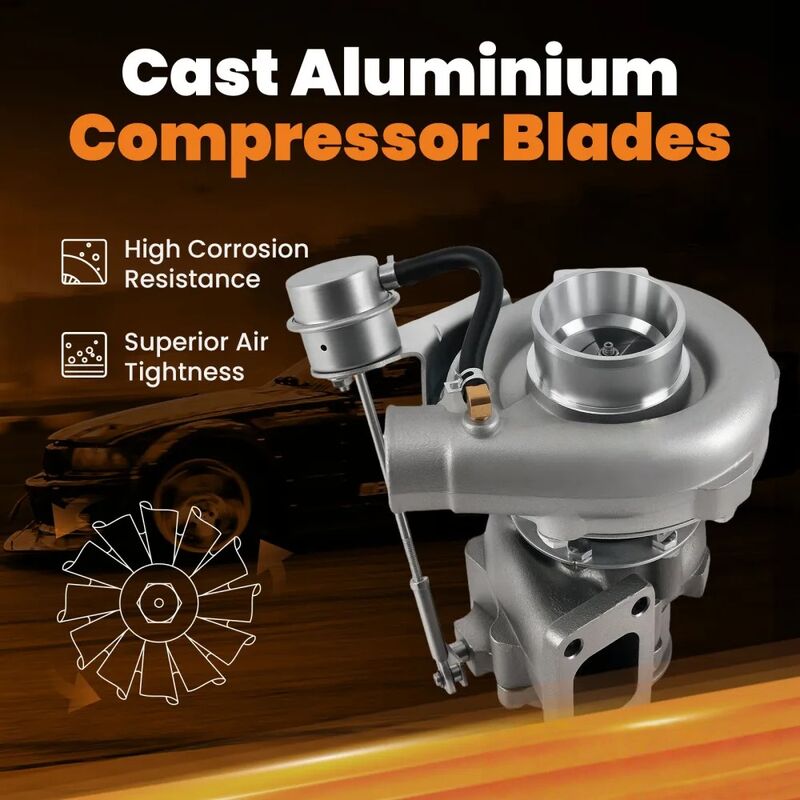

4. Compressor Wheel/Blades: Cast Aluminium Blades - Superior Air Tightness & Corrosion Resistance

Specification

Exhaust Inlet (Turbo Manifold) Flange: T3 4 bolt Flange Patterns

Exhaust Outlet Flange: V-Band Flange (ID/OD: 2.5"/3.1")

Turbine Trim: 74.2

Turbine Inducer Diameter: 64.8 mm

Turbine Exducer Diameter: 55.8mm

Turbine A/R: 0.63

Turbine Exhaust Outlet : 79mm

Turbine Exhaust Inlet：44.7mm（Length）/85.8mm（Width）

Compressor Outlet：78 mm

Compressor Inlet：51.5 mm

Compressor Trim: 48.1

Compressor Inducer Diameter: 52.7mm

Compressor Exducer Diameter: 76 mm

Compressor A/R: 0.5

Bearing: Journal Bearing

Horse Power: Capable Of Boosting Horse Power Up To 420HP

Cooling Type: Oil Cooled

Oil Inlet: M12 x 1.25 & 2 x M8 x 1.25

Oil Outlet: 2 x M8 x 1.25

Wastegate: With Wastegate

Thrust Bearings: 270 Degrees

Turbo Type: Individual

GGTT3GEN2-VL

Fitment

Fit For 1.5L to 2.5L any 4/6 cylinder engine
Note
This turbo is an universal application turbo, some modification may be required based on individual vehicle. Please check the details carefully before purchasing.

Package

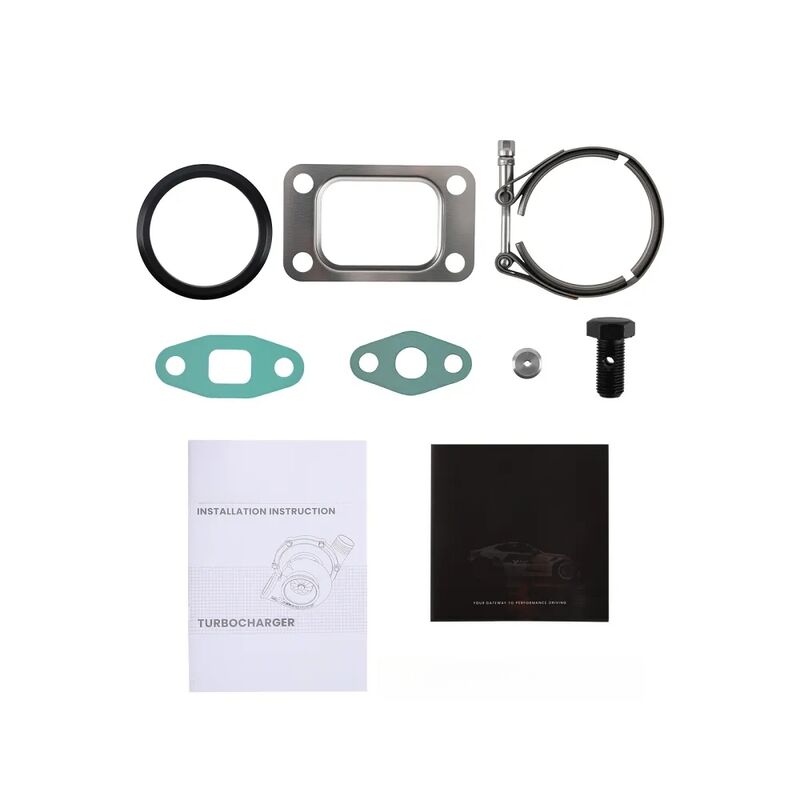

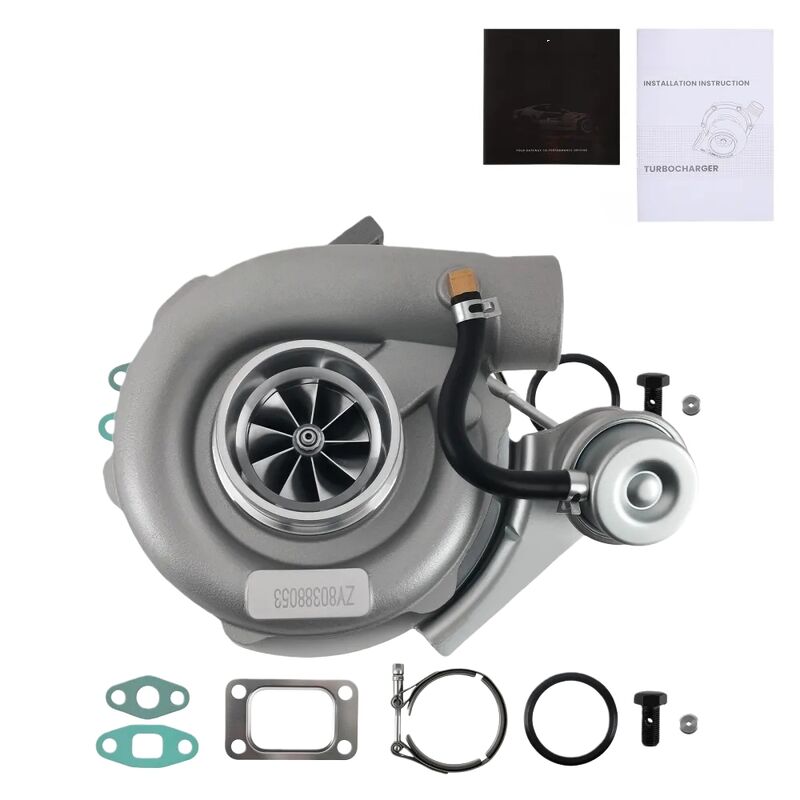

1 x Turbocharger kit
