Specification

Kilowatts (kw)：1.4

Overall Length (mm)：180

Mounting Hole (mm)：M10x1.25

Mount Hole Centres (mm)：105

Flange Diameter (mm)：74

Nose Cone Length (mm)：32

Pinion At Rest (mm)：19

Field Housing Diameter (mm)：80

Teeth：9TH

Rotation：CW

Pinion Diameter (mm)：29

Note

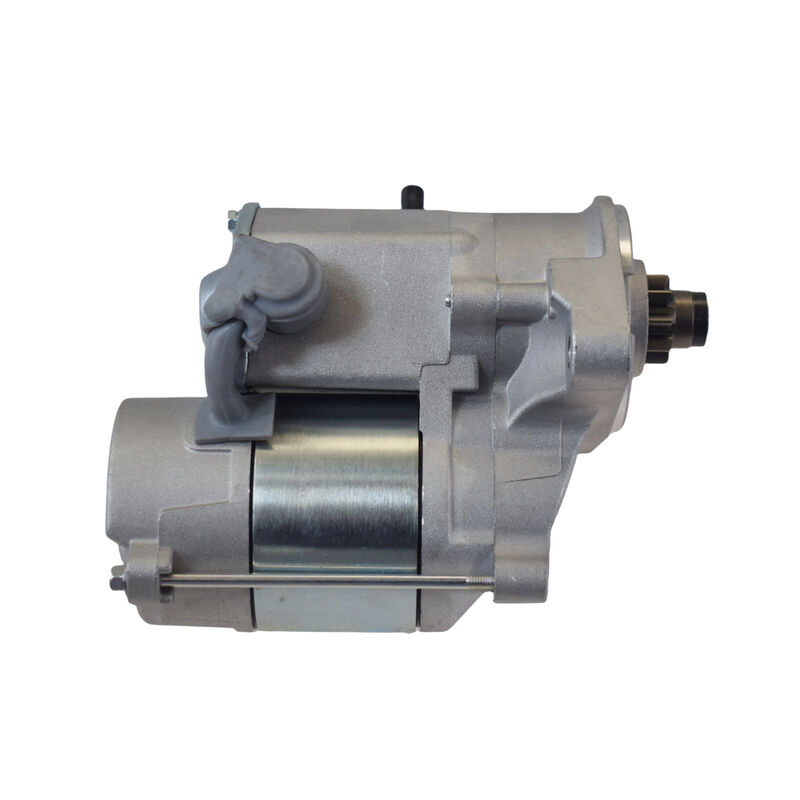

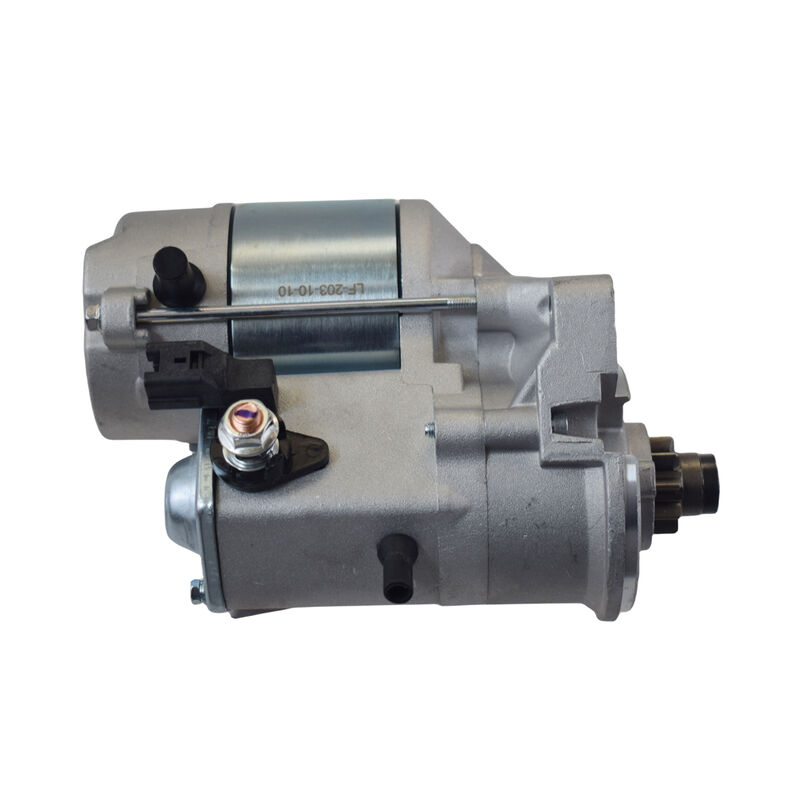

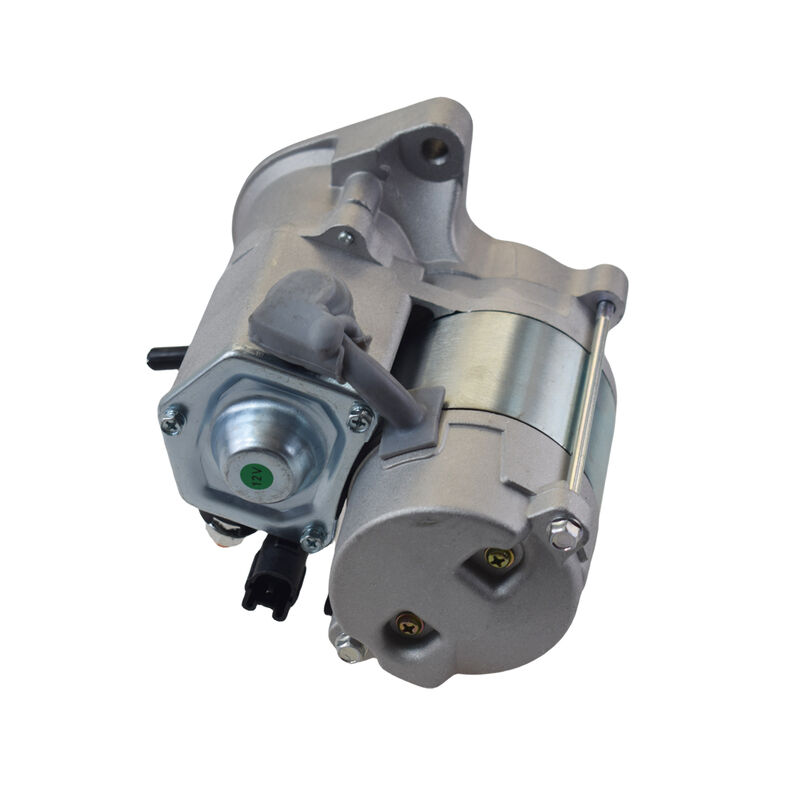

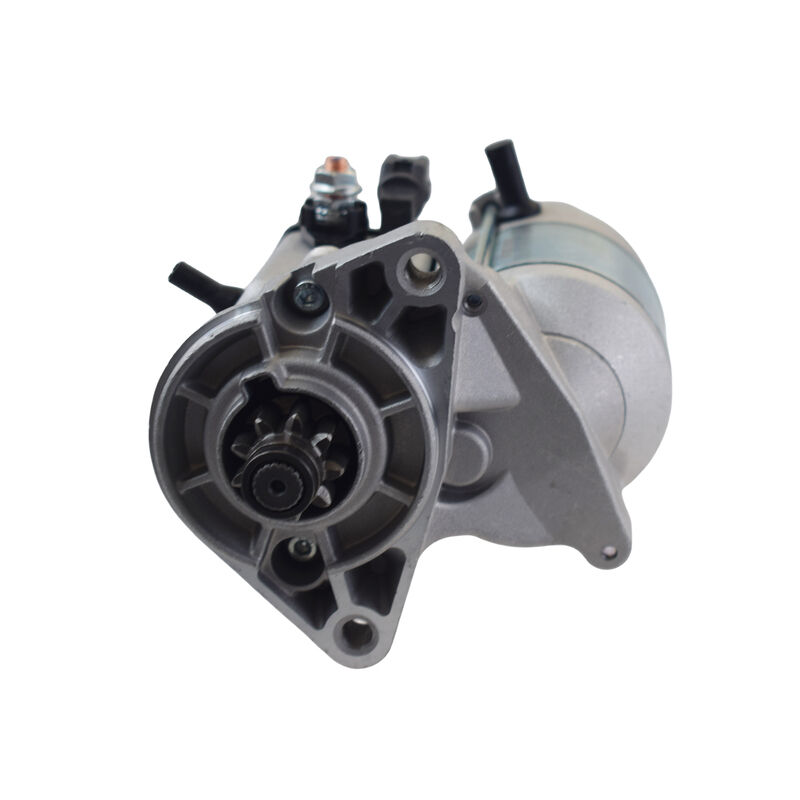

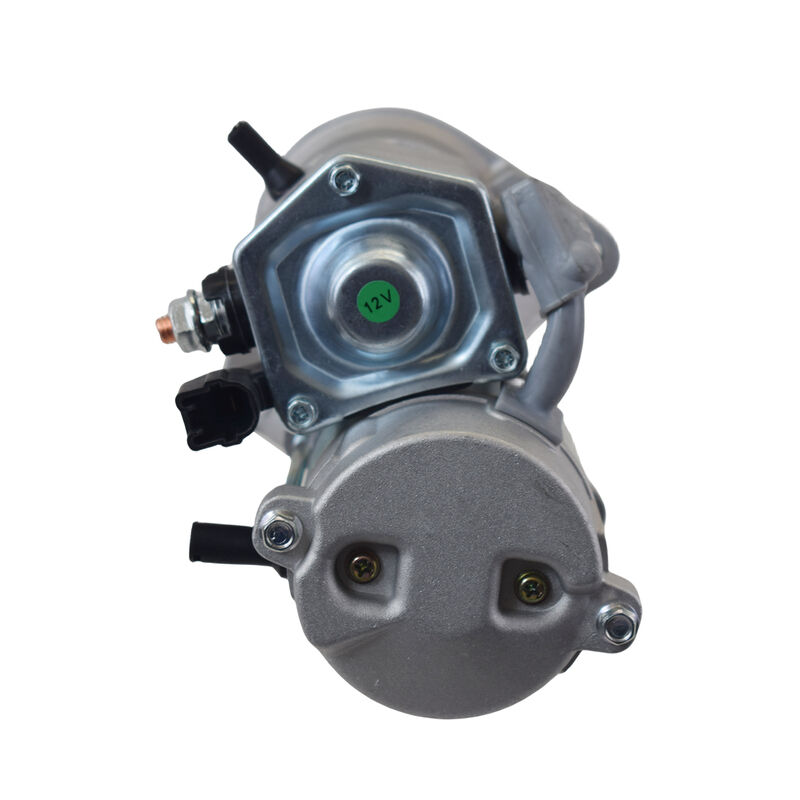

Please Check With Pictures / Numbers / Specs Before Ordering.

Fitment

Fit For Toyota 4 Runner eng.3RZ 2.7L 2000-ON

Fit For Toyota Hi-Ace RZH100G, 101G, 102V eng.1RZ 2.0L 1989-ON

Fit For Toyota Hi-Ace RZH103, 113, 125 eng.2RZ 2.4L 1989-2000

Fit For Toyota Hi-Ace eng.3RZ 2.7L 2000-2004

Fit For Toyota Hi-Ace eng.5RZ 2.7L 2004-ON

Fit For Toyota Hilux LN609, 109, 309 eng.1RZ, 2RZ 2.7L 1997-2000

Fit For Toyota Hilux RZN149R, 154R eng.3RZ 2.7L 2000-2006

Fit For Toyota Hilux RZN169R, 147R 4WD eng.3RZ-FE 2.7L 1997-1998

Fit For Toyota Landcruiser/Prado 90 Series RZJ95R eng.3RZ-FE 2.7L 41999-02

Fit For Toyota Landcruiser/Prado 120 Series RZJ120R eng.3RZ-FE 2.7L 2003-ON

Package

1 x Starter Motor
