Parts For Repair Only



Item Number:
SMOTOR-TA006M

Features:

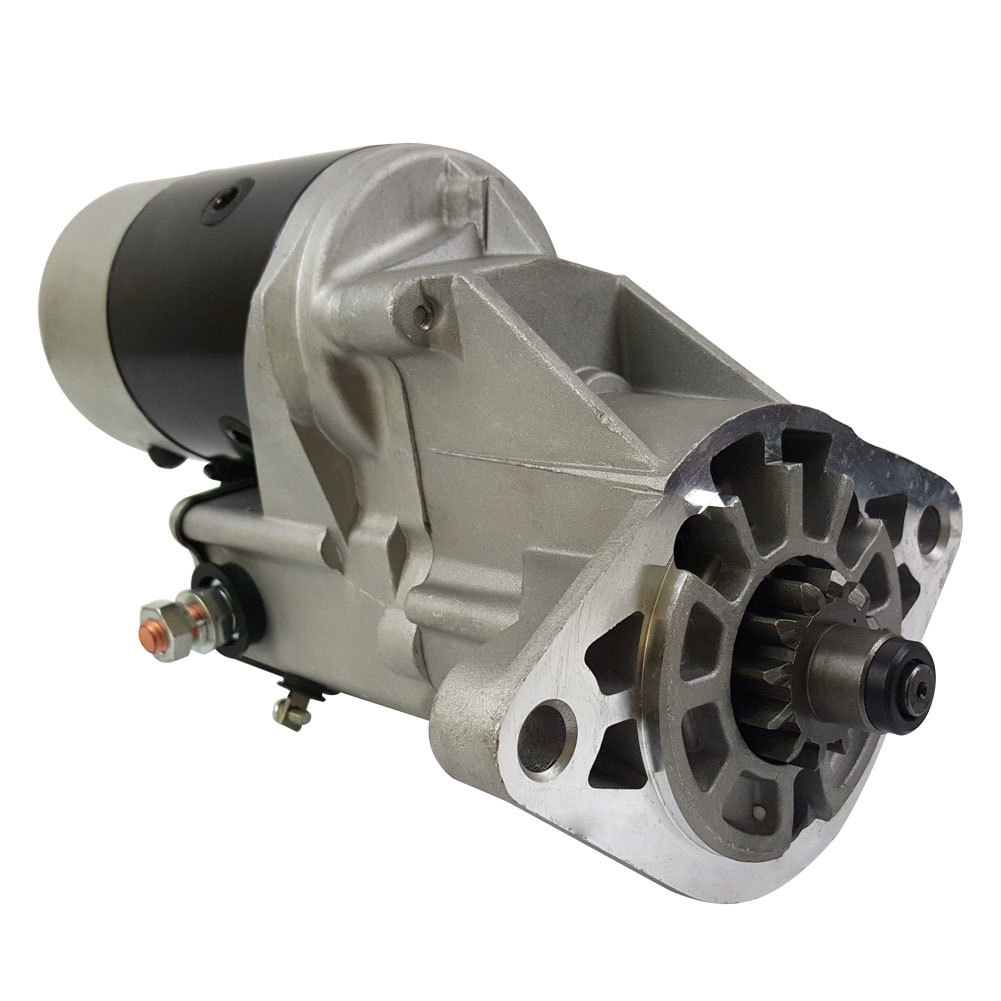

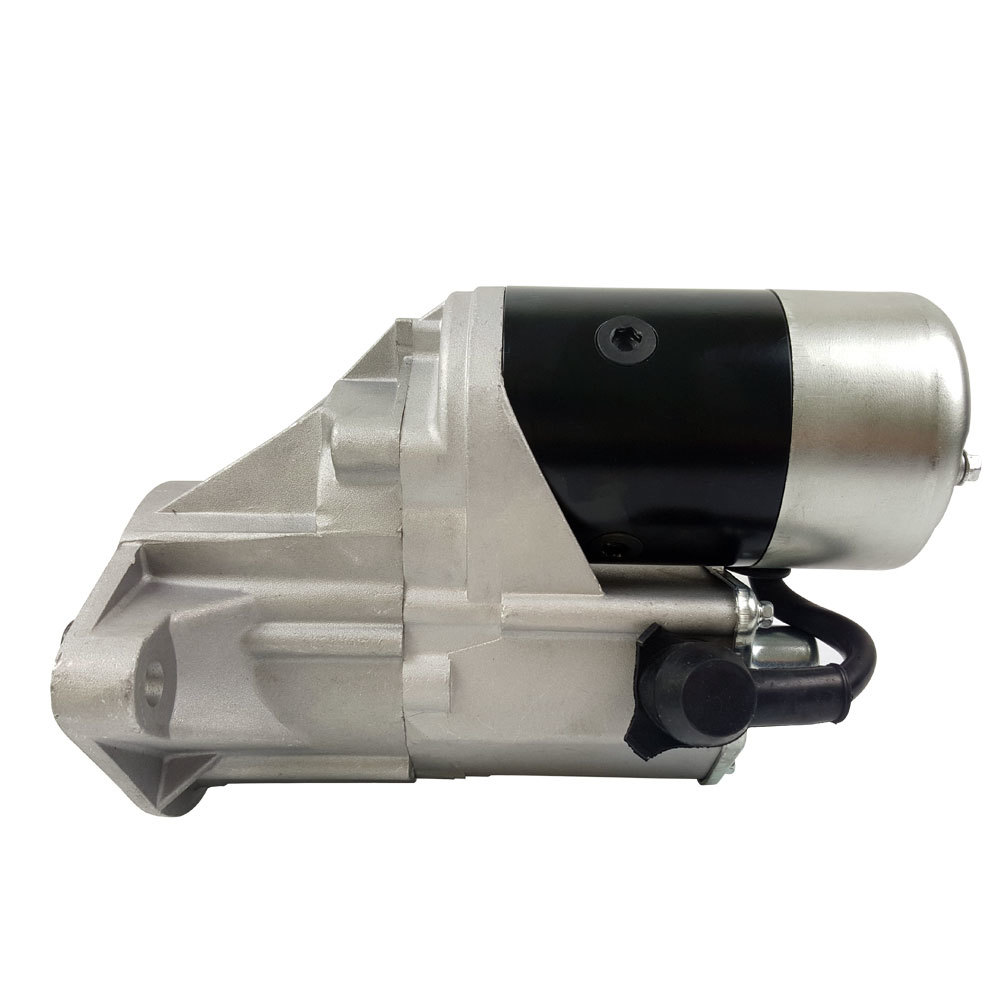

12V, 2.5KW, 12T, CW, 6Cyl. Diesel

Suit:
Fit For Toyota
Fit For Landcruiser HZJ70, HZJ75 eng.1HZ, 4.2L 90-99;
Fit For Landcruiser PZJ73, PZJ75 5Cyl. eng.1PZ 3.5L 90-91;
Fit For Landcuiser HZJ73 eng.1HZ 4.2L 90-91;
Fit For Landcuiser HZJ78R eng.1HZ 6cyl. 4.2L 99-07;
Fit For Landcuiser HZJ79R eng.1HZ 6cyl. 4.2L 99-07;
Fit For Landcruiser HZJ80 eng.1HZ 4.2L 90-98;
Fit For Landcuiser HZJ80 eng.1HZ 6cyl. 4.2L 97-98;
Fit For Landcuiser HZJ105 eng.1HZ 6cyl. 4.2L 98-07.
Fit For Landcuiser HDJ78R eng.1HD-FTE 6cyl. 4.2L 01-07;
Fit For Landcuiser HDJ79R eng.1HD-FTE 6cyl. 4.2L 01-07;
Fit For Landcuiser HDJ80 eng.1HD-T 4.2L 90-98;
Fit For Landcuiser HDJ100 eng.1HD-FTE 4.2L 02-04;

Specifications:
Volts    12V
KiloWatts    2.5KW
Overall Length    295mm
Mounting Hole    13mm
Mt Holes Centre    142mm
Flange Diameter    90mm
Nose Cone Length    38mm
Pinion at Rest    16mm
Field Housing Diameter    90mm
Teeth    12TH
Rotation    CW
Pinon Diameter    45mm

Package:
1* Starter Motor



SKU	SMOTOR-TA006M
Brand	MACHTER AUTOPARTS
Shipping Weight	8.0000kg
Shipping Width	0.160m
Shipping Height	0.160m
Shipping Length	0.280m
Shipping Cubic	0.007168000m3
