Features

The Sloppy Stage 2 Camshaft Is A Cam With A Fairly Aggressive Profile. It Will Have A Nice Lopey Idle And Make Tons Of Power All While Keeping Costs Low. This Cam Is A Great Choice For Those Daily Drivers That Like A Nice Lopey/Choppy Idle. Great For Cars, Trucks, SUV's, Street Rods, And LS Swaps. There Is No Hiding This Cam As Will Will Have A Muscle Car Sounds To It. Everyone Will Take Note Of This Street Warrior. Automatic's Will Perform Best With A 2,600-2,800 Stall Converter.

Specifications

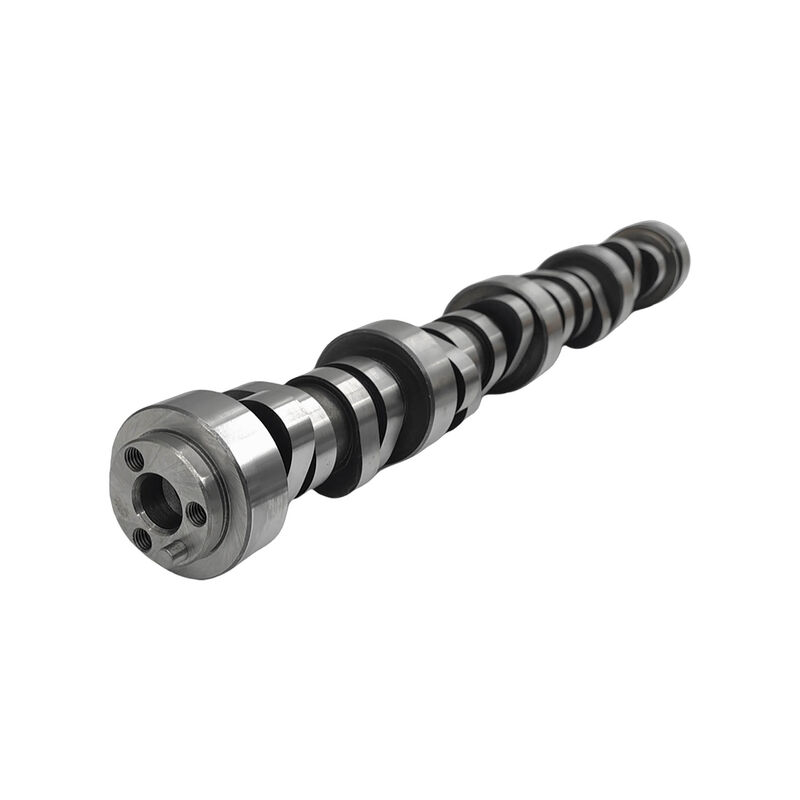

1. Camshaft Compatibility:

For Chevy LS-Series Engine 1997-Up

Not for use with AFM/DOD

Camshaft RPM Range: 2200 to 5400 RPM

Camshaft Intake Valve Lift: .585"

Camshaft Exhaust Valve Lift: .585"

Camshaft Advertised Intake Duration: 283°

Camshaft Advertised Exhaust Duration: 286°

Camshaft Intake Duration at .050": 228°

Camshaft Exhaust Duration at .050": 230°

Camshaft Lobe Separation: 112°

Camshaft Intake Centerline: 108°

Camshaft Cam Gear Attachment: 3-Bolt

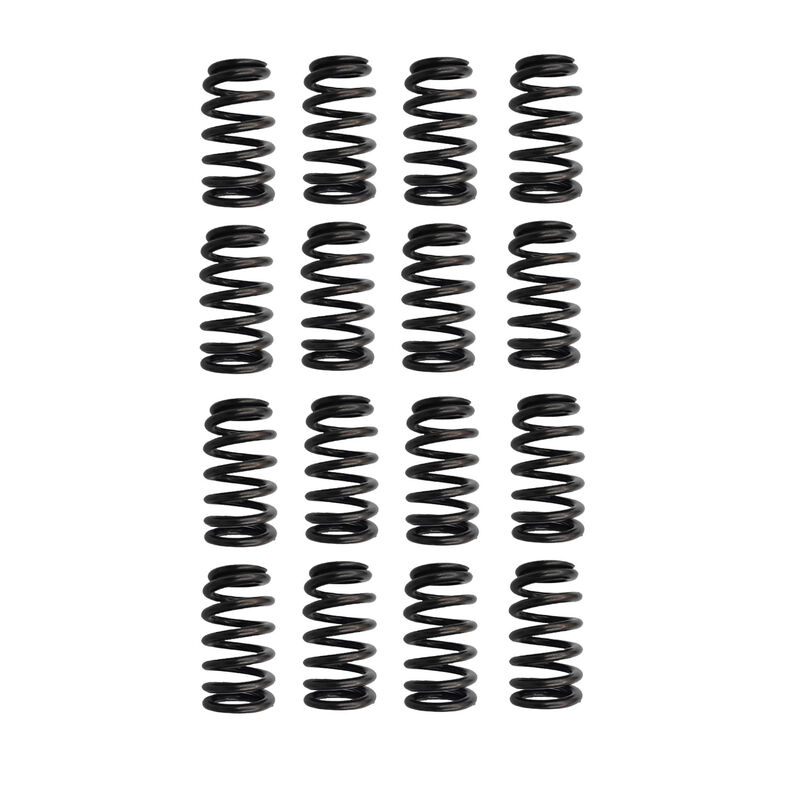

2. Number of Springs Per Valve: Single

Outside Diameter of Outer Spring (in): 1.290 in.

Spring Coil Bind Height (in): 1.140 in.

Damper Spring Included: No

Spring Install Load: 130lbs

Spring Install Height: 1.800"

Spring Open Height: 1.175"

Spring Open Load: 318 lbs

Spring Rate (lbs/in): 313 lbs./in.

Inside Diameter of Outer Spring (in): 0.885 in.

Valve Spring Style: Beehive

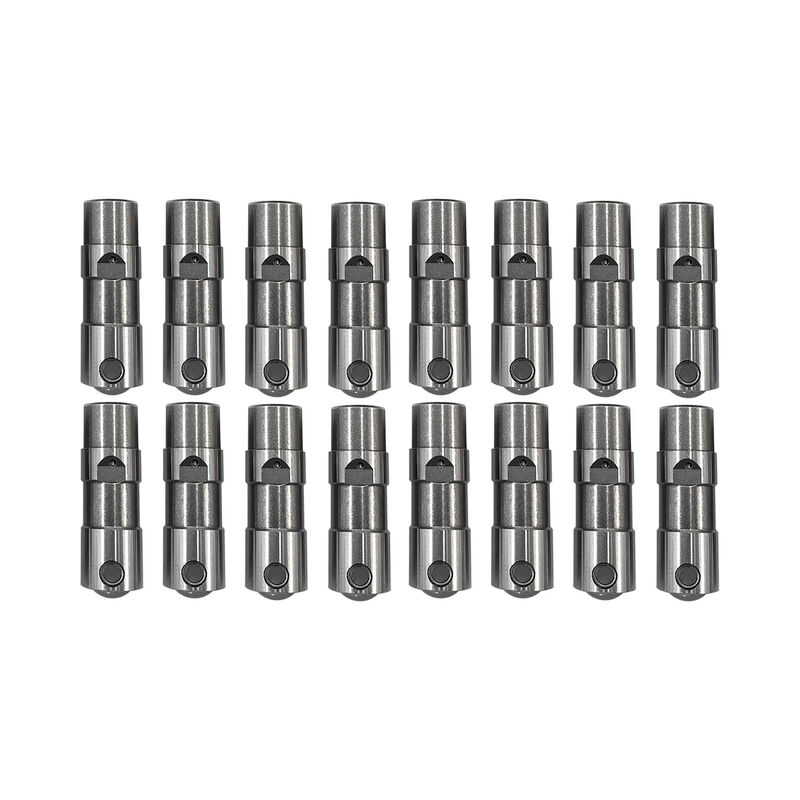

3. Set of 16 Elgin Roller Lifters for 1997-2015 Chevy/GM LS Series Factory Roller applications without Active Fuel Management.


Fitment

Fit For 1999-2012 Trucks/SUVs 4.8L V-8 VIN-V,C,A

Fit For 1999-2007 Trucks/SUVs 5.3L V-8 VIN-T,Z,B

Fit For 1997-2004 5.7L LS1 V-8

Fit For 2001-2005 5.7L LS6 V-8

Fit For 1999-2010 Trucks/SUVs 6.0L V-8 VIN-U,K

Fit For 2005-2009 6.0L LS2 V-8

Fit For 2008-2013 6.2L LS3 V-8; Without AFM

Fit For 2006-2013 7.0L LS7 V-8

Also Fit For Factory Roller 93-97 LT1, and 305-350 Chevy Engines.

*4 putters

5/16" Diameter - 7.400" Length - .080 Wall Thickness

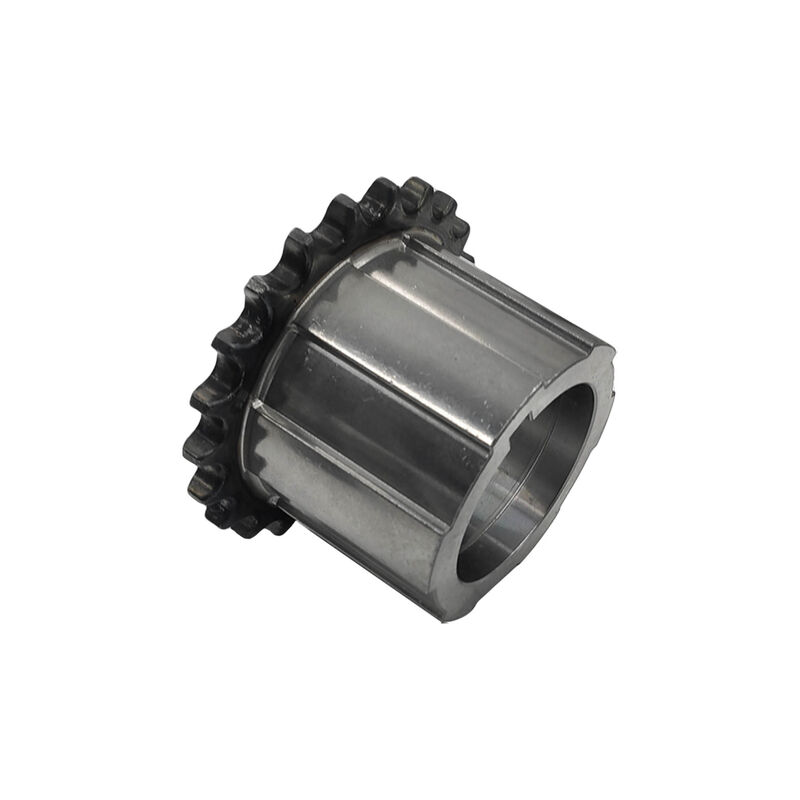

*5 M295(12586665) Oil Pump Timing chain

Package

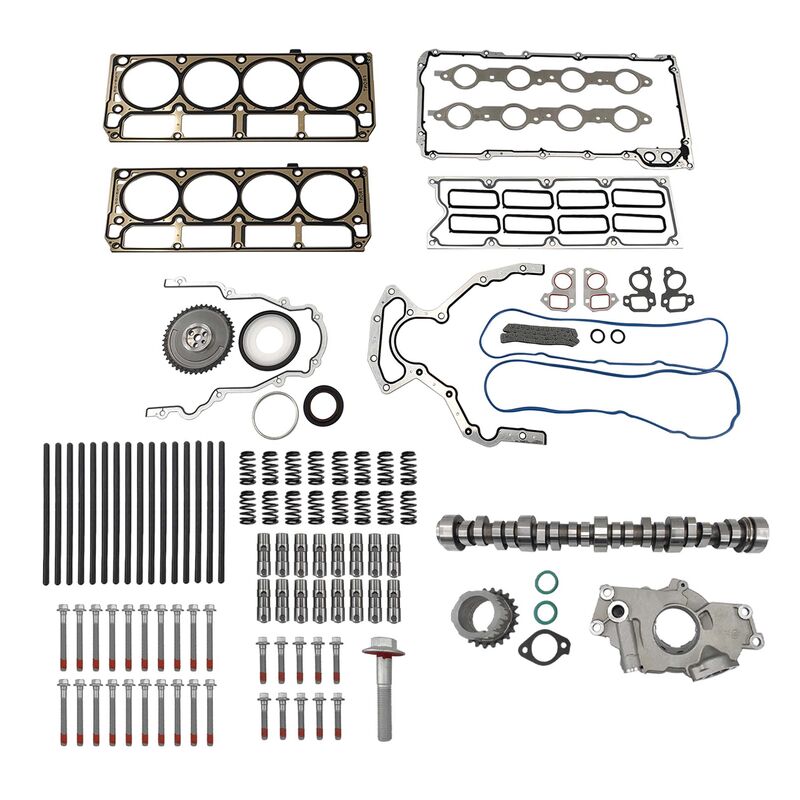

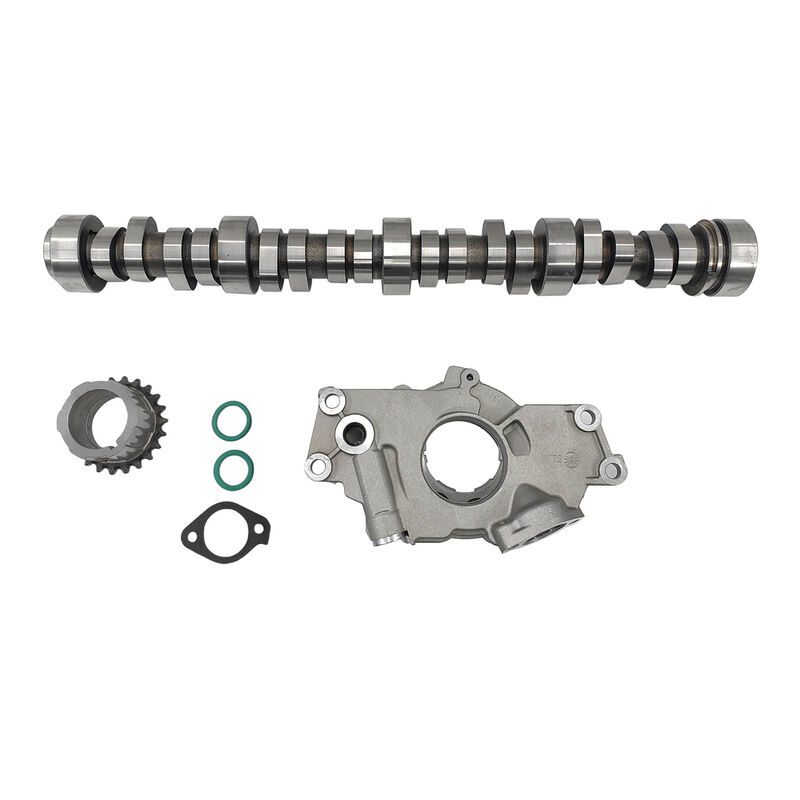

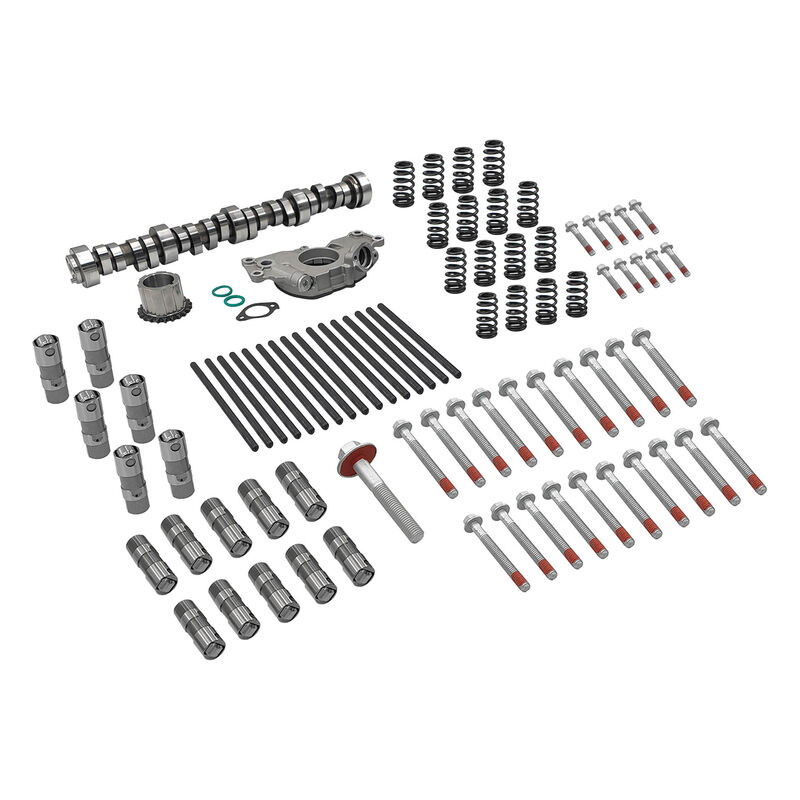

Camshaft + Valve Lifter + Push Rod: Camshaft + Screw Set + Spacer Set With 16 Valve Lifters And 16 Valve Lifters + 16 Putters + Oil Pump + Timing Chain
