Feature

Type：Shock & Spring Assembly

Height Adjustment：25-75mm, Lowering The Center Of Gravity And Enhancing Stance.

Pre-Load Spring：Reduces Shaking.

CNC Aluminum Top Mounts：Lightweight And Strong.

Heavy-Duty Steel Lower Mounts：Durable And Reliable.

Upgraded Spring: Tested Over 600,000 Times For High Tensile Strength.

Rubber Boots：Protect Dampers And Enhance Durability.

Twin-Tube Structure：Excellent Handling For Various Conditions.

Anti-Corrosion：Anodized Aluminum And Powder-Coated Steel.

Professional Testing：Every Part Tested On Professional Machines And By Racers.

Clean Room Assembly：Ensures Accuracy And Reliability.

Specification

Location：Rear, Left, Right

Rear Top Mount：OE Top Mounts Required

Damping Adjustable：Available, 24 Levels Of Rebound Damping Force

Camber Adjustable Not Available

Rear Lowering：25-75mm

Spring Rate Rear：8 kg/mm (448 lbs/in)

Spring Length Rear：185mm

Coilover Overall Length Rear：405mm-445mm

Color：Green Body With Yellow Spring

Shock Structure Type：Twin-Tube

Note

1. This Coilovers Kit Is Designed To Reduce Your Vehicle's Ride Height, Deviating From The Original Factory Settings.

2. All Modifications Should Be Performed By Certified Mechanics And Must Adhere To Local Modification Regulations.

3. Ensure That All Components Are Securely Fastened With The Appropriate Torque Specifications (Refer To The Vehicle Service Manual) Both Before And After Installation. Loose Hardware Can Lead To Noise Issues; Therefore, It’s Crucial To Check And Retighten As Necessary To Prevent Potential Problems.

4. The Use Of An Impact Wrench During Installation Is Strictly Prohibited As It May Cause Loosening Or Damage To The Components.

5. After Installation, Inspect The Clearance Between The Tires And Suspension Components. The Minimum Clearance Should Be 4mm; If Not, Wheel Spacers May Be Required. Note That This Check Is Especially Important For Vehicles Equipped With Torsion Beam Trailing Arm Axles.

6. We Recommend Regular Maintenance For Your Coilovers, Such As Applying Wd40 Every 3-4 Months To Keep Them Functioning Smoothly And Cleanly, Which Will Help Extend Their Lifespan.

Fitment

Fit For Holden Commodore VE Sedan 2006-2013

Fit For Holden Commodore VE Wagon 2008-2013

Fit For Holden Commodore VE Ute 2007-2013

Package

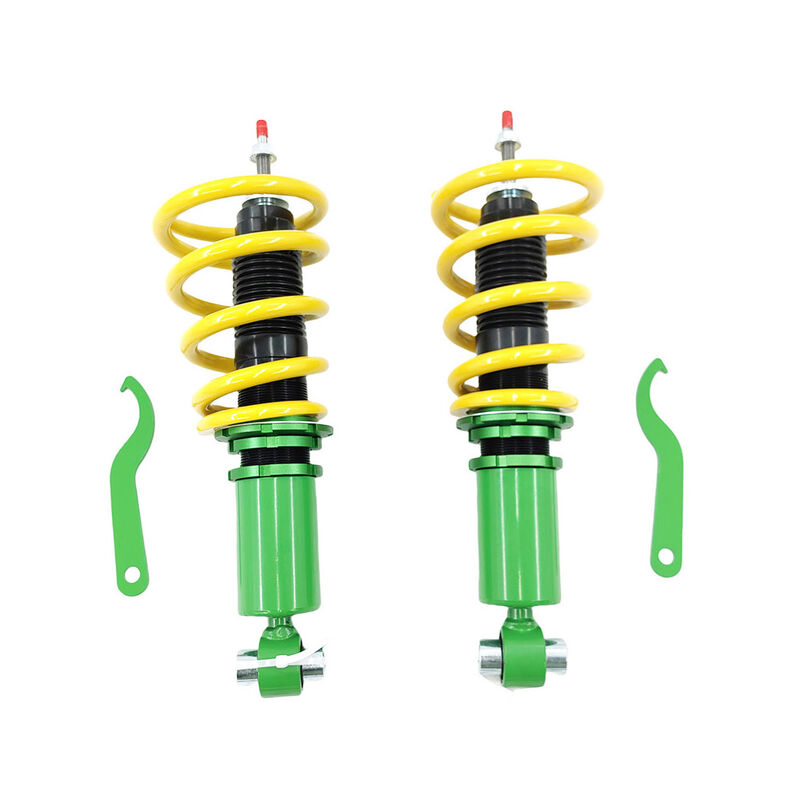

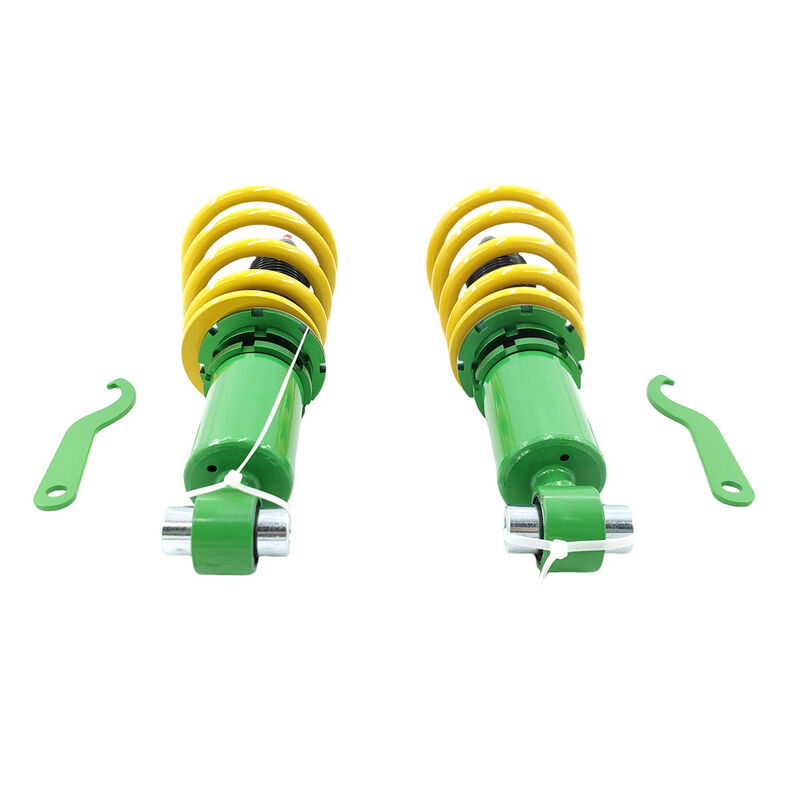

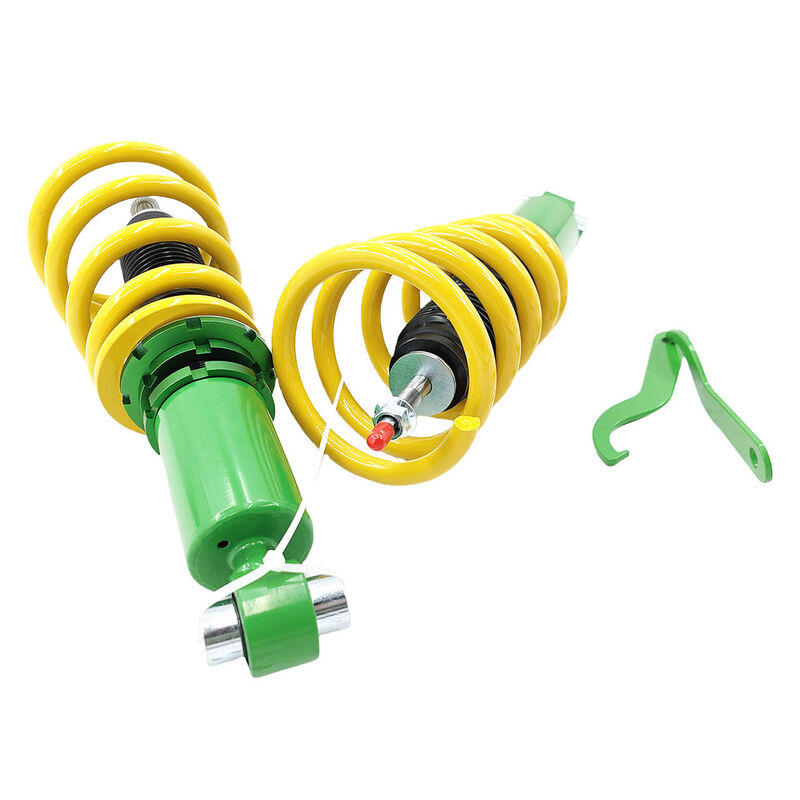

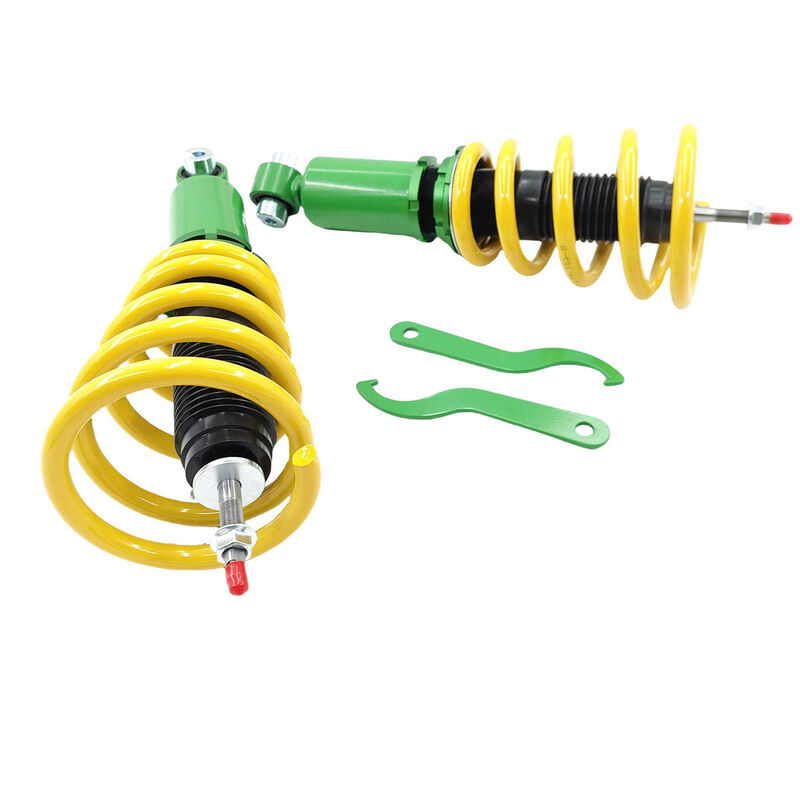

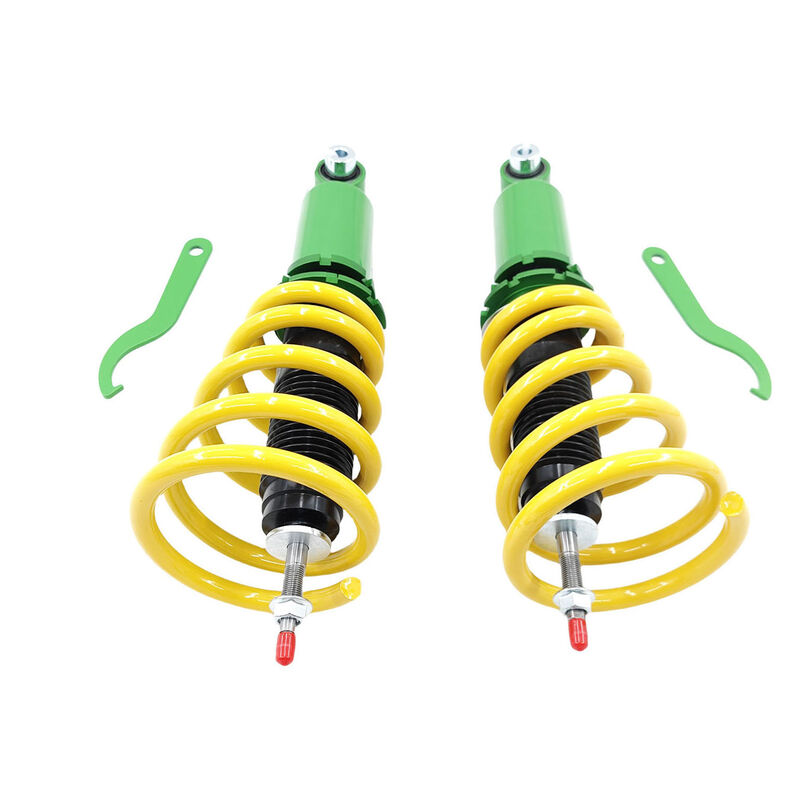

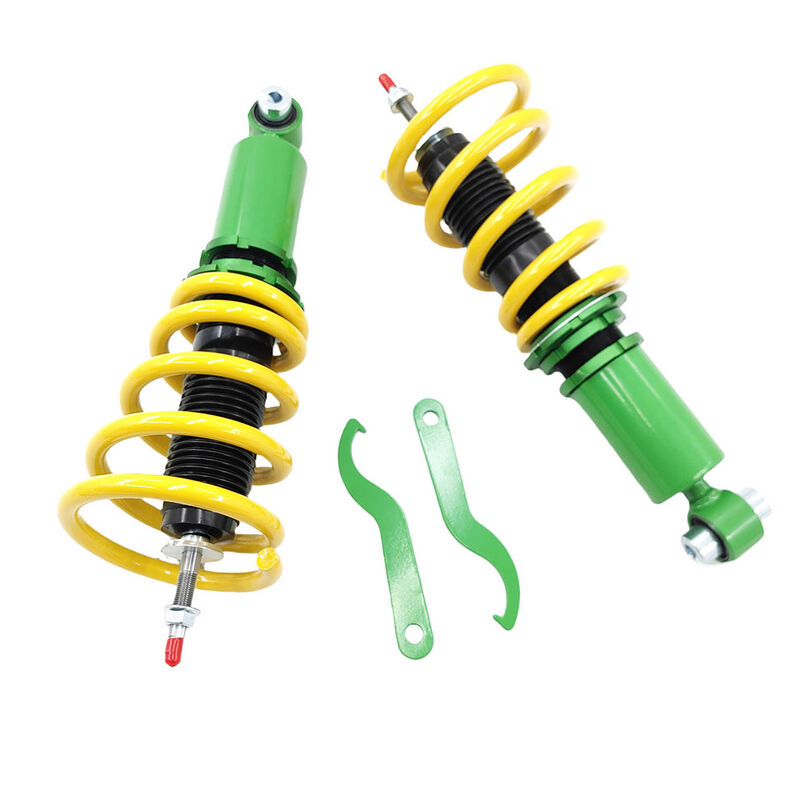

1 Set x Rear Coilover Spring Kit

1 Pair x Wrenches For Height Adjustment

Note: No Top Mounts Included.
