Specification

Venturi (Choke Tube)：28mm

Auxiliary Venturi：7.3mm

Air Correction Jets：110

Main Jet：185

Idle Jet：120

Needle valve:3.3

Material：Aluminum

Manufacture Part Number：750 CFM

Interchange Part Number：7026202, 7026203, 7026210, 7027202, 7027203

Other Part Number：7027213, 7040007, 7040021, 7046904, 7047207, 7047303, 7047305, 7047306

Barrel Count：4

OEM Part Numbers

7026202 7026203 7026210 7027202 7027203

7027212 7027213 7040007 7040021 7046904

7047207 7047303 7047305 7047306 7047307

7047316 7047319 17054236 17054709 170549

Fitment

Fit For V8 Chevy Big Block Mark IV 6.6L / 402 1970-1972

Fit For V8 Chevy Small Block Gen I 5.7L / 350 1967-1973

Fit For V8 Chevy Big Block Mark IV 6.5L / 396 Street 1966-1970

Fit For V8 Chevy Small Block Gen I 5.4L / 327 Street 1966-1969

Fit For V8 Chevy Big Block Mark IV 7.0L / 427 Street 1966-1969

Fit For V8 Chevy Big Block Mark IV 7.4L / 454 1970-1973

Fit For V8 Chevy Small Block Gen I 6.6L / 400 1970-1973

Fit For GMC V8 Chevy Small Block Gen I 5.4L / 327 1967-1968

Fit For GMC V8 Chevy Big Block Mark IV 6.5L / 396 1968-1969

Fit For GMC V8 Chevy Small Block Gen 5.7L / 350 1969-1973

Fit For GMC V8 Chevy Big Block Mark IV 7.4L / 454 1970-1973

Fit For GMC V8 Chevy Big Block Mark IV 6.6L / 402 1971-1972

Note

Manual Choke 1901-GG 4-BBL, Replace Corvettes 1975-1979 750 CFM Vacuum Secondary Durable

It Is A R4-4MV The 4MV Is A Divorce Choke (Remote Choke) Rochester Quadrajet 4 Barrel Carburetor Which Means The Choke Is

Located On The Intake Manifold Connected To The Carburetor With A Choke Rod .

Directly Replacement 4-BBL Carburetor Replace For 1901-GG Rochester Quadrajet Carburetor- 4MV - 1966-1973,1975-1979

Corvettes,1968-1973 Chevy/GMC Trucks Part Number 1901R.

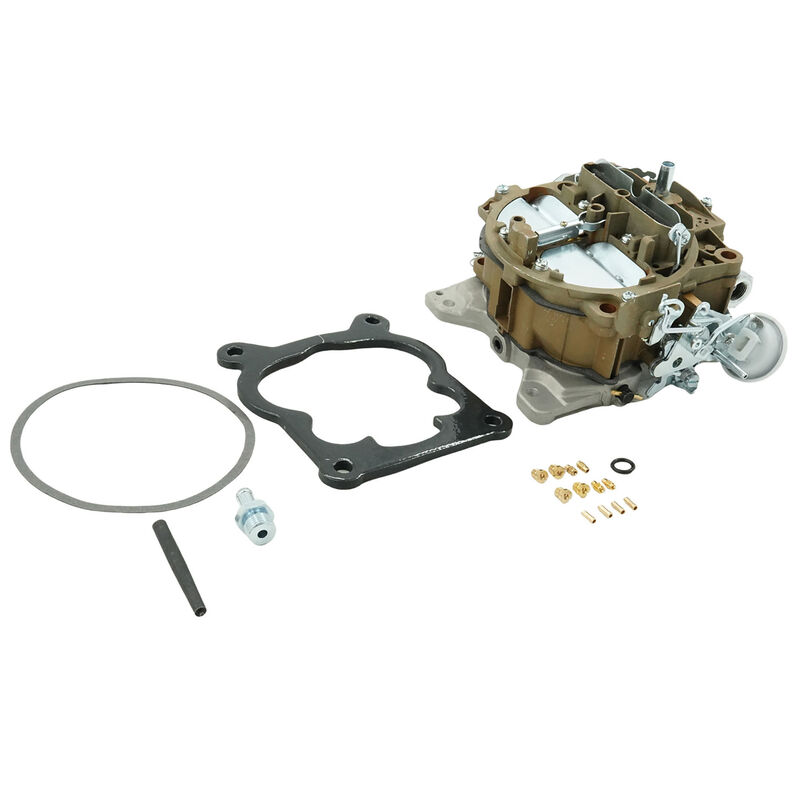

Package

1 x Carburetor

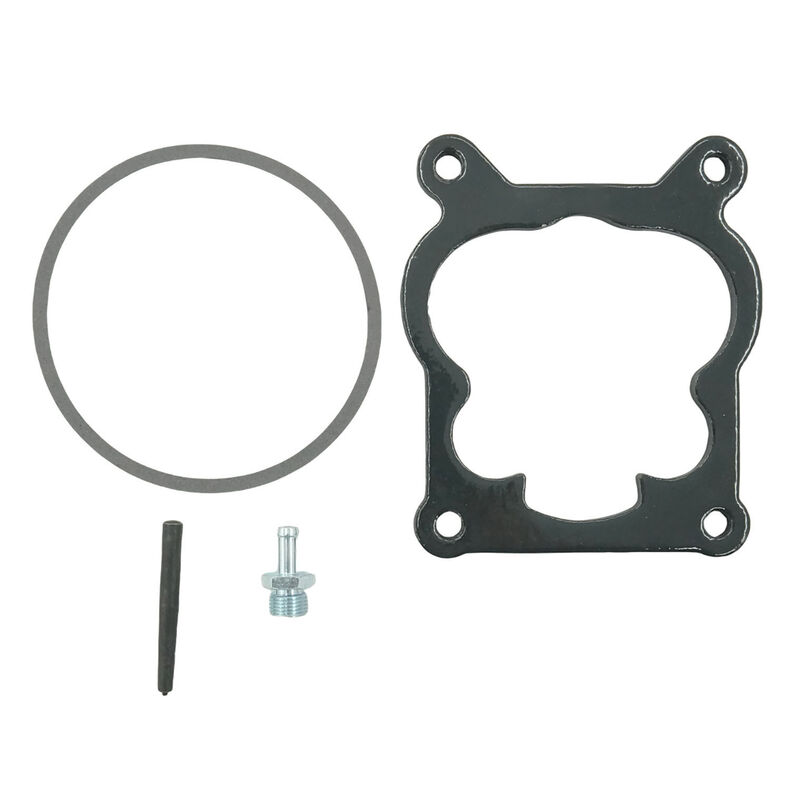

1 x Flange Gaskets

1 x Air Filter Gaskets

1 x Tool For Pushing Plug

4 x Plugs

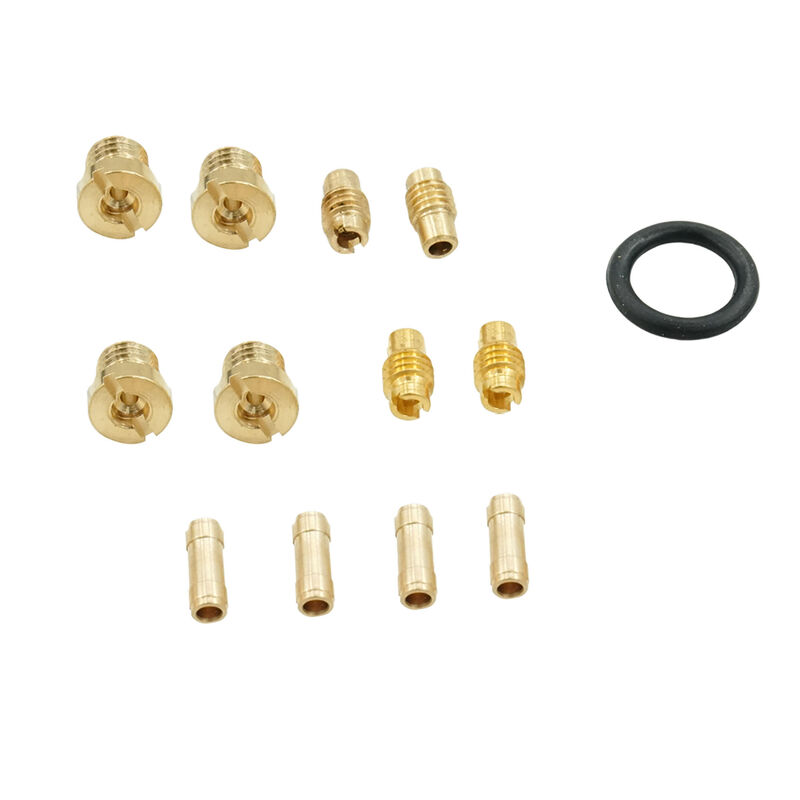

8 x Jets
