Specification

Voltage：230V, 1PH

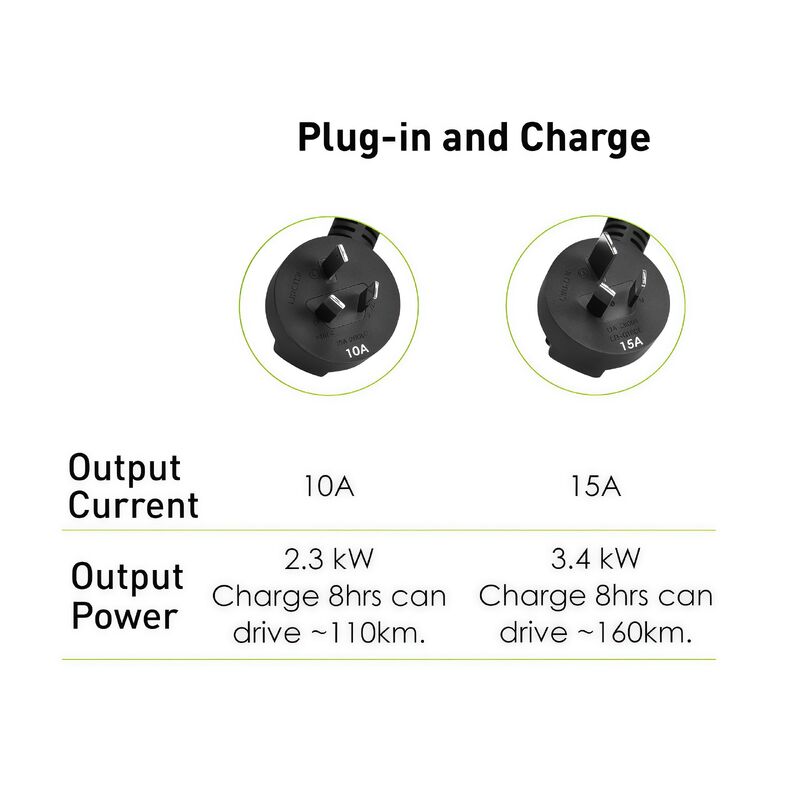

Max. Current：10 A 15 A

Max. Charging Power：2.3 kW 3.4 kW

Grid Frequency：50/60 Hz

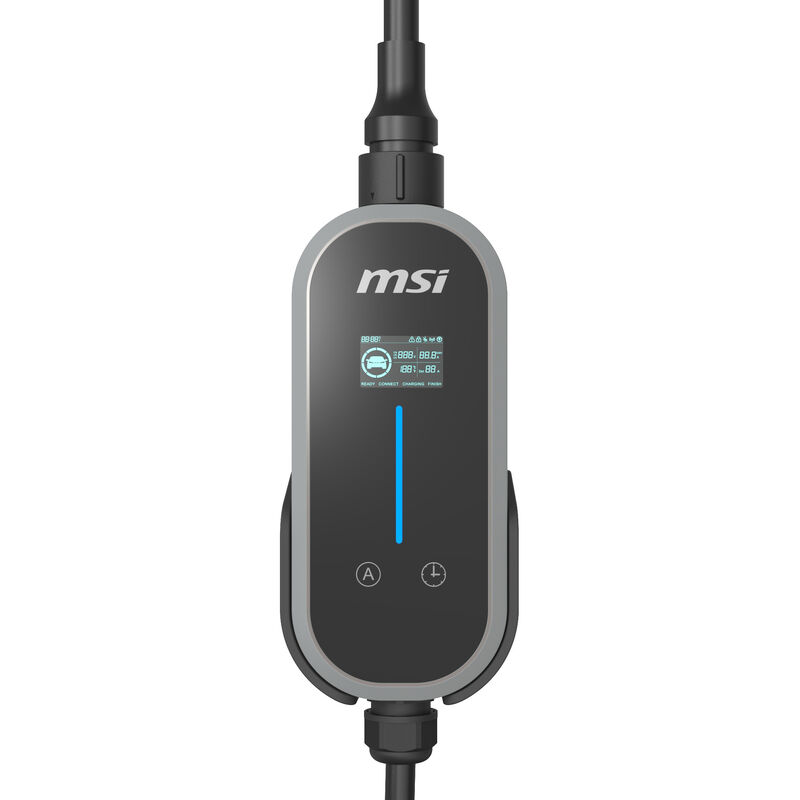

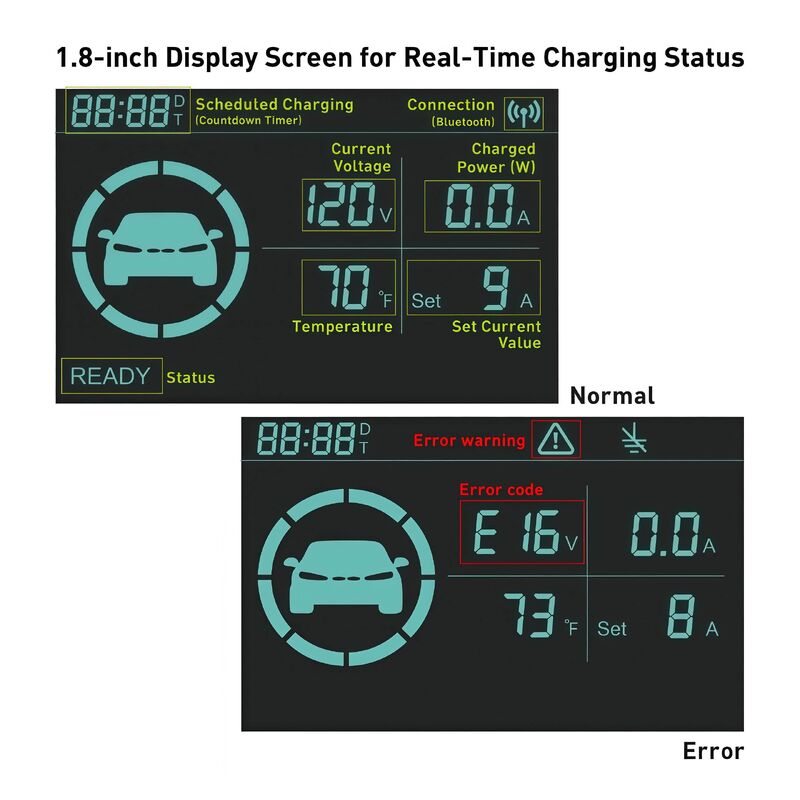

Display：1.8 inch LCD

Dimension：29.8 x 10.6 x 5.3 cm

Weight：4.2 kg

Communication：Bluetooth

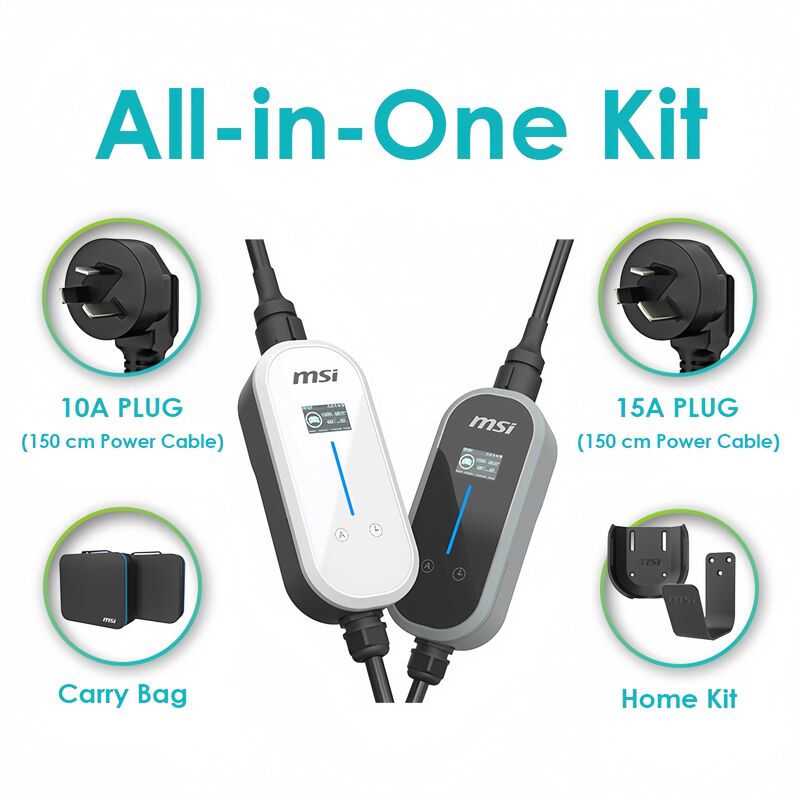

AC in Industrial / Household sockets

Charging Cable Type：Type 2

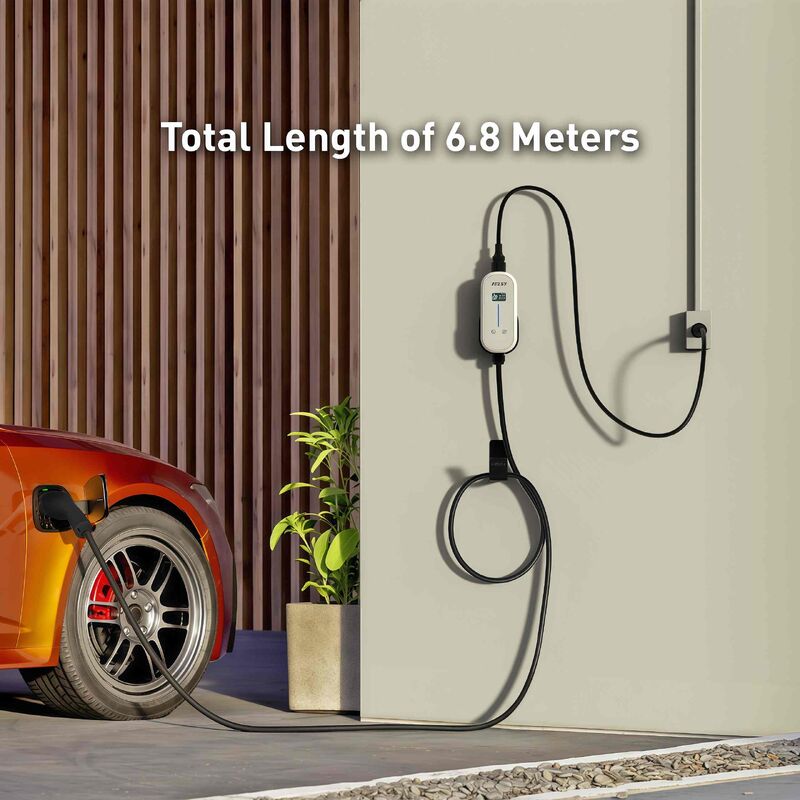

Cable Length：5m

EMS CE Mark (EU)

EMI IEC

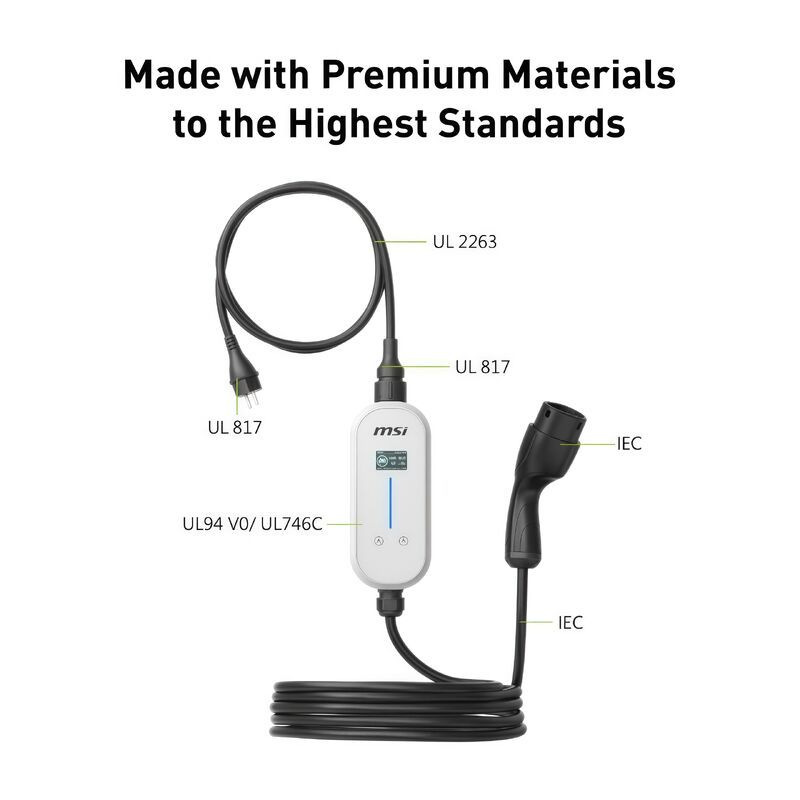

Safety CB, IEC, RCM

RF EU, RCM

Electrical Protection

Under Voltage Protection, Over Voltage Protection, Over Load Protection, Over Temp. Protection, Ground

Protection, Leakage Protection

Enclosure Type IP66

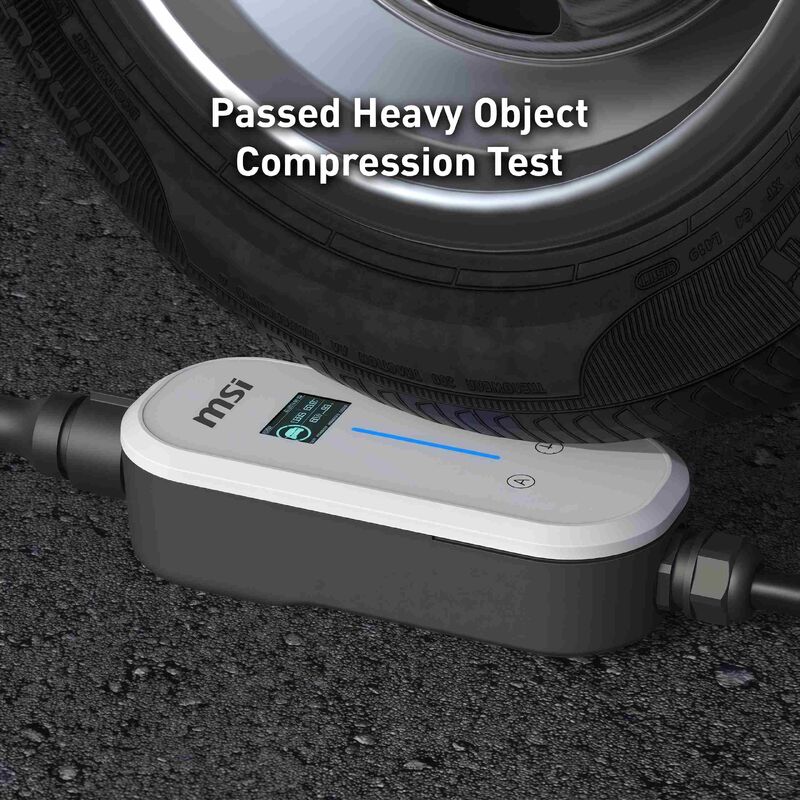

Run Over Test 1.5T

Working Humidity 5 % ~ 95 % RH

Working Altitude ＜2000 m

Operating Temp. -30℃ ~ +50℃（-22℉~+122℉）
