Specifications

Wheel Flange Outer Diameter: 139mm

5 Stud PCD: M12 x 1.5 114.3mm

Wheel Pilot Diameter: 67mm

Brake Pilot Diameter: 69mm

Rotor Retaining Screw Holes: 2 @ M6 x 1.0 114.3mm

Flange Offset: 53.4mm

Hub Pilot Diameter: 91.9mm

Mounting Bolt Hole 4 @ M12 x 1.25

Spline Quantity: 30 Teeth

Fitment

Fit For Kia Sportage NQ 1.6L G4FP G4FT 2.0L G4NL FWD AWD 09/2021 - ON
Includes Sub-models LX, LX PLUS, S, SX, SX+, DELUXE, GT-LINE, X-LINE, URBAN DELUXE

Fit For Hyundai Tucson NX 2.0L G4NL FWD 02/2021 - ON
Includes Sub-models ELITE, ELITE N LINE, HIGHLANDER, HIGHLANDER N LINE

Fit For Hyundai Tucson NX 1.6L G4PF AWD DCT 02/2021 - ON
Includes Sub-models ELITE, ELITE N LINE, HIGHLANDER, HIGHLANDER N LINE

Package

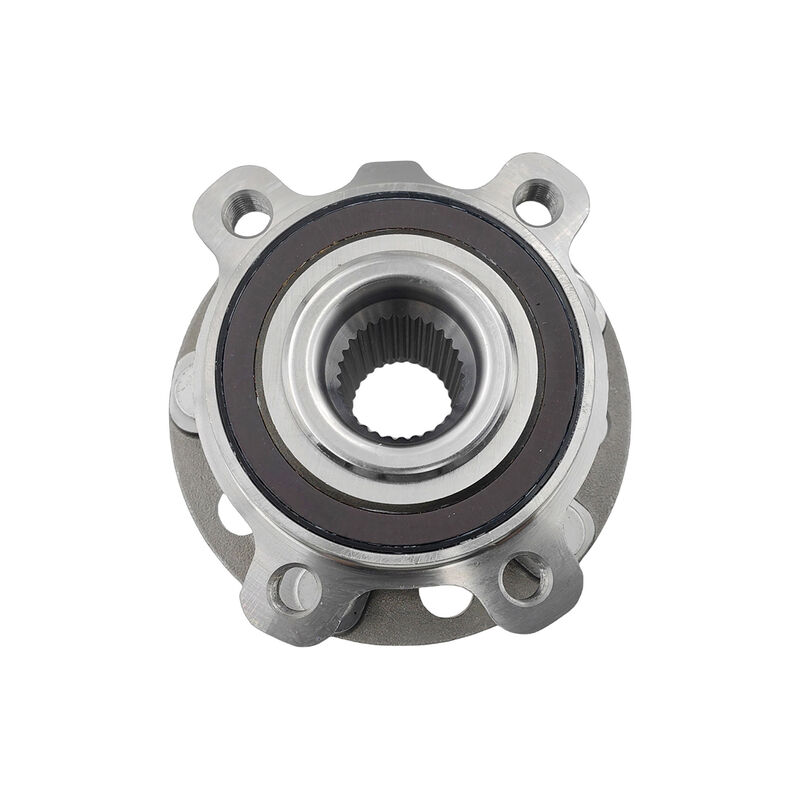

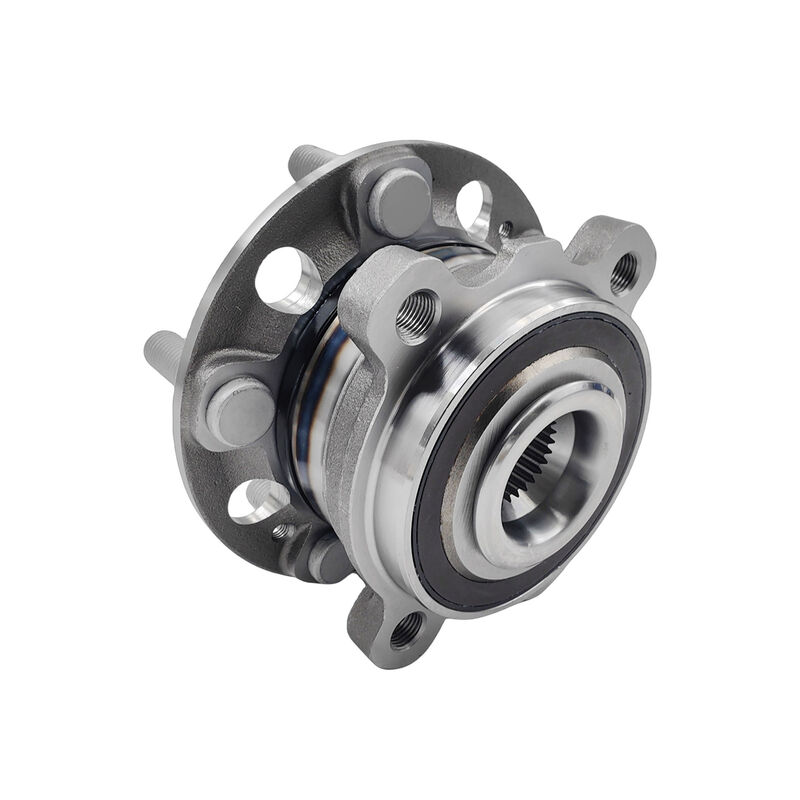

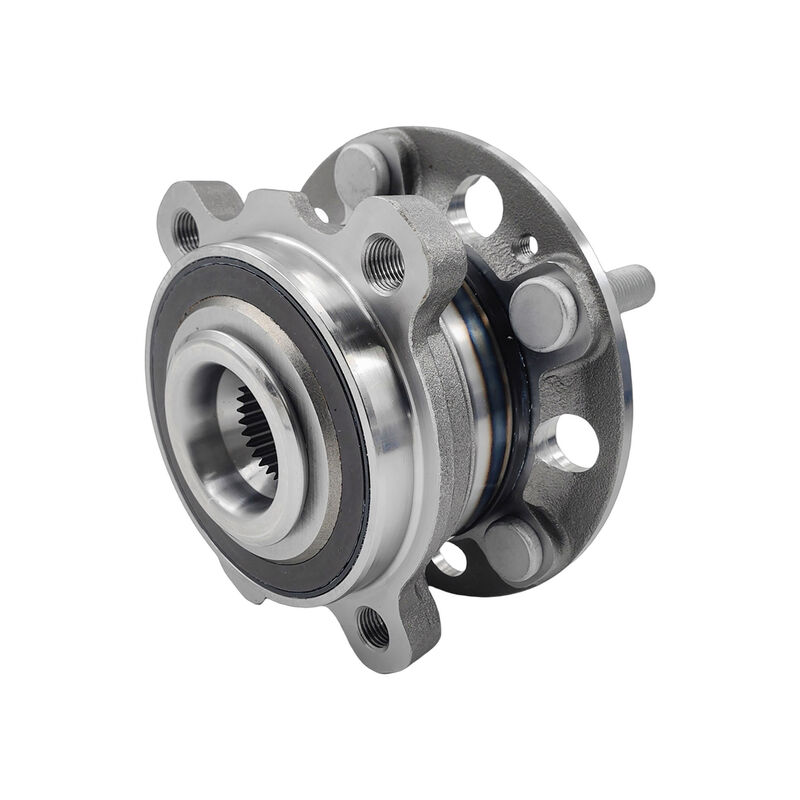

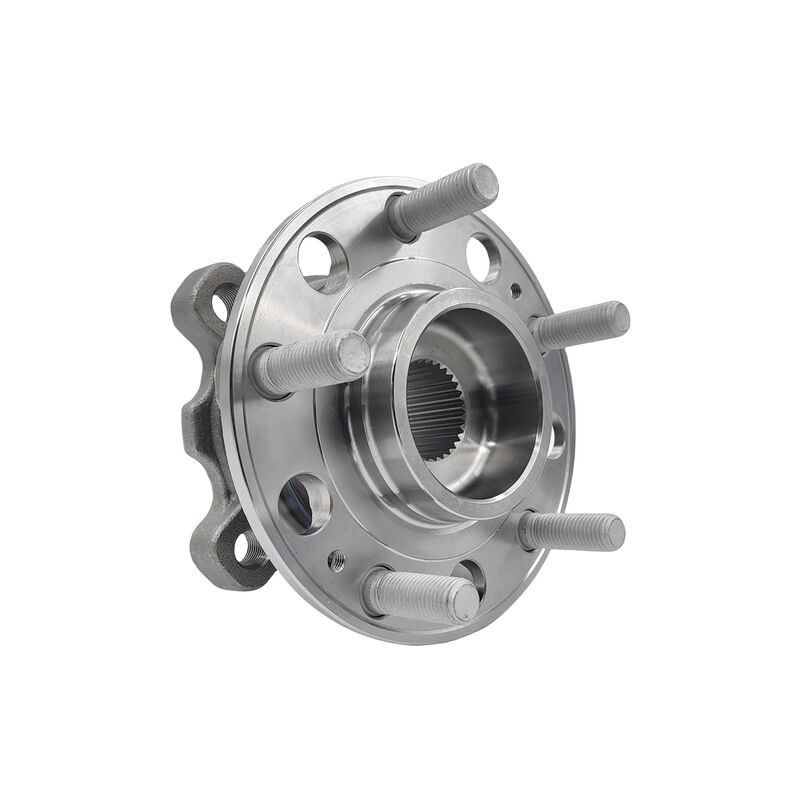

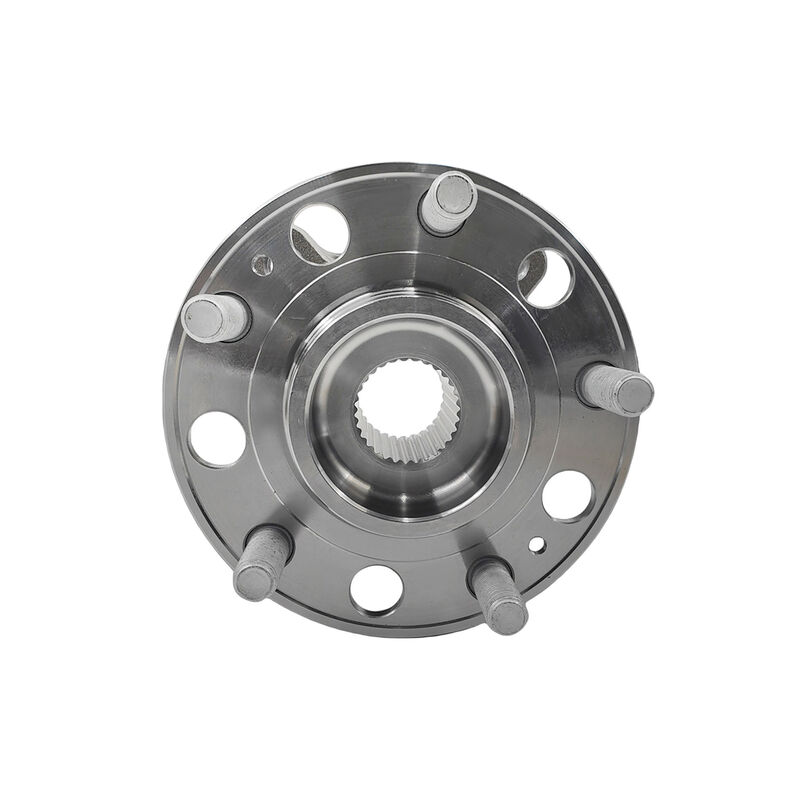

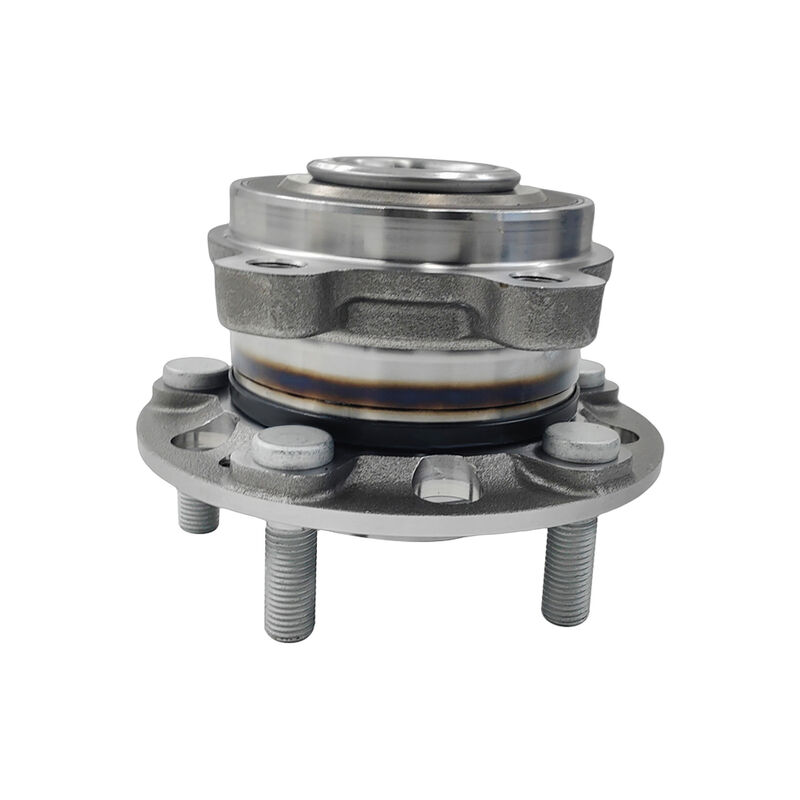

1 x Front Wheel Bearing Hub Assembly
