Product Code: WH-HY010-1PCS

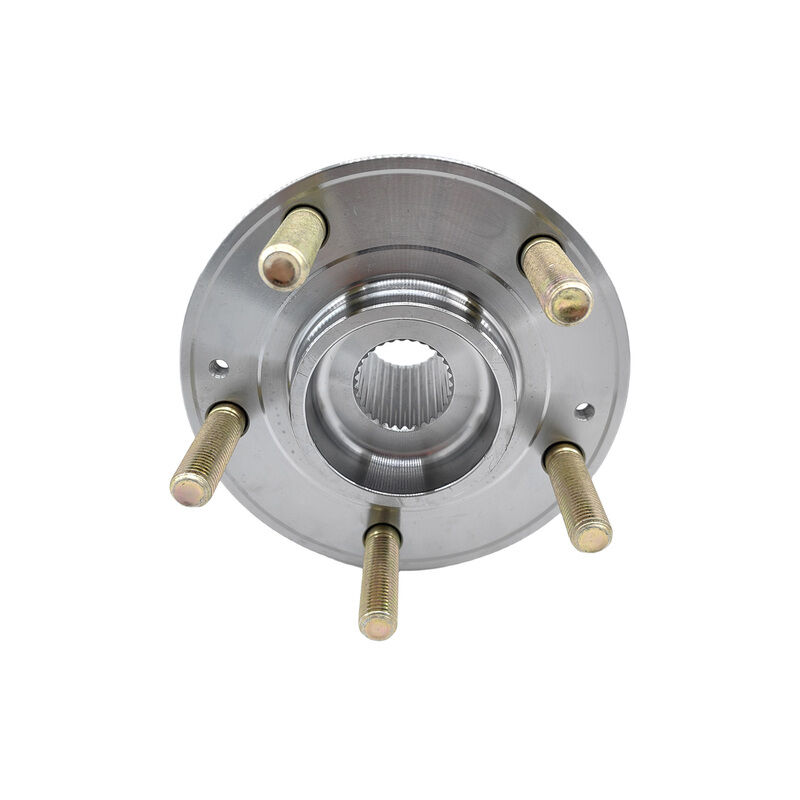

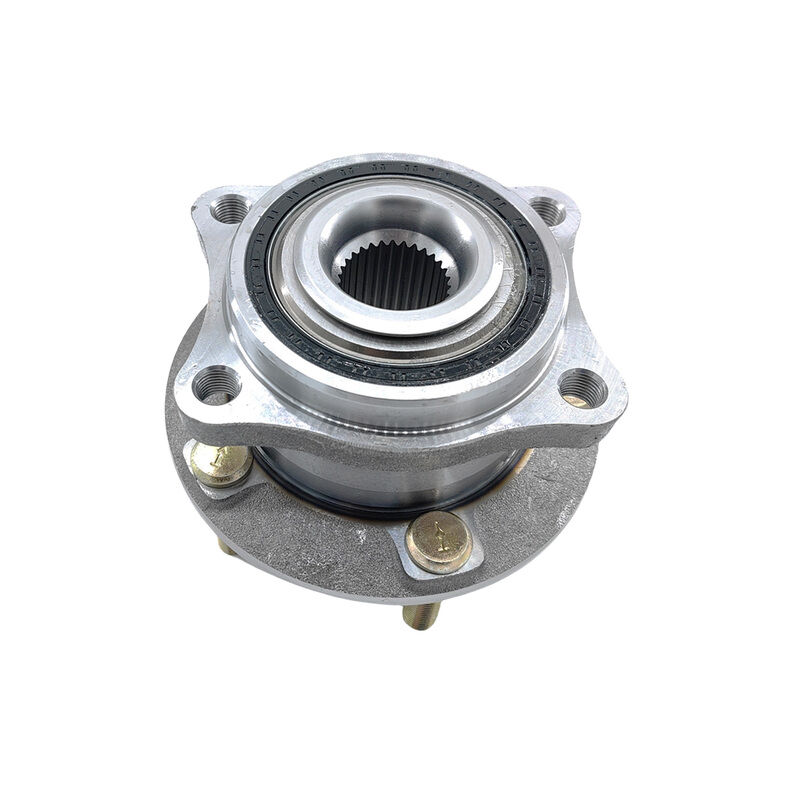

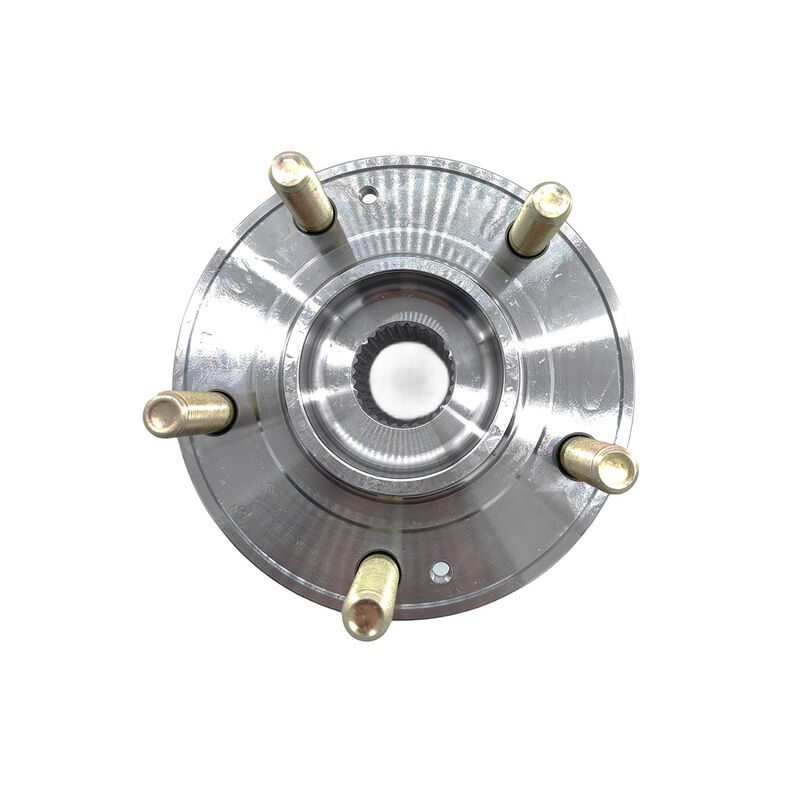

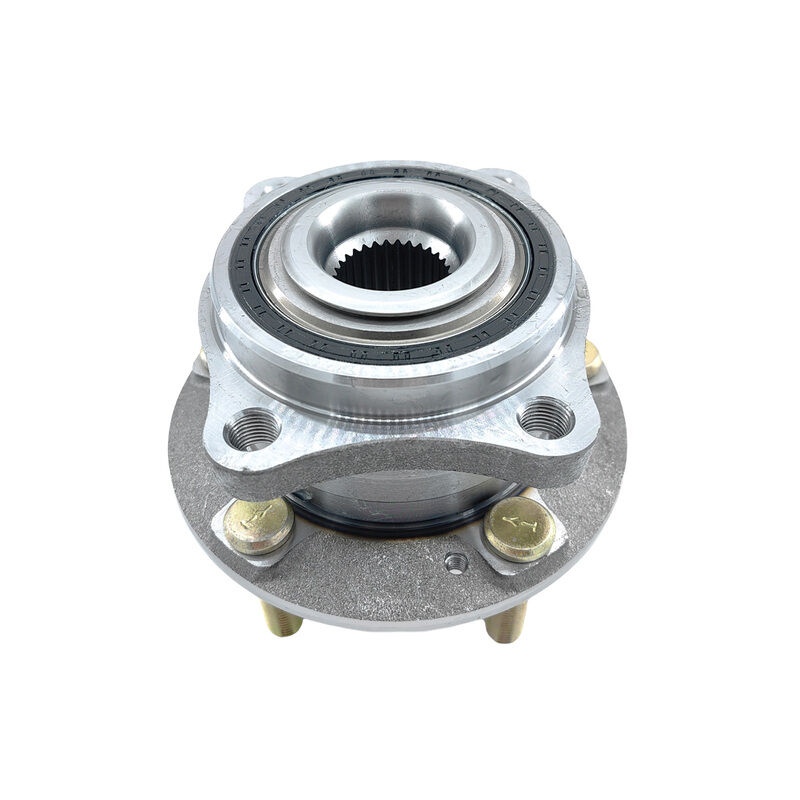

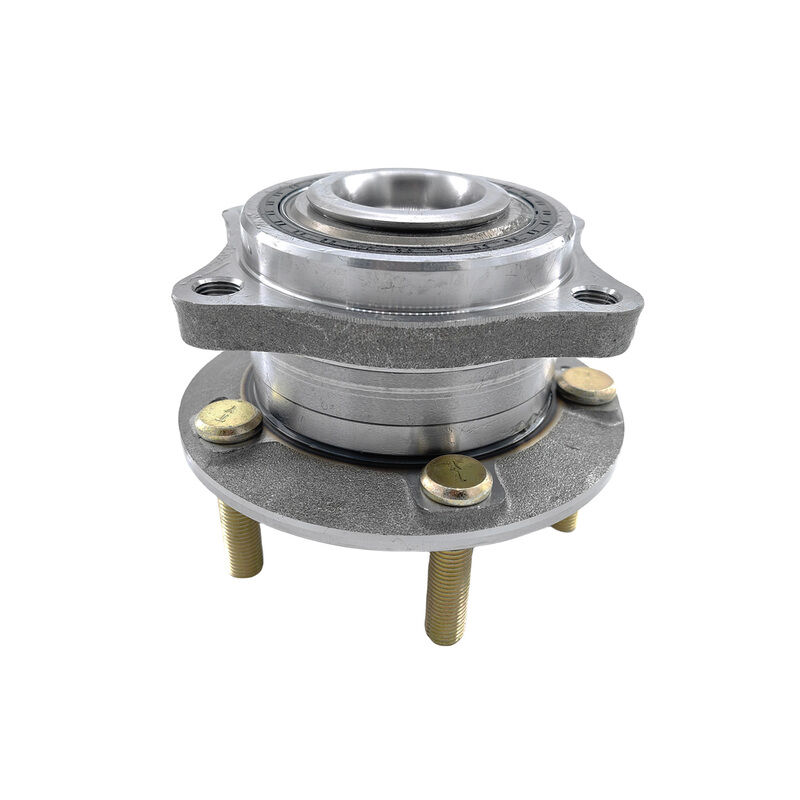

1 x Front/Rear Wheel Bearing Hub Fit For Hyundai Genesis DH Santa Fe CM DM Kia Sorento UM XM
Product Code: WH-HY010-1PCS
FIND YOUR VEHICLE
FIND YOUR VEHICLE
Product Code: WH-HY010-1PCS
Product Code: WH-HY010-1PCS
Specification
Spline Quantity : 30
Flange Offset (MM) : 53.4
Flange Diameter (MM) : 139
Flange Bolt Hole Quantity : 4
Wheel Pilot Diameter (MM) : 67
Brake Pilot Diameter (MM) : 69
Wheel Stud Quantity : 5
Hub Pilot Diameter (MM) : 92
Flange Shape : MODIFIED
Anti-Lock Brake Sensor Included : No
Bolt Circle Diameter (MM) : 114.3
Bolt Circle Diameter (IN) : 4.5
Fitment
For Front
Fit For Hyundai Tucson TL TLE 1.6L 2.0L FWD 2015- 2021
Fit For Hyundai Santa Fe DM CM 2.2L 2.4L 2.7L 3.3L 3.5L FWD 4WD 2015- 2021
Fit For Hyundai Sonata LF 2.0L 2.4L FWD 2014- 2020
Fit For Kia Sorento UM XM 2.2L 2.4L 3.5L AWD FWD 2009 - 2020
For Rear
Fit For Hyundai Genesis DH 3.8L RWD 11/2014-08/2017
Fit For Kia Sorrento UM 2.2L AWD 06/2015-06/2020
Fit For Kia Sorrento XM 2.2L AWD 10/2009-05/2015
Fit For Hyundai Santa Fe CM 2.2L 4WD 11/2006-10/2009
Fit For Hyundai Santa Fe CM 2.2L, 2.7L, 3.3L, 3.5L FWD 4WD 11/2006-08/2012
Fit For Hyundai Santa Fe DM 2.4L, 3.3L AWD 09/2012-11/2018
Fit For Hyundai Santa Fe SM 2.7L 4WD 11/2000-04/2006
Package
1 x Front / Rear Wheel Bearing Hub Assembly (Left Or Right)
SKU | WH-HY010-1PCS |
Brand | MACHTER AUTOPARTS |
Shipping Weight | 3.9500kg |
Shipping Width | 0.160m |
Shipping Height | 0.145m |
Shipping Length | 0.165m |
Shipping Cubic | 0.003828000m3 |
Specification
Spline Quantity : 30
Flange Offset (MM) : 53.4
Flange Diameter (MM) : 139
Flange Bolt Hole Quantity : 4
Wheel Pilot Diameter (MM) : 67
Brake Pilot Diameter (MM) : 69
Wheel Stud Quantity : 5
Hub Pilot Diameter (MM) : 92
Flange Shape : MODIFIED
Anti-Lock Brake Sensor Included : No
Bolt Circle Diameter (MM) : 114.3
Bolt Circle Diameter (IN) : 4.5
Fitment
For Front
Fit For Hyundai Tucson TL TLE 1.6L 2.0L FWD 2015- 2021
Fit For Hyundai Santa Fe DM CM 2.2L 2.4L 2.7L 3.3L 3.5L FWD 4WD 2015- 2021
Fit For Hyundai Sonata LF 2.0L 2.4L FWD 2014- 2020
Fit For Kia Sorento UM XM 2.2L 2.4L 3.5L AWD FWD 2009 - 2020
For Rear
Fit For Hyundai Genesis DH 3.8L RWD 11/2014-08/2017
Fit For Kia Sorrento UM 2.2L AWD 06/2015-06/2020
Fit For Kia Sorrento XM 2.2L AWD 10/2009-05/2015
Fit For Hyundai Santa Fe CM 2.2L 4WD 11/2006-10/2009
Fit For Hyundai Santa Fe CM 2.2L, 2.7L, 3.3L, 3.5L FWD 4WD 11/2006-08/2012
Fit For Hyundai Santa Fe DM 2.4L, 3.3L AWD 09/2012-11/2018
Fit For Hyundai Santa Fe SM 2.7L 4WD 11/2000-04/2006
Package
1 x Front / Rear Wheel Bearing Hub Assembly (Left Or Right)
SKU | WH-HY010-1PCS |
Brand | MACHTER AUTOPARTS |
Shipping Weight | 3.9500kg |
Shipping Width | 0.160m |
Shipping Height | 0.145m |
Shipping Length | 0.165m |
Shipping Cubic | 0.003828000m3 |
