Specifications

Left Hand Side

Length (Compressed): 656mm

Spline Count - Outer/Wheel Side: 30

Spline Count - Inner/Diff Side: 28

ABS Ring Teeth: 52

Right Hand Side

Length (Compressed): 611mm

Spline Count - Outer/Wheel Side: 30

Spline Count - Inner/Diff Side - Female: 26T and 2 Keyway Slots

ABS Ring Teeth: 52

Hub Nut: M22 x 1.5

Fitment

Fit For Hyundai Santa Fe CM SH81W SG81W 2.2L D4EB 4WD MT AT 11/2006 - 10/2009

Includes Sub-models SX CRDi, SLX CRDi, Elite CRDi

Fit For Hyundai Santa Fe CM SH81E SG81E 3.3L G6DB 07/2007 - 11/2008

Includes Sub-models SX, SLX

Package

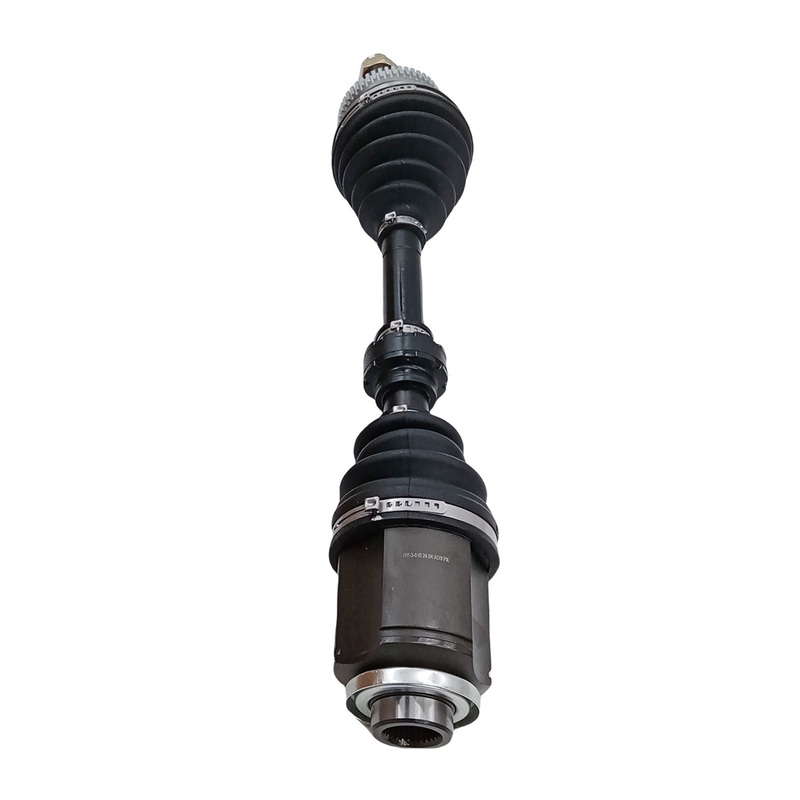

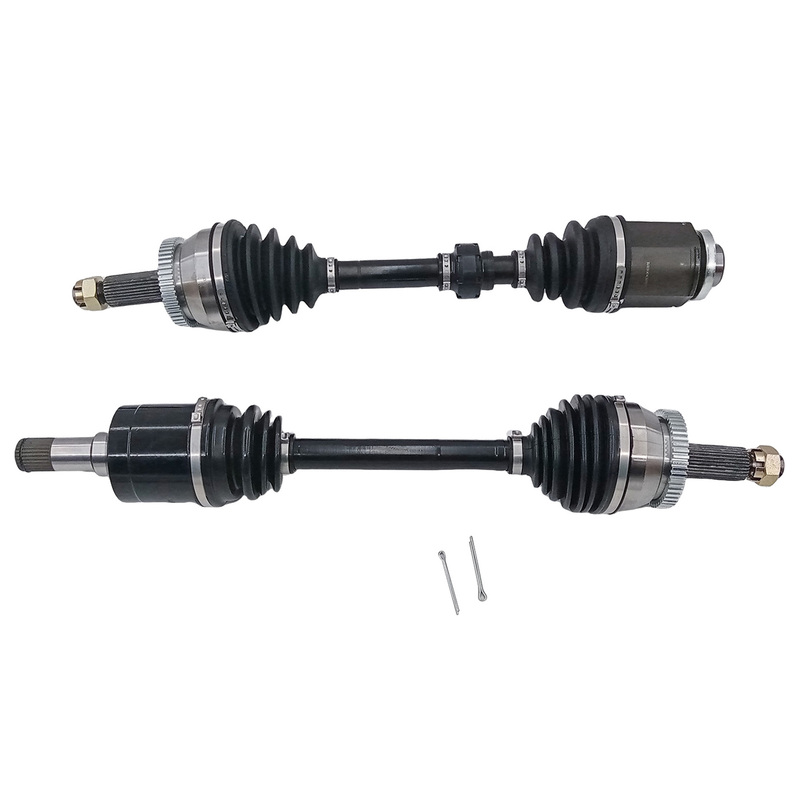

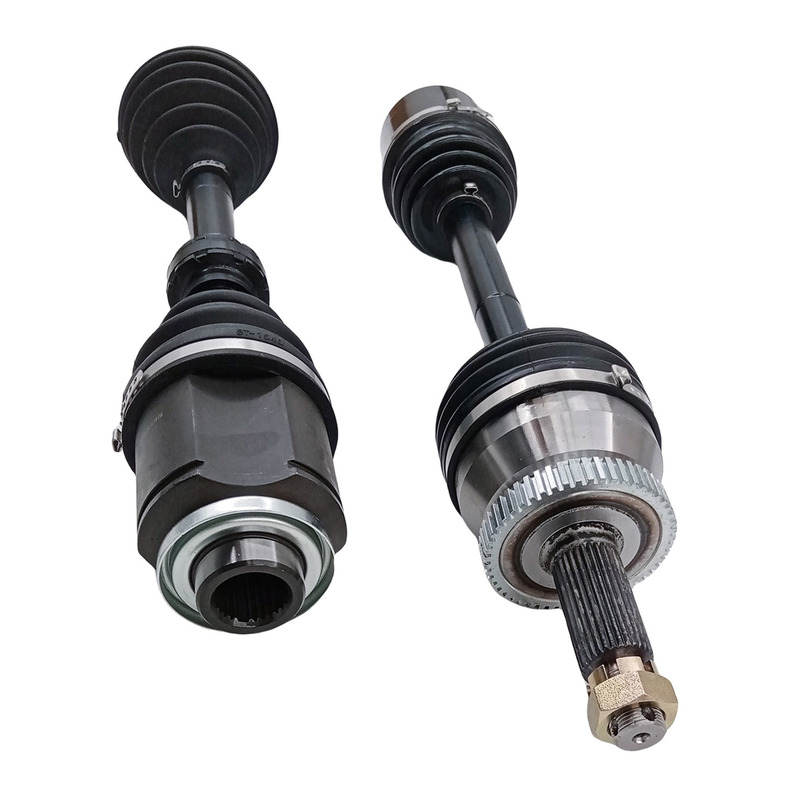

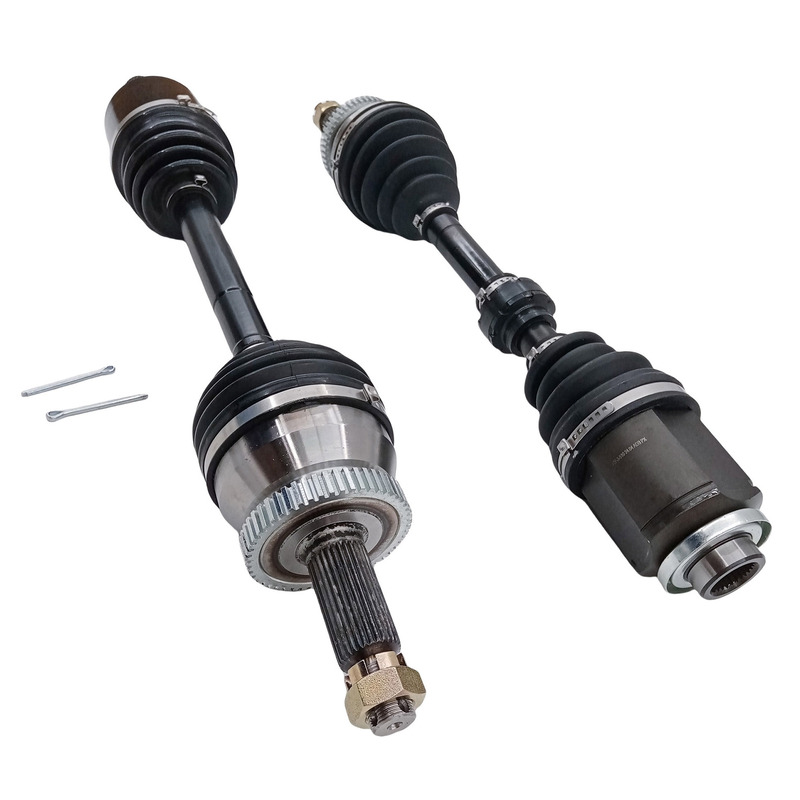

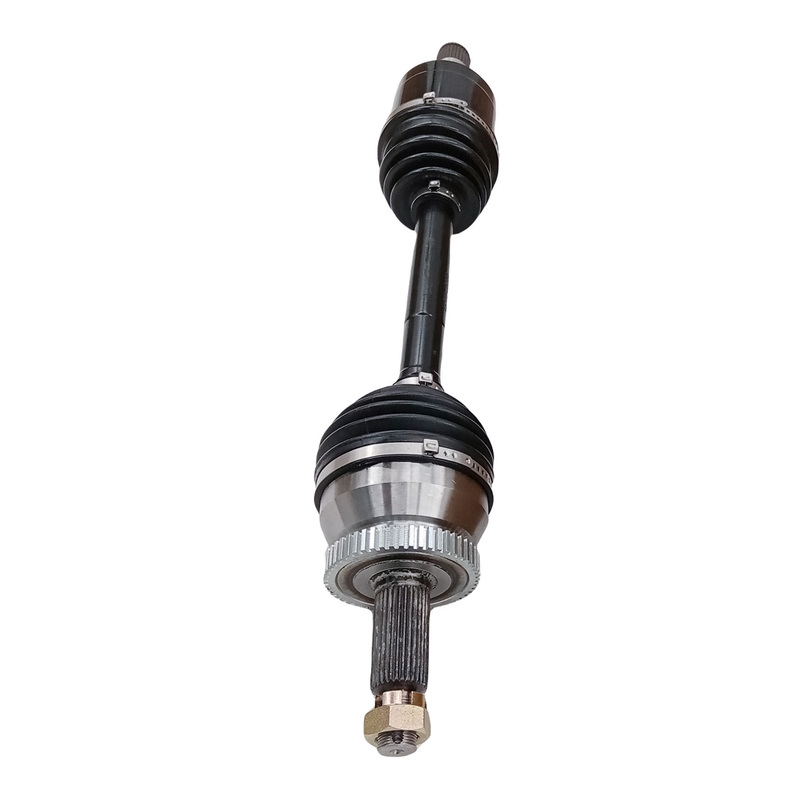

2 x CV Joint Drive Shafts (Front Left + Right Hand Side)
