Specification

Type:Engine Rebuild Kit

Displacement:397cc

Bore Type:Stanard Bore

Bore Size:STD 85mm

Stroke:70mm

Pin Diameter:20mm



OEM Part Numbers

Cylinder:12100-KCY-670, 12100-HN1-A70

Cylinder Base Gasket:12191-KCY-671, 12191-HN1-A71

Cylinder Head Gasket:12251-HN1-003, 12251-HN1-A41

Cylinder Head Cover Gasket:12391-KCY-671

Starter Cover Gasket:11377-HN1-010

Oil Pump Gasket:15151-KCY-671

Tensioner Gasket:14560-KCW-851

Piston (Std):13101-KCY-670

Pin, Piston:13111-KCY-670

Ring Set, Piston:13011-KCY-670

Circlips, Piston(1.2x20):90601-KA5-000

O-Ring (1.5x9.5):91306-MG3-000

O-Ring (35.5x3):91301-428-003

Exhaust Gasket:18291-MN5-650

Intake Manifold O-Ring (45x2.5):91303-397-000

Valve Stem Seal: 12209-KL4-005



Fitment

Fit For Honda TRX400EX Sportrax 1999-2008

Fit For Honda TRX400X 2009-2014

Fit For Honda XR400R 1996-2004

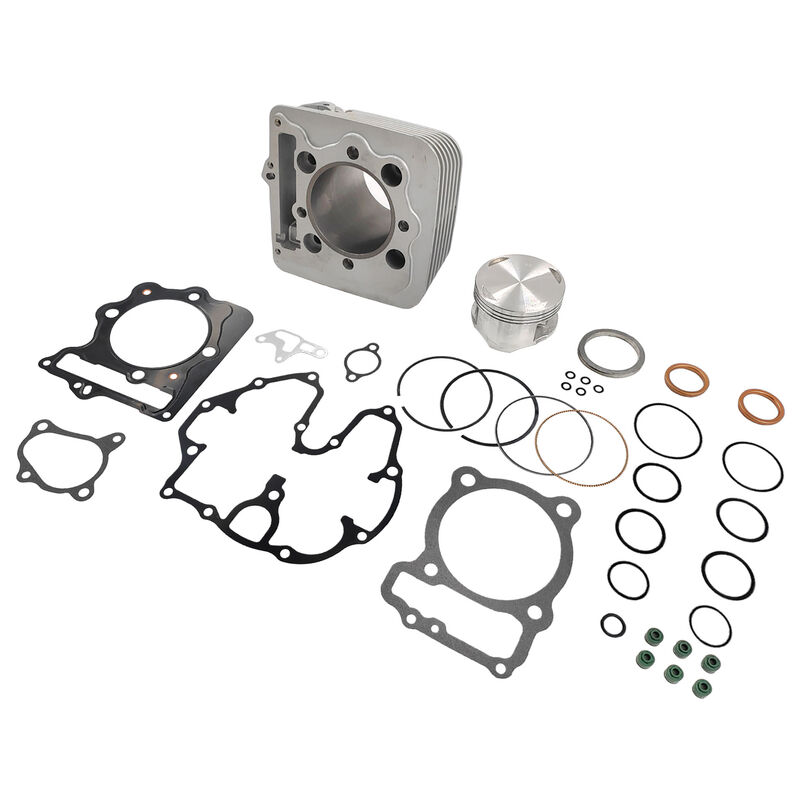

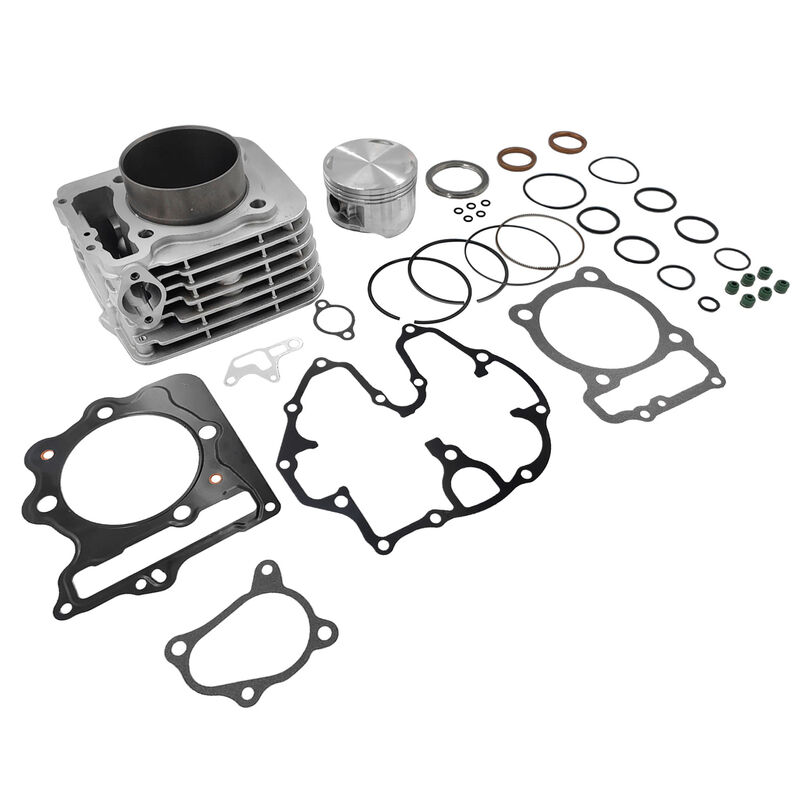

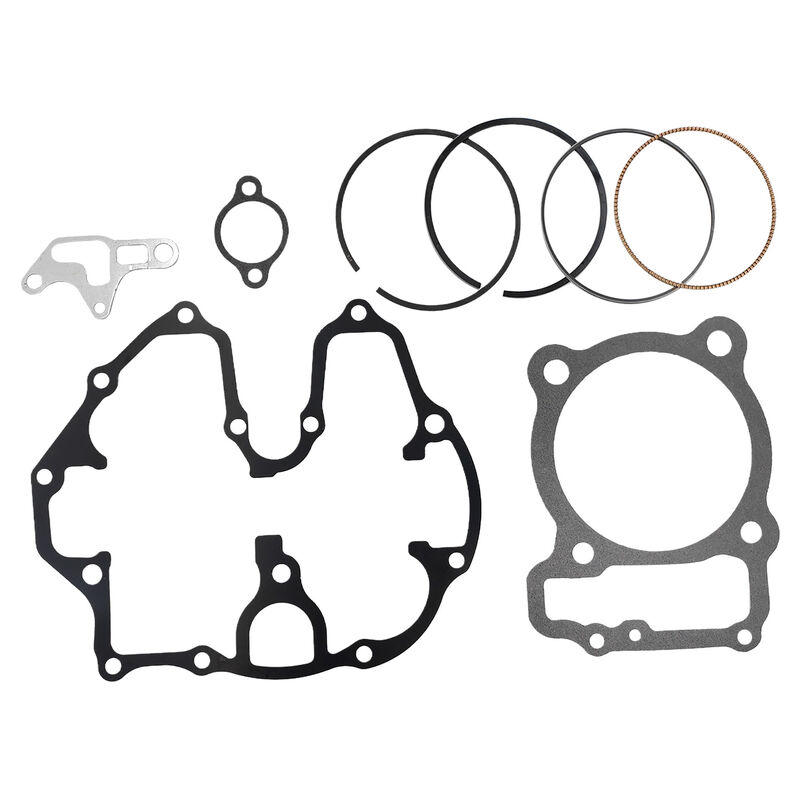

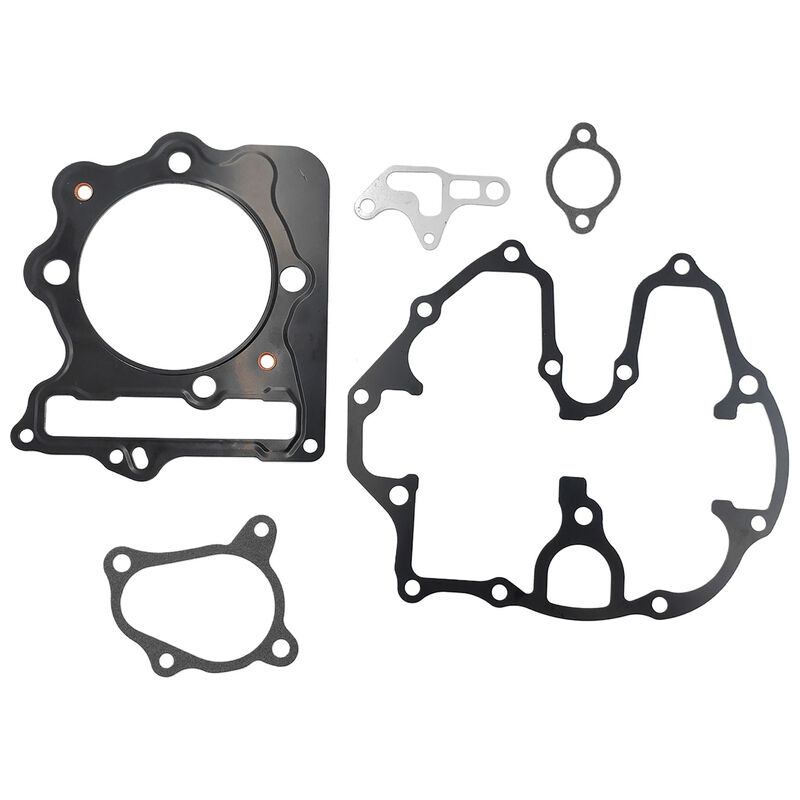

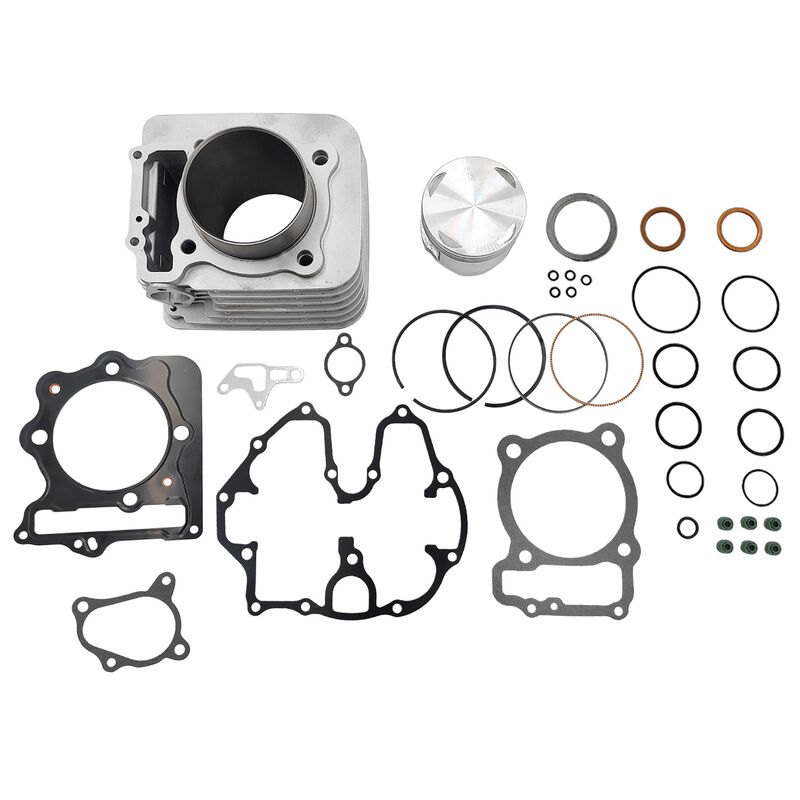

Package (As Photos)

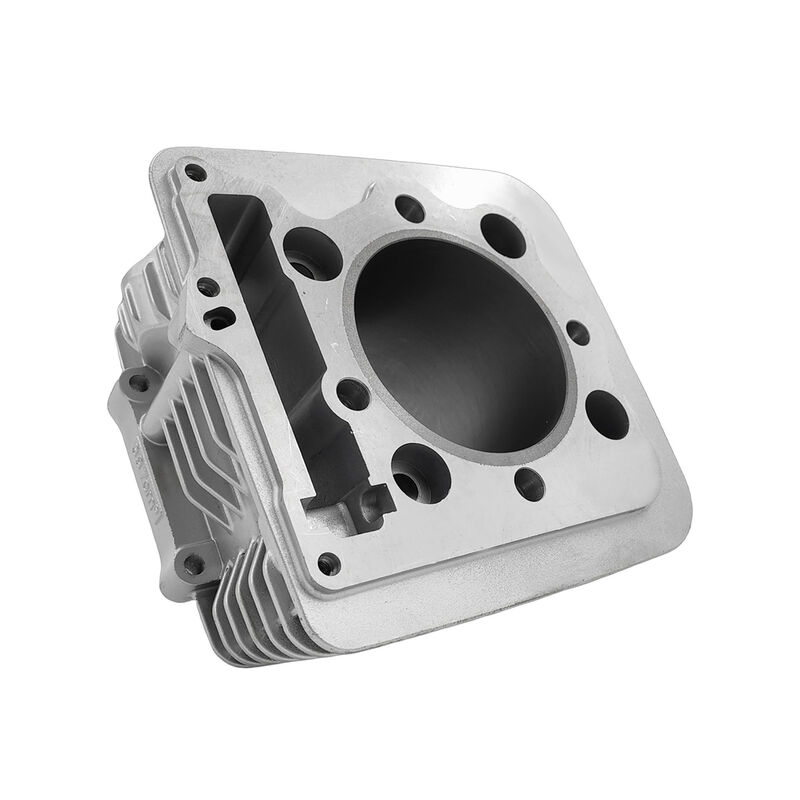

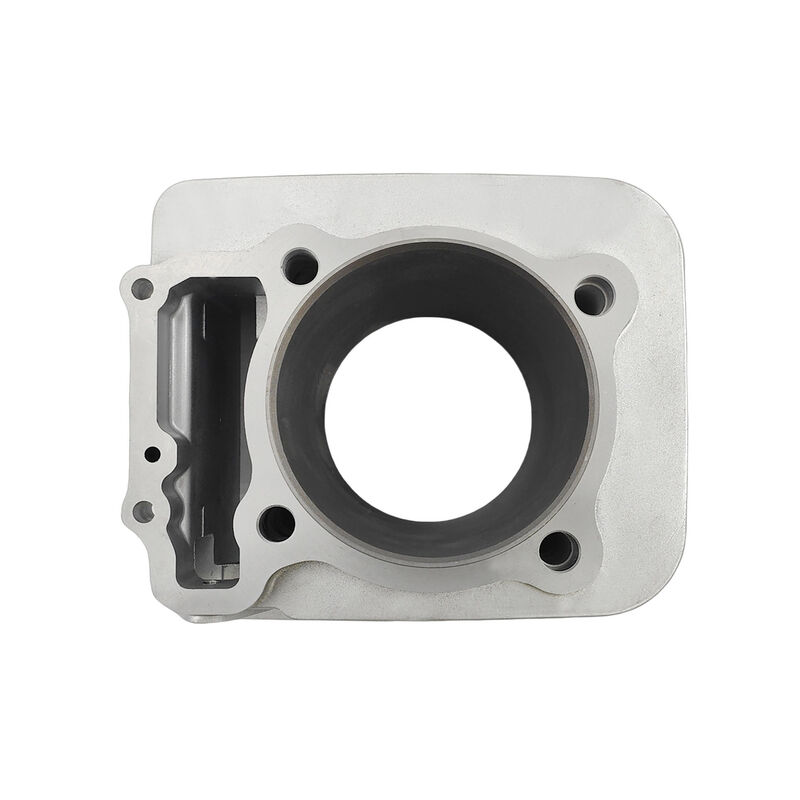

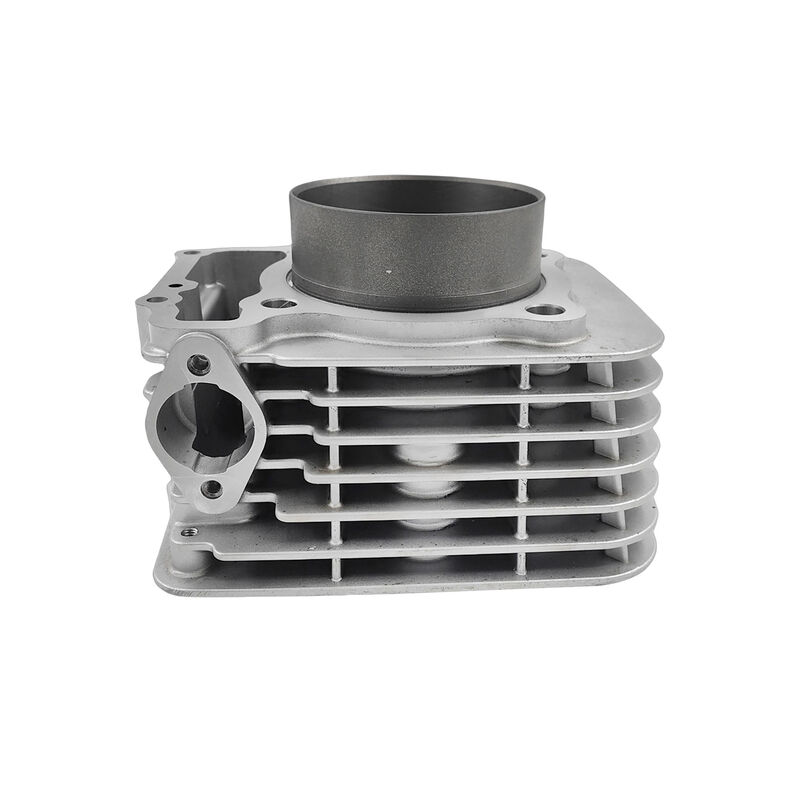

1 x Cylinder

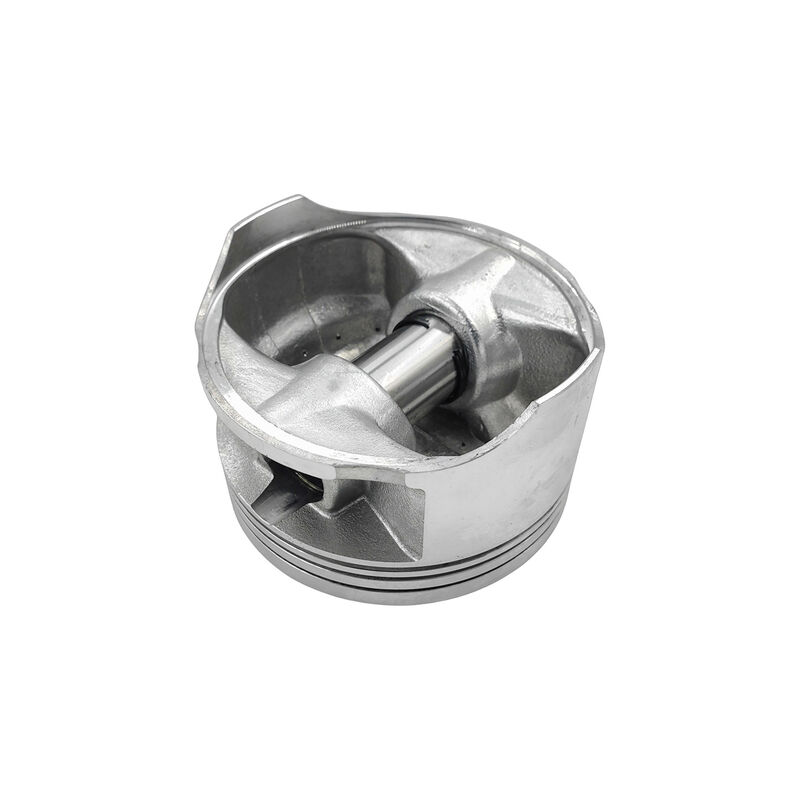

1 x Piston(STD)

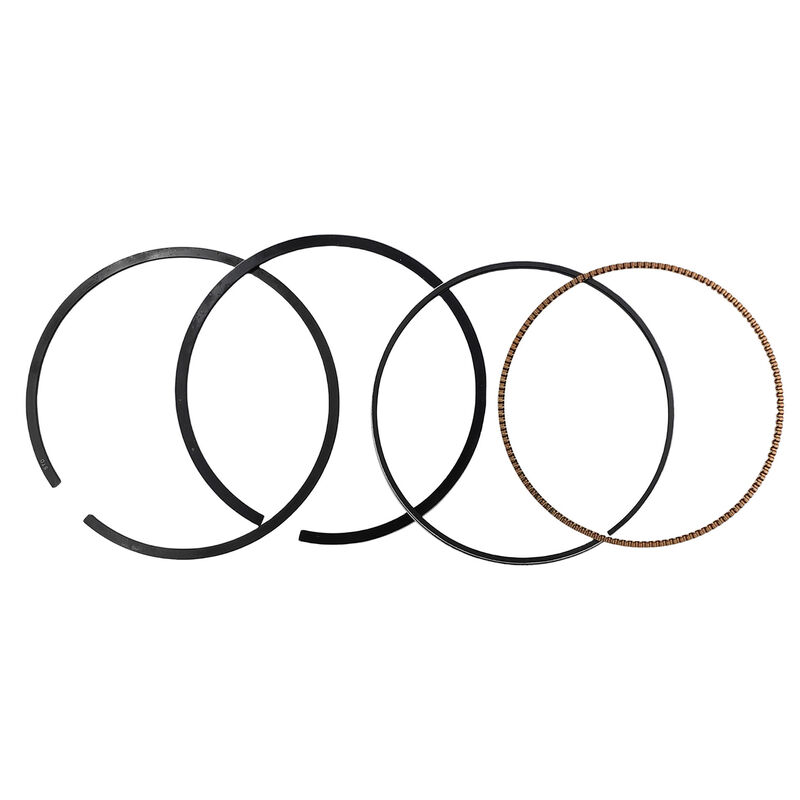

1 x Piston Ring Set

1 x Wristpin

1 x Cylinder Base Gasket

1 x Cylinder Head Gasket

1 x Cylinder Head Cover Gasket

1 x Chain Tensioner Gasket

1 x Starter Cover Gasket

1 x Oil Pump Gasket

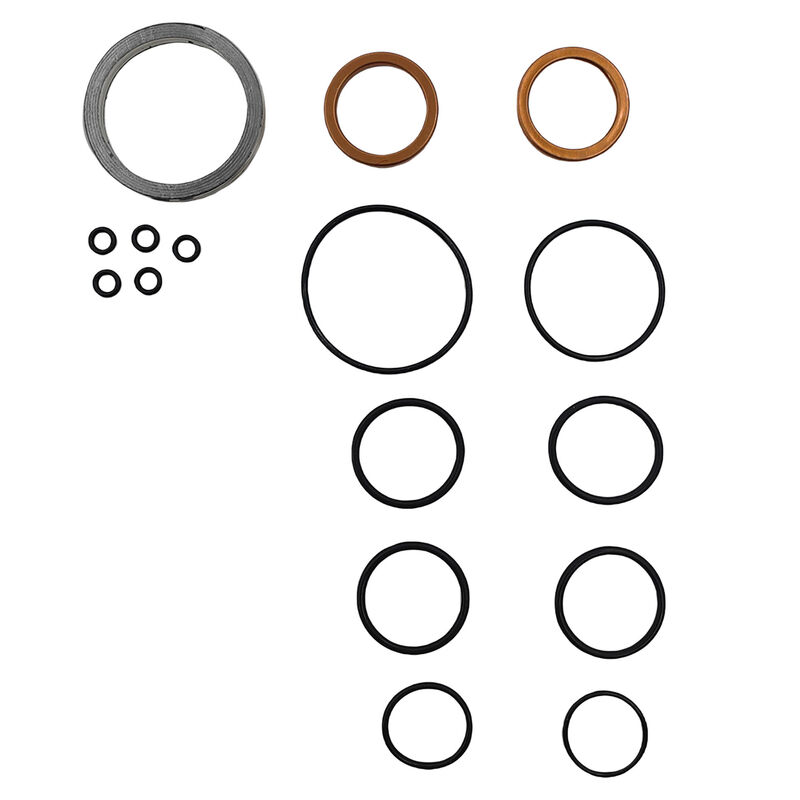

2 x Exhaust Gaskets

1 x Intake Manifold O-Ring (45x2.5)

5 x O-Rings (1.5x9.5)

4 x O-Rings (35.5x3)

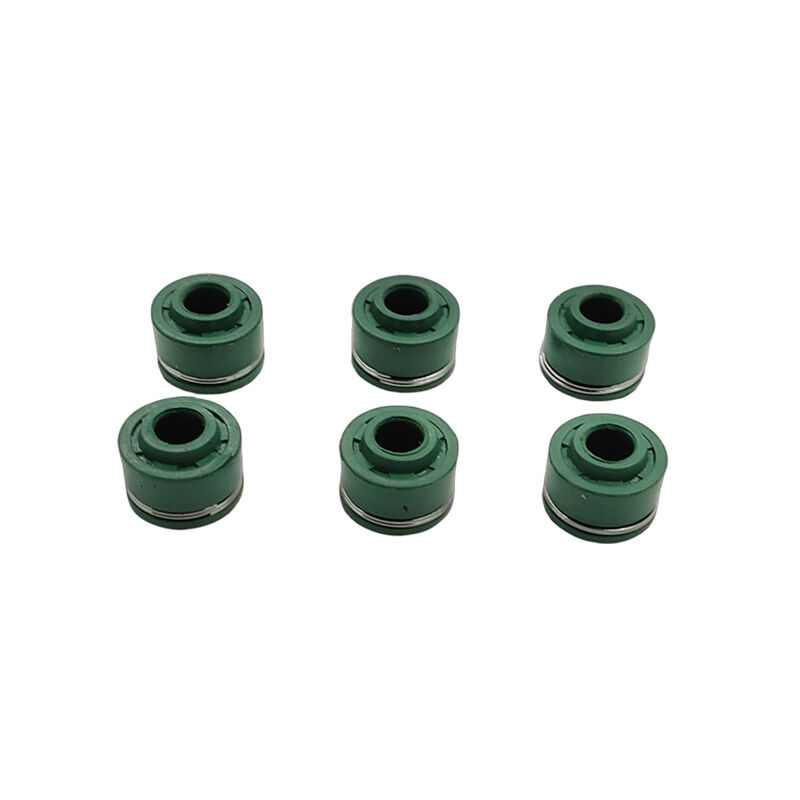

6 x Valve Stem Seals

SKU CHEAD-HD004
Brand MACHTER AUTOPARTS
Shipping Weight 3.8000kg
Shipping Width 0.175m
Shipping Height 0.250m
Shipping Length 0.320m
Shipping Cubic 0.014000000m3

This product fits the below vehicles. Please check that your vehicle is in the list before purchasing:
