Specification

Type：Horizontal Sliding Window

Main Material： Alloy Frame, Tempered Glass (ADR Approved Light Tint)

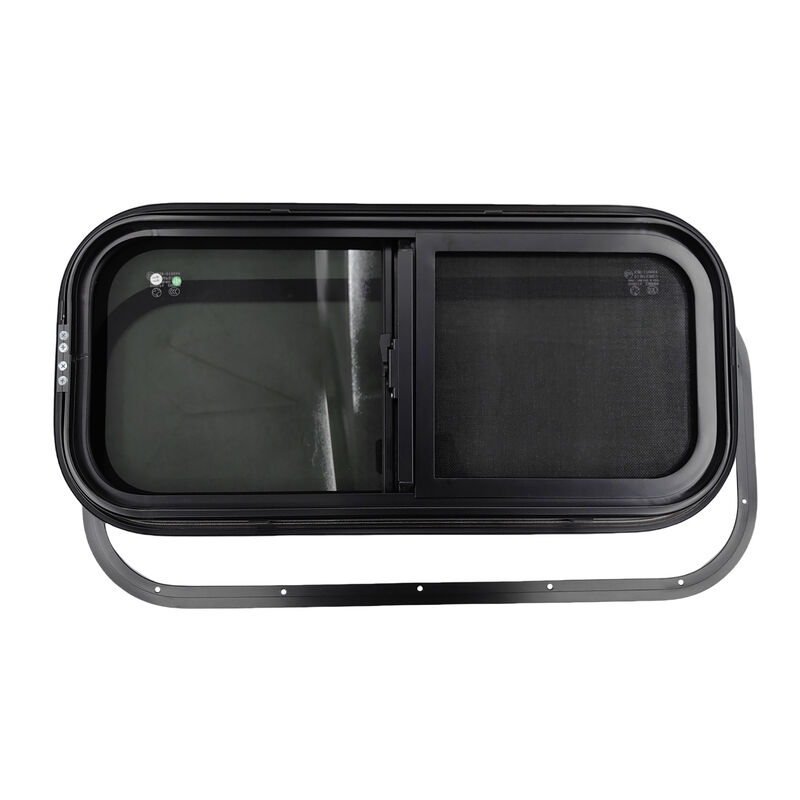

Fly Screen On One Side

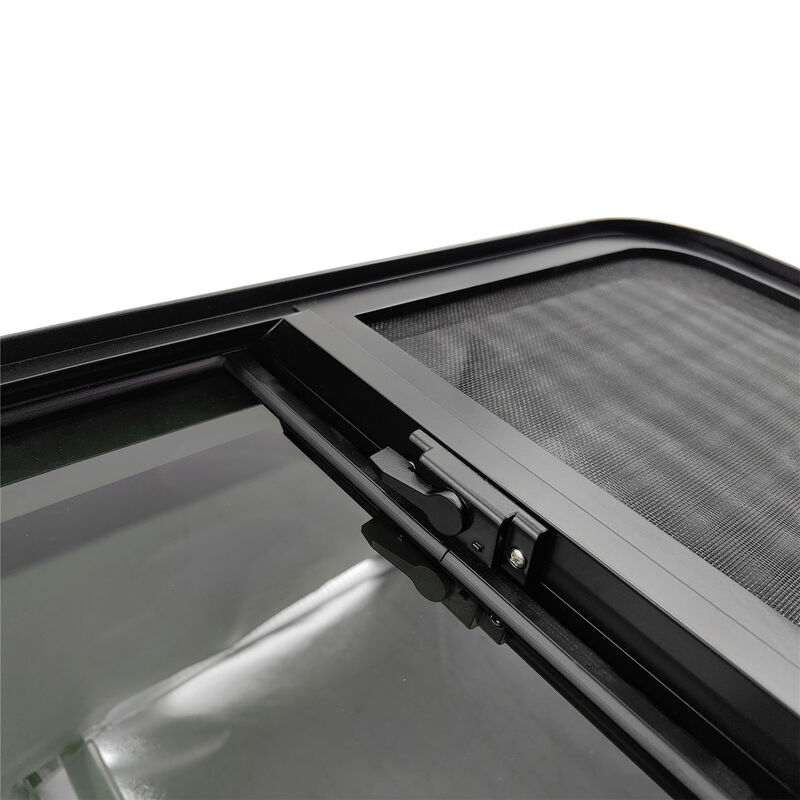

Lockable Sliding Window

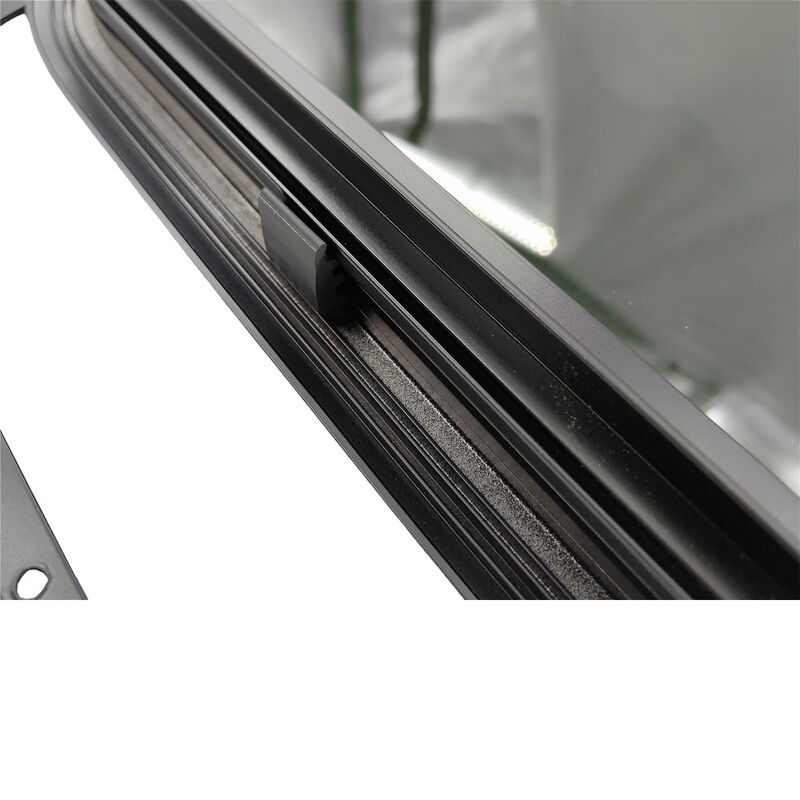

Rubber Seal Around The Glass

ADR Compliant, Comes With E-Mark

Dimension

External Size From Outside：780mm x 380mm x 45mm (W x H x D)

Internal Cut-Out Size：750x350mm (W x H)

Overall Window Depth：45mm

Window Thickness：4mm

Rounded Corner Radius：R100mm

Alloy Internal Bracket Size：772 x 370 x 25 mm (W x H x D)

Fitment

Fit For UTE Canopies, RV’s, Caravans, Motor Homes, Horse Floats, Etc.

Installation Guide

1.Make The Cut-Out For The Window First, Make Sure You Test Fit Before Actually Fitting It.

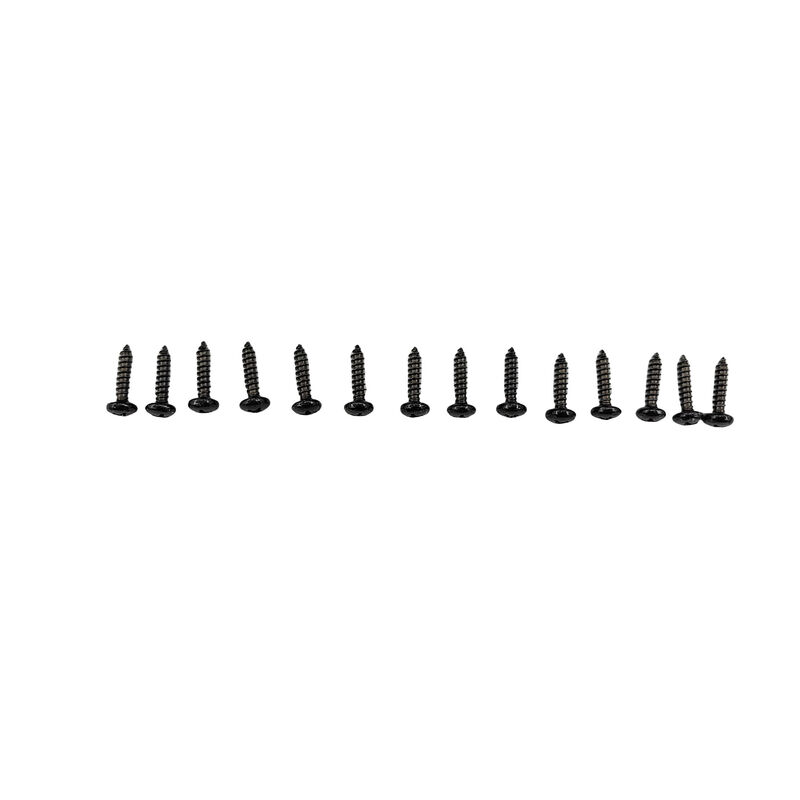

2.Glue The Window To The Surface, Screw The Alloy Bracket To The Window (Through The Canopy Sheet), With Quality Sealant For Water Proof.

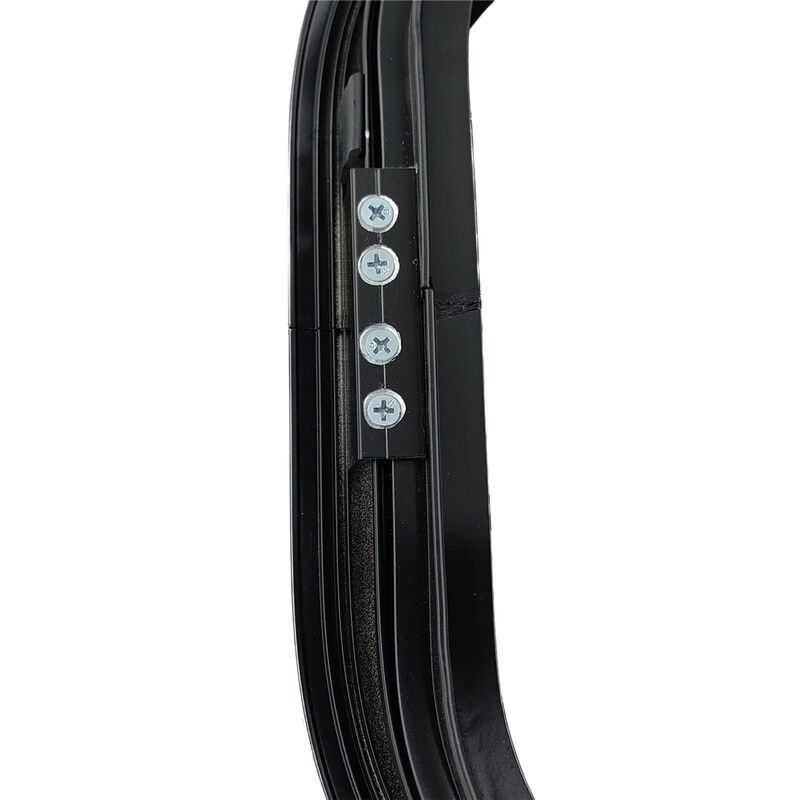

3.Please Note That The Back Aluminium Bracket Is Welded Due To Transport Purposes, Please Cut It Open On Where The Bottom Welding Seam Is Prior To Screwing It Into The Channel Of The Window.

Package

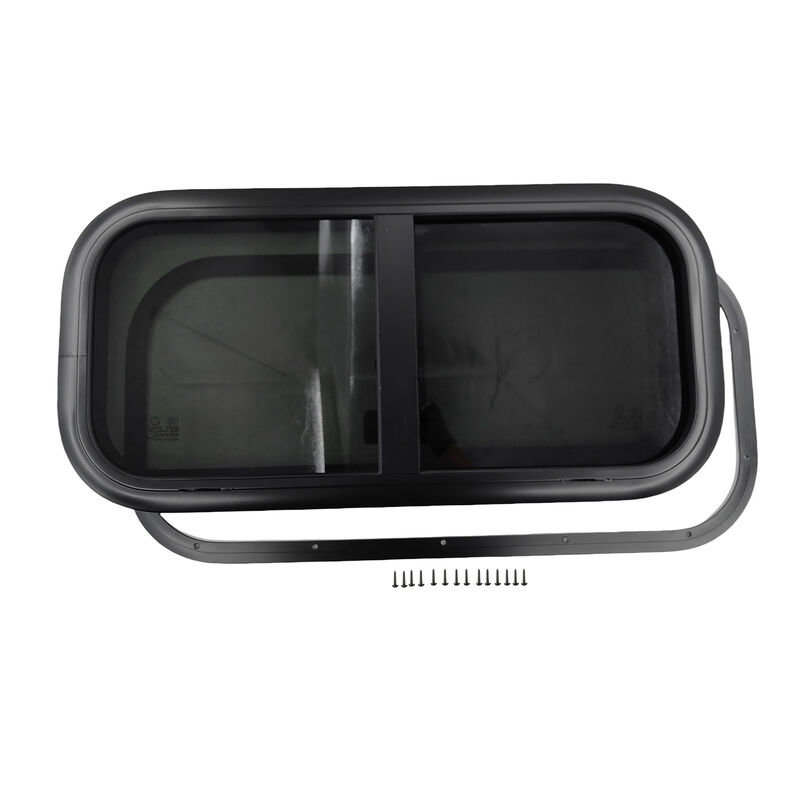

1 Set x Caravan Sliding Window (Internal Cut-Out Size: 750x350mm)
