Specification

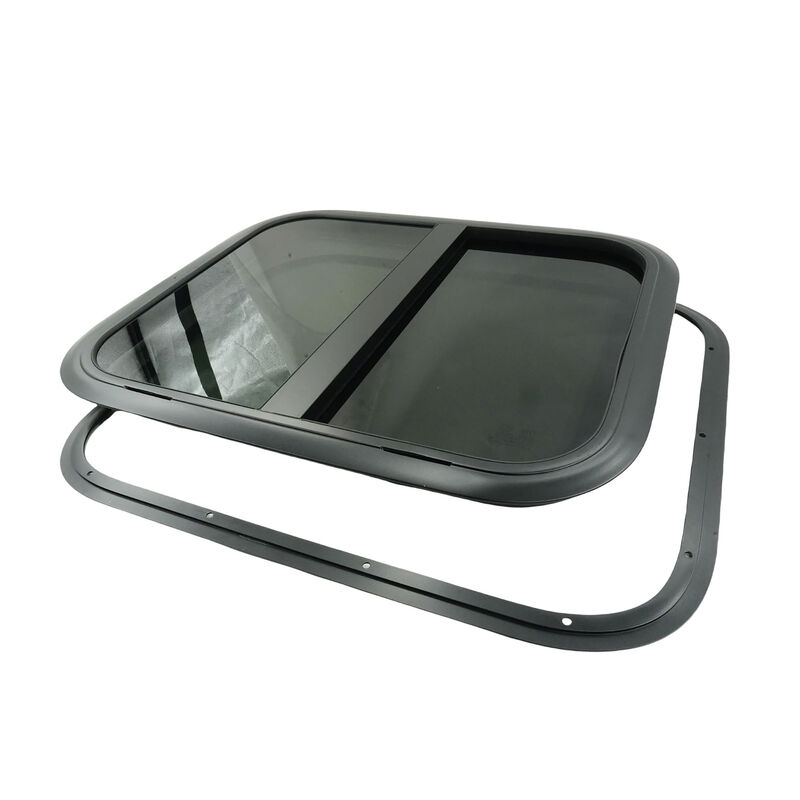

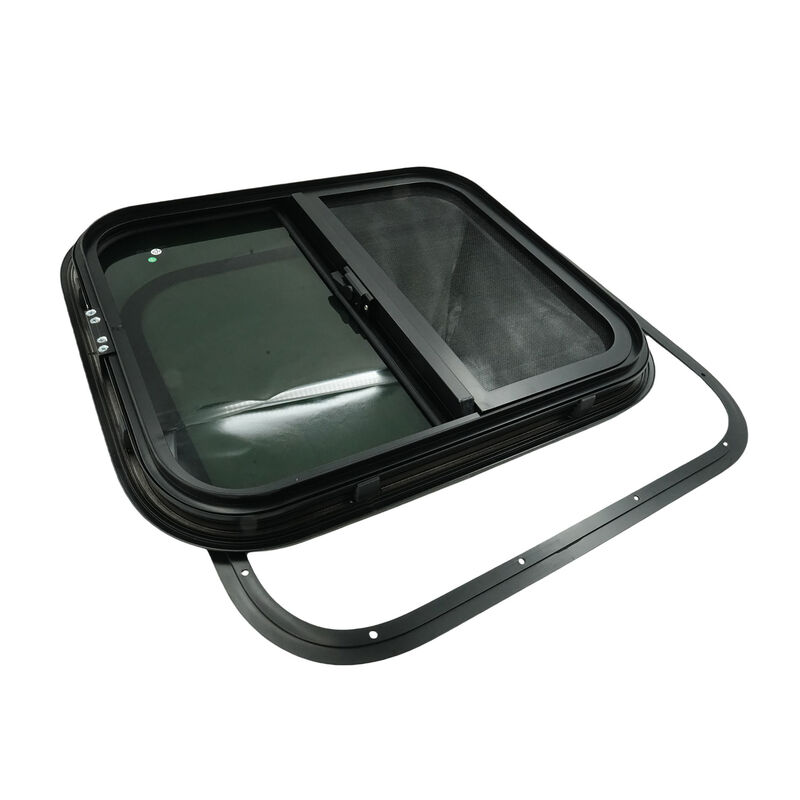

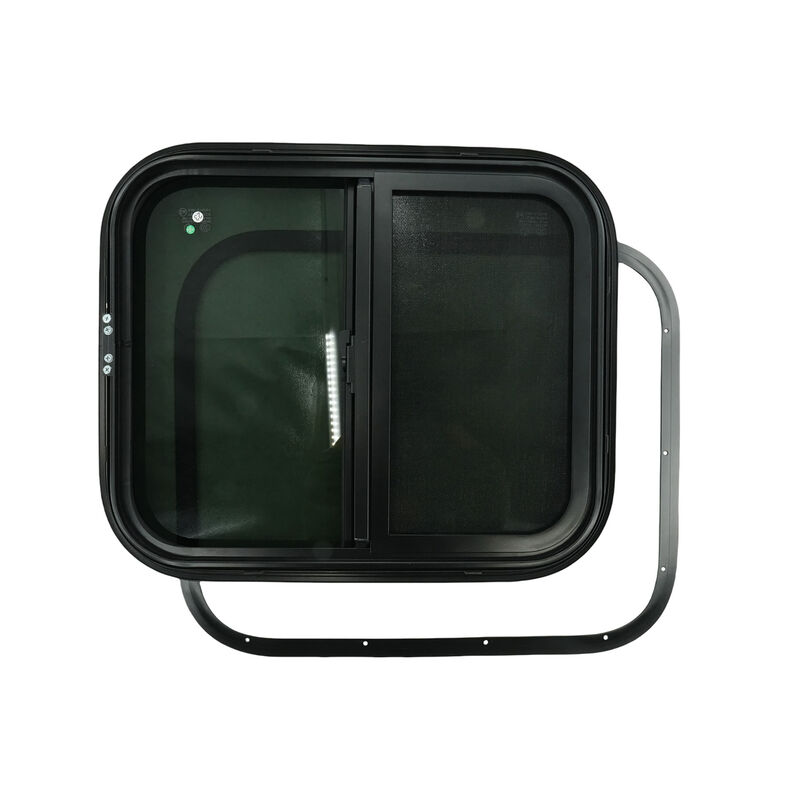

Type：Horizontal Sliding Window

Main Material：Aluminum Alloy Frame, High Strength Tempered Glass (ADR Approved Light Tint)

Ultra-Tough Removable Fly Screen

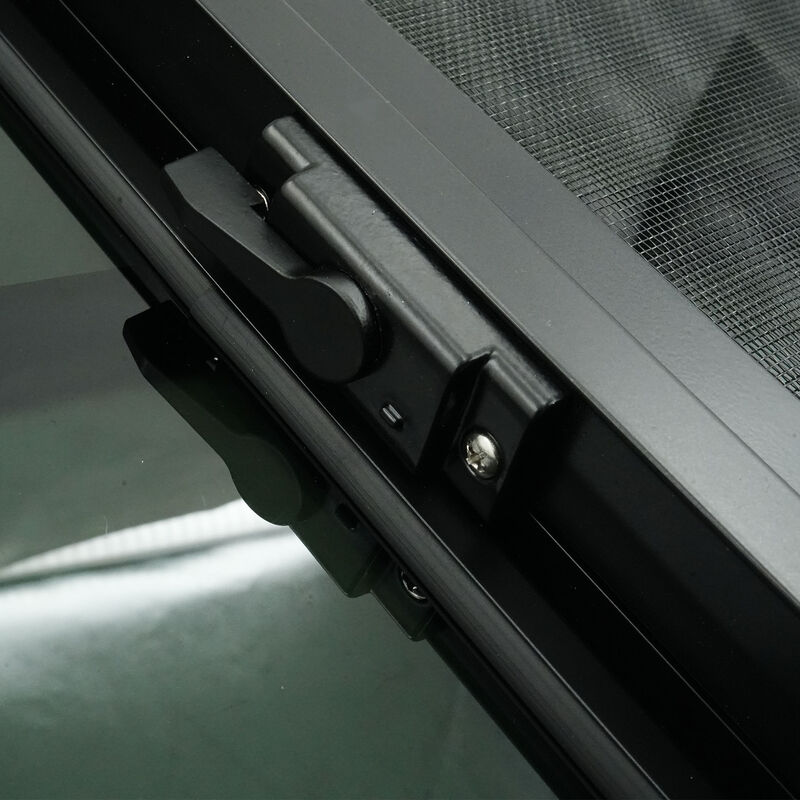

Safe Lockable Sliding Window

Rubber Seal Around The Glass

ADR Compliant, Comes With E-Mark

Sound, Water, Thermal, UV, And Scratch Proof

Dimension

Internal Cut-Out Size：600x500mm (W x H)

Rounded Corner Radius：R100mm

Fitment

Fit For UTE Canopies, RV’s, Caravans, Motor Homes, Horse Floats, Etc.

Fit For 30-90mm Caravan Wall Thickness

Installation Guide

1.Make The Cut-Out For The Window First, Make Sure You Test Fit Before Actually Fitting It.

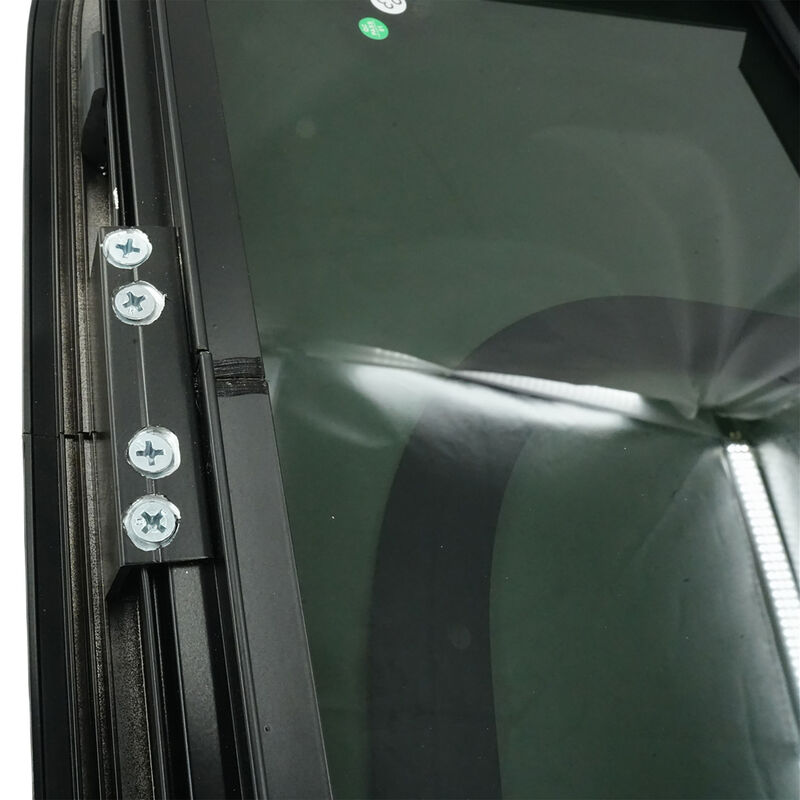

2.Glue The Window To The Surface, Screw The Alloy Bracket To The Window (Through The Canopy Sheet), With Quality Sealant For Water Proof.

3.Please Note That The Back Aluminium Bracket Is Welded Due To Transport Purposes, Please Cut It Open On Where The Bottom Welding Seam Is Prior To Screwing It Into The Channel Of The Window.

Package

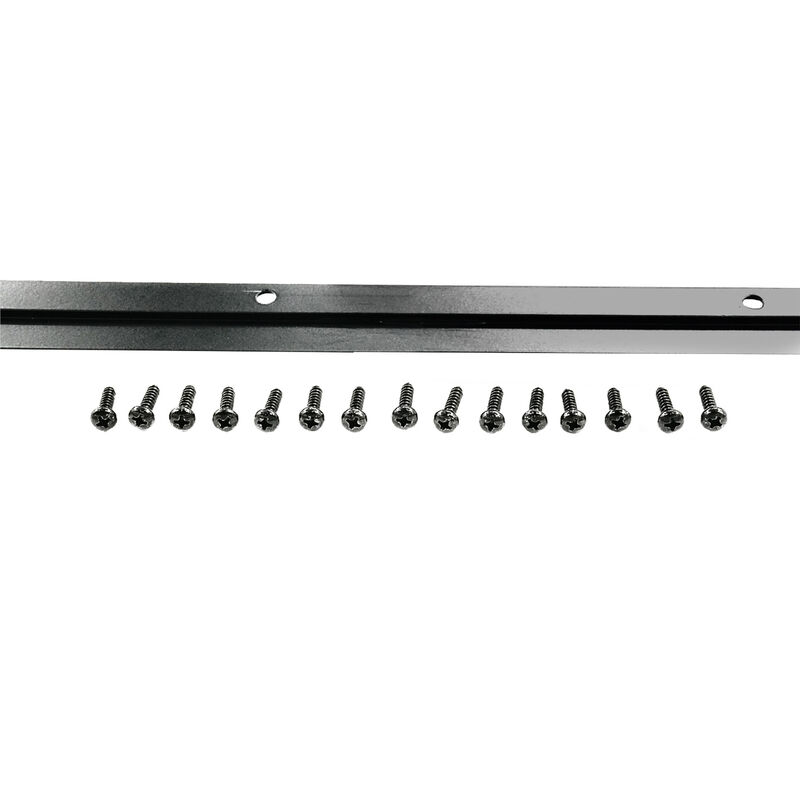

1 Set x Caravan Sliding Window (With Hardware Kit)
