Specification

Cut-Out Size (WxH) :1000mm x 500mm

Mounting Panel Thickness Range:30mm To 80mm

Suggested Radius Of Cut Out Corners:R100 mm

Top Hinge Opening To An Angle Of 65 To 70 Degrees.

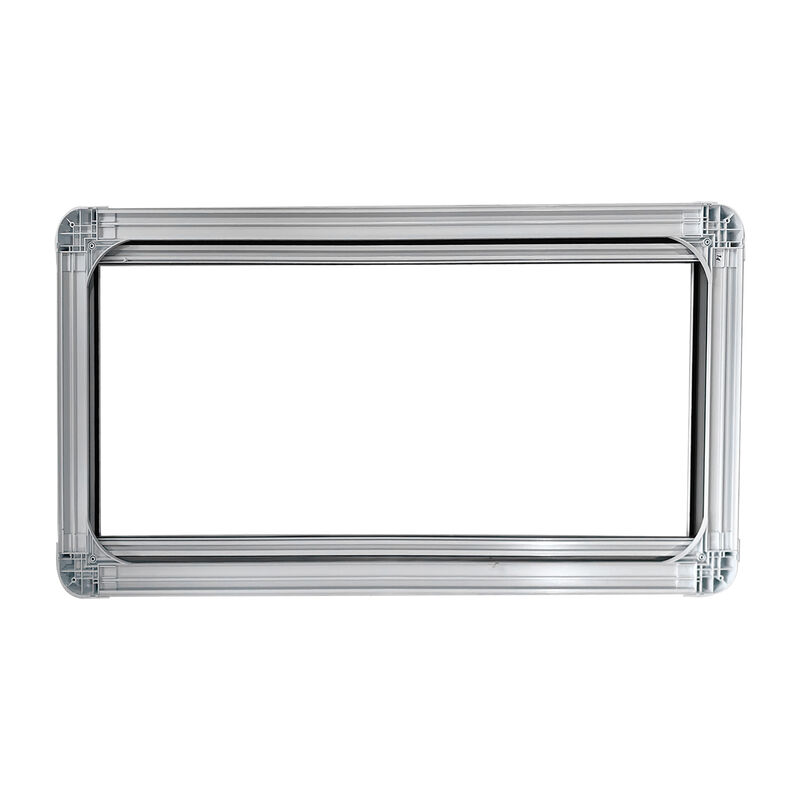

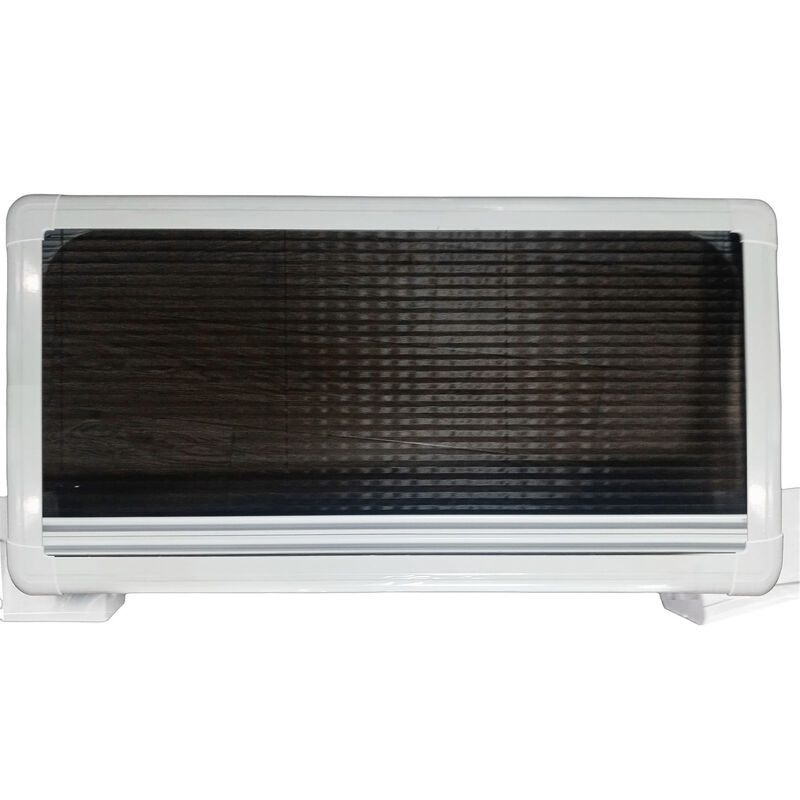

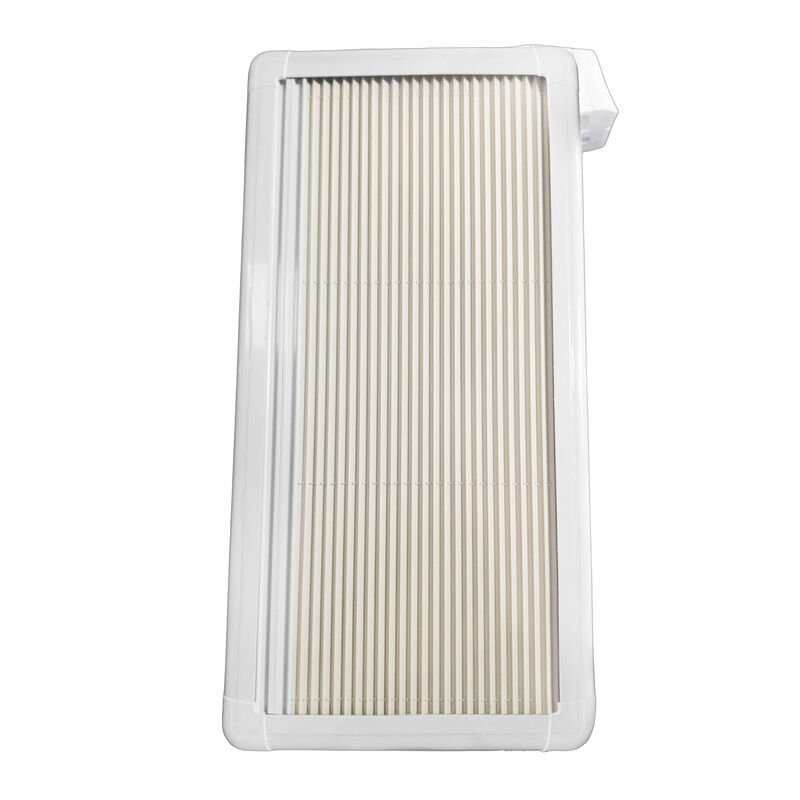

Removable White Plastic Internal Mounted Frame With Fly Screen And Anti-UV Blinds Built In.

Double-Glazed, Tinted Acrylic Borderless Glazing, UV Resistant.

High Quality Black Powder Coated Aluminum External Frame.

Single Opening Window

2x Internal Push Button Locking Systems

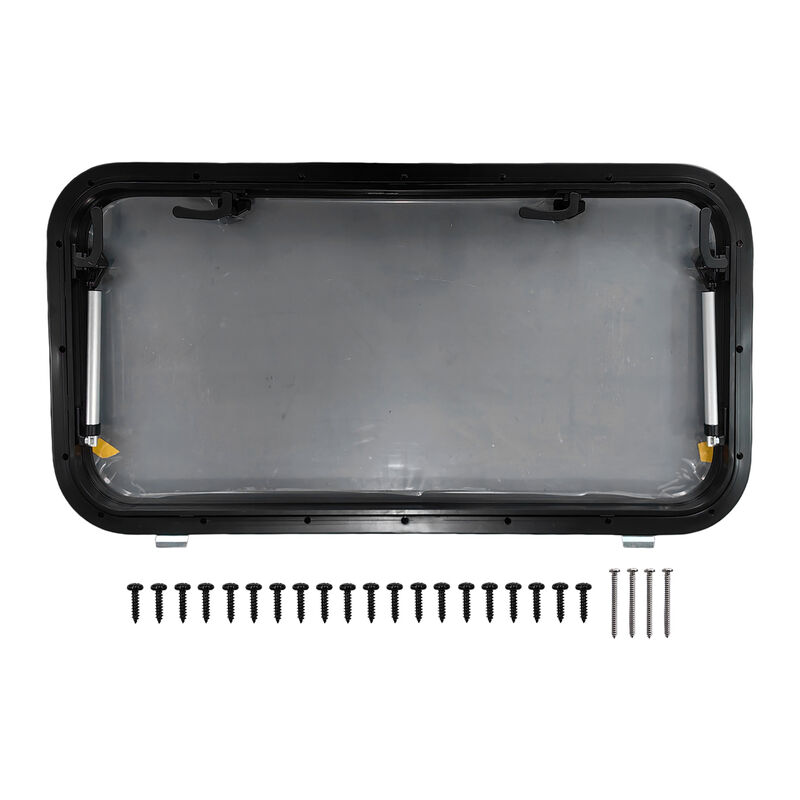

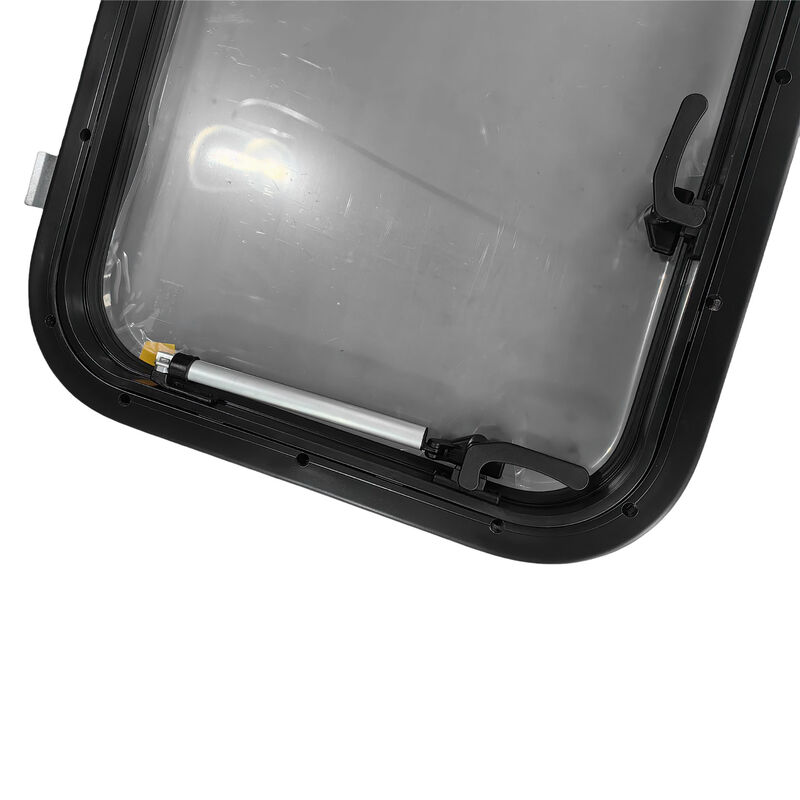

Telescopic Arms For Setting Window Panel At 2 Positions Automatically

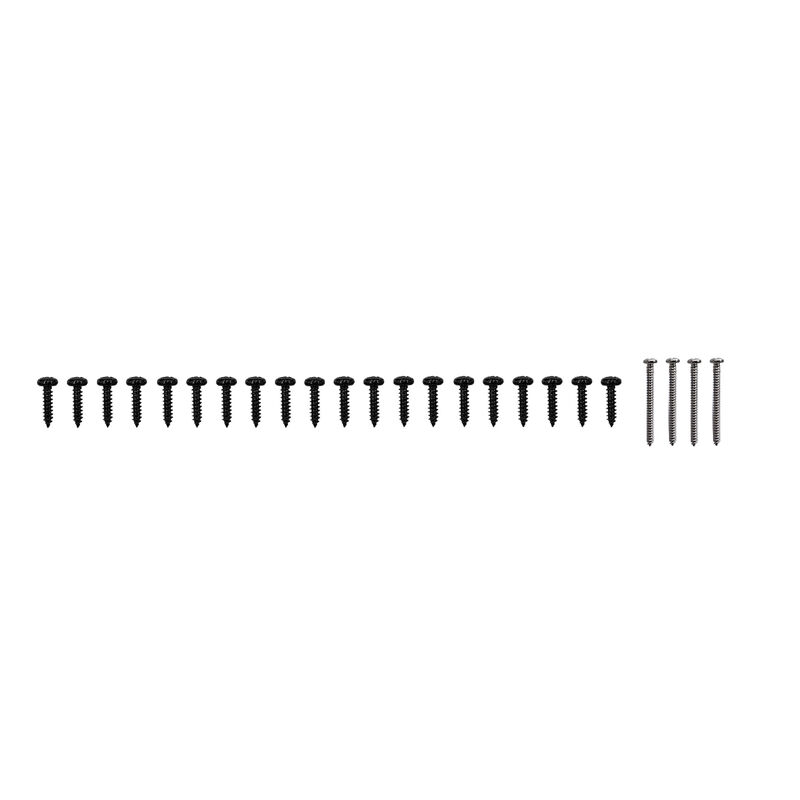

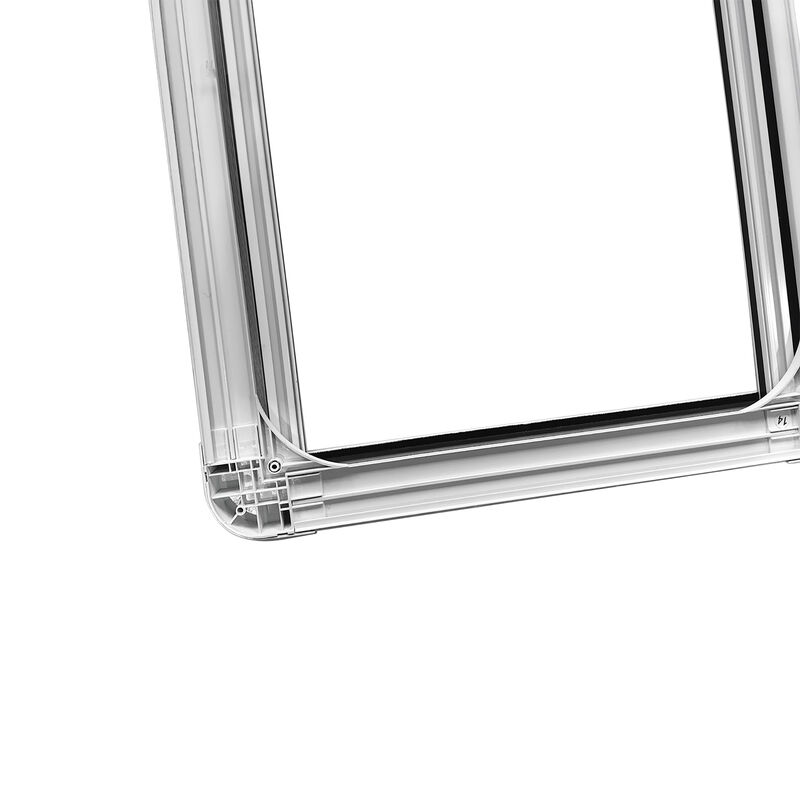

The Frame Is Approx 28mm Wide, Which Will Be Screwed Onto The Surface Around The Hole.

ADR Compliant. Each Window E-Marked.



Fitment

Fit For UTE Canopies, RV’s, Caravans, Motor homes, Horse Floats, Etc.



Package

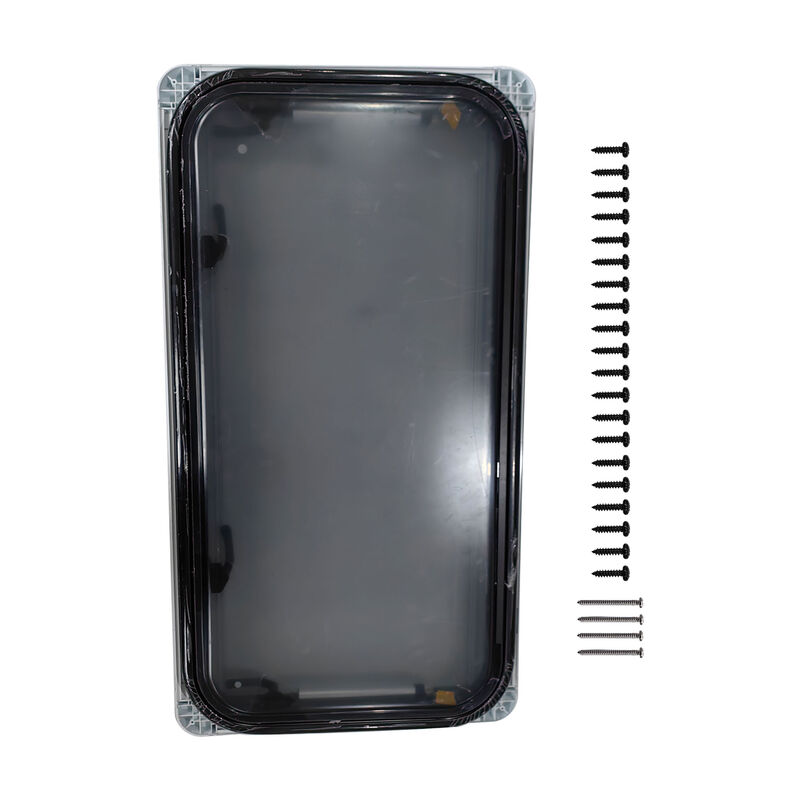

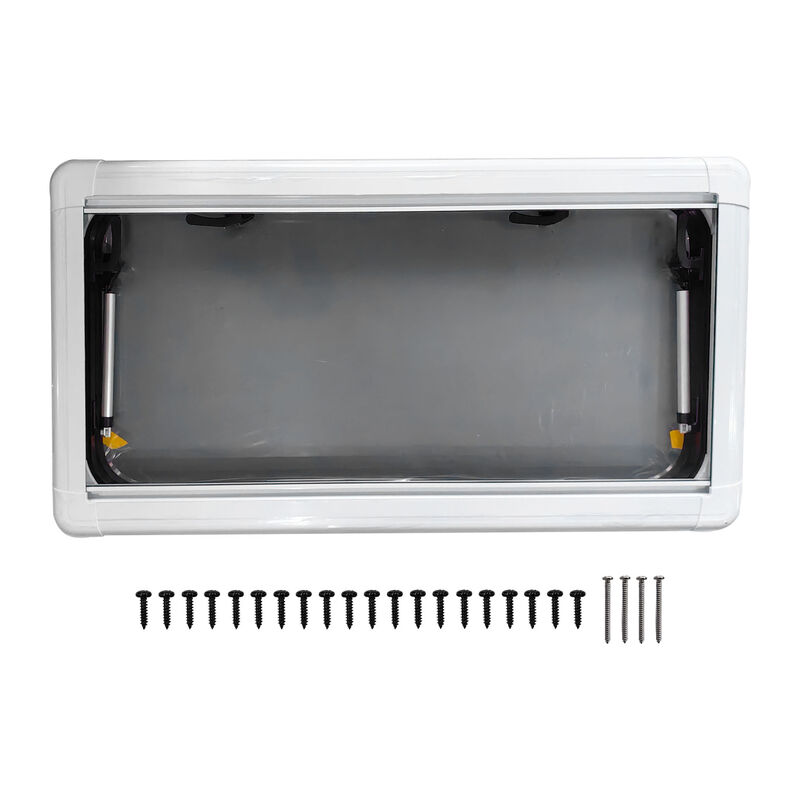

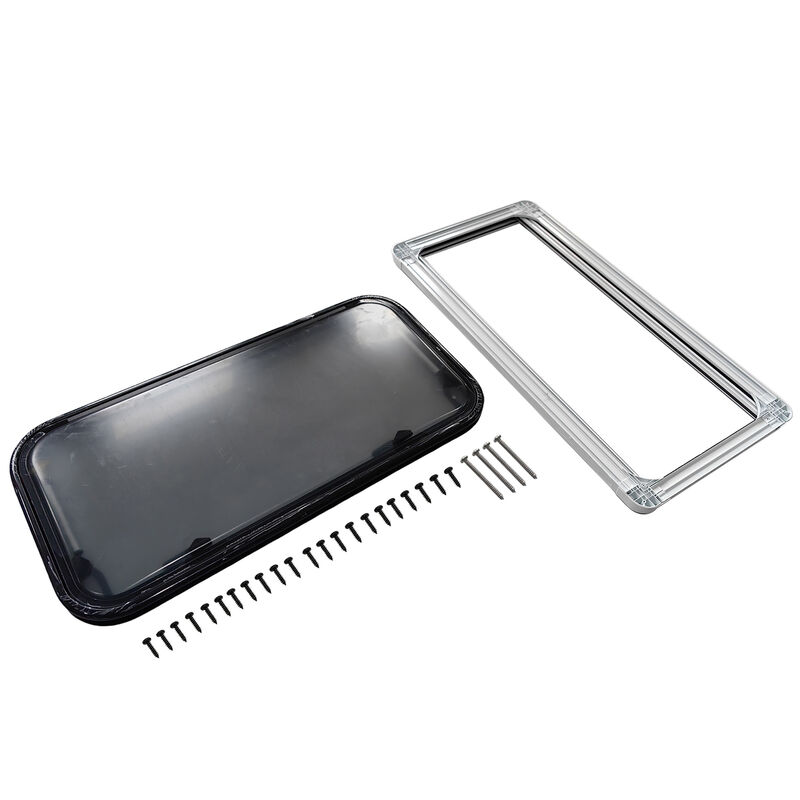

1 Set x Caravan Push Out Window - Round Corner

Comes With Anti UV Blinds & Built In Fly Screen

SKU UTEW-005
Brand MACHTER AUTOPARTS
Shipping Weight 11.7000kg
Shipping Width 0.635m
Shipping Height 0.130m
Shipping Length 1.030m
Shipping Cubic 0.085027000m3

This product fits the below vehicles. Please check that your vehicle is in the list before purchasing:
