Description

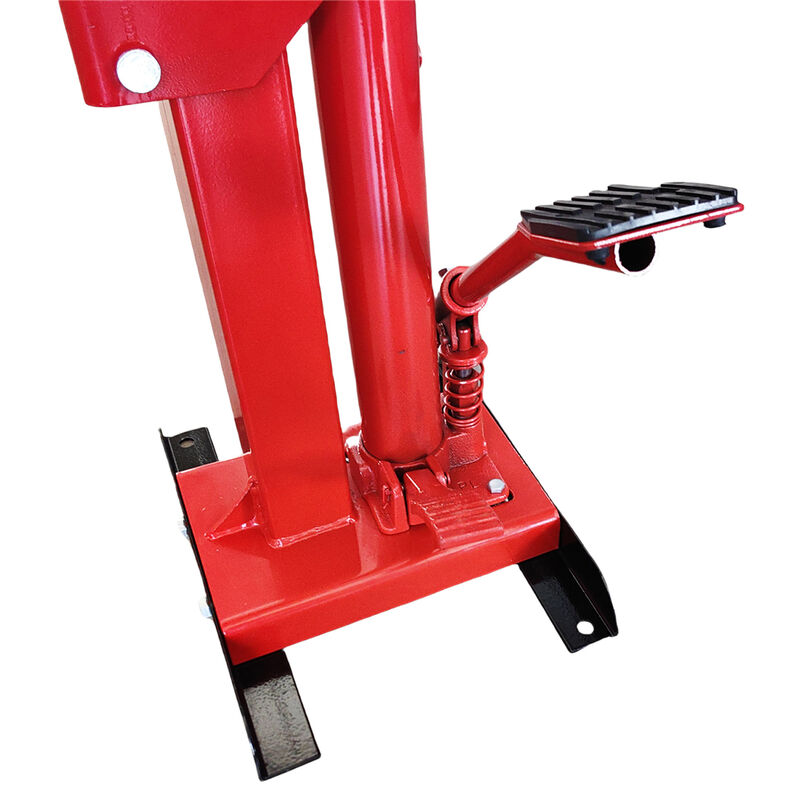

To Maximize Safety During Spring Disassembly And Assembly, We've Integrated Safety Tongues, An Extended Safety Chain, And A Stable H-Shaped Base. These Features Ensure A Secure Operation, Minimizing The Risk Of Wobbling.

High-Quality Hydraulic Jacks And Heavy, High-Hardness Steel Protect Against Damage During Long-Term Use, Effectively Improving Safety.

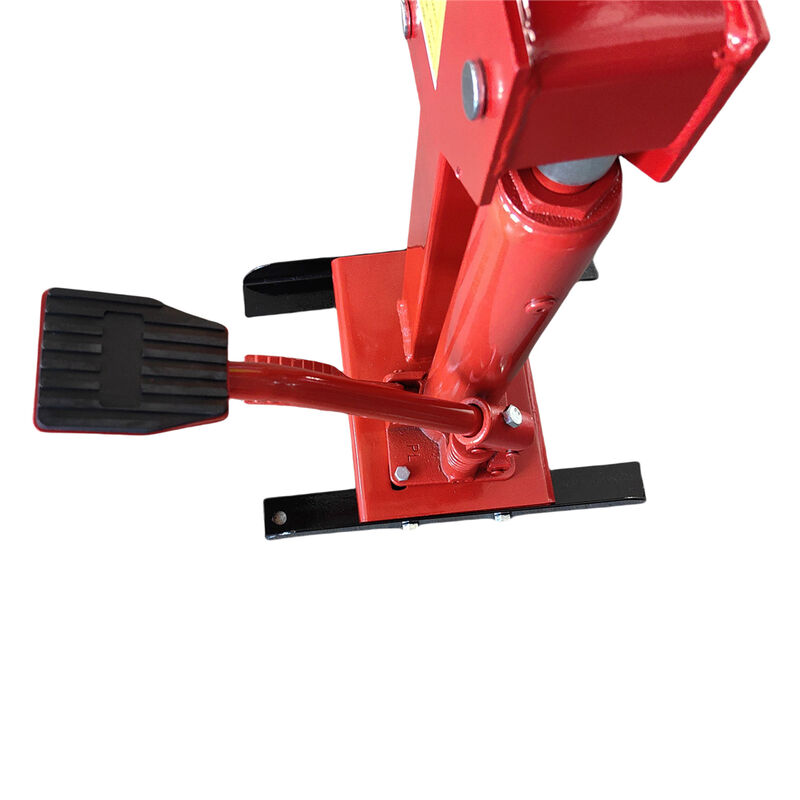

Hydraulic Jack Adopts Strict Anti-Oil Leakage Hydraulic Pump, Long-Term Use Is Not Easy To Oil Leakage Failure, With Damping Hydraulic Rod Smooth Lifting, Not Easy To Get Stuck, Will Not Produce Sudden Rise And Drop Risk.

Specification

Max Capacity Of Hydrulic Jack: 3 Ton

Net Weight：57.3 Ibs/26 kg

Product Size：40cm x 32cm x 102cm (L x W x H)

Jack Cylinder Piston Stroke：320mm

Jack Piston Diameter：28mm

Support Bar Shaft Clip Minimum Open：75mm x 130mm

Support Bar Shaft Clamp The Largest Open：90mm x 175mm

Jack Lifting Height：430mm to 820mm

Height Adjustment：Adjustable With 8 Holes On The Column

Material：Steel

With Safety Cage

Colour：Red

Feature

3 Ton Hydraulic Load Capacity：Our Coil Spring Compressor Is Great For Various Vehicle Types, Including Sedans, Suvs, Off-Road Vehicles, And Pickup Trucks. Perfectly Suited For Spring Disassembly And Shock Absorber Maintenance.

Versatile Clamping Options：Our Spring Compressor Comes With Two Clasps For The Utmost Versatility. The Small Spring Clasp Accommodates Sizes From 75 To 130mm, While The Big Spring Clasp Caters To 90 To 175mm Sizes. With A Maximum Compression Stroke Of 12.6"/320 mm And Featuring 8 Positioning Holes On The Column, You Can Easily Adjust The Clasp Position To Match Different Spring Heights.

Stable Suspension：Prioritizing Safety And Convenience, Our Coil Spring Compressor Features A Stable Suspension System That Prevents Bouncing Due To Spring Tension. It Halts At The Current Position And Only Descends Slowly When You Engage The Pressure Release Valve.

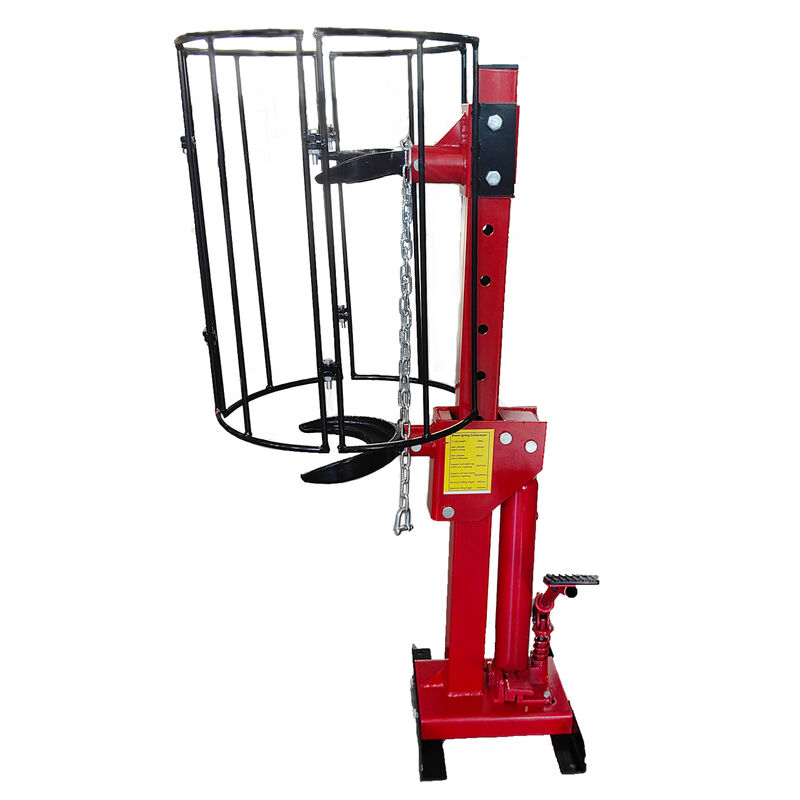

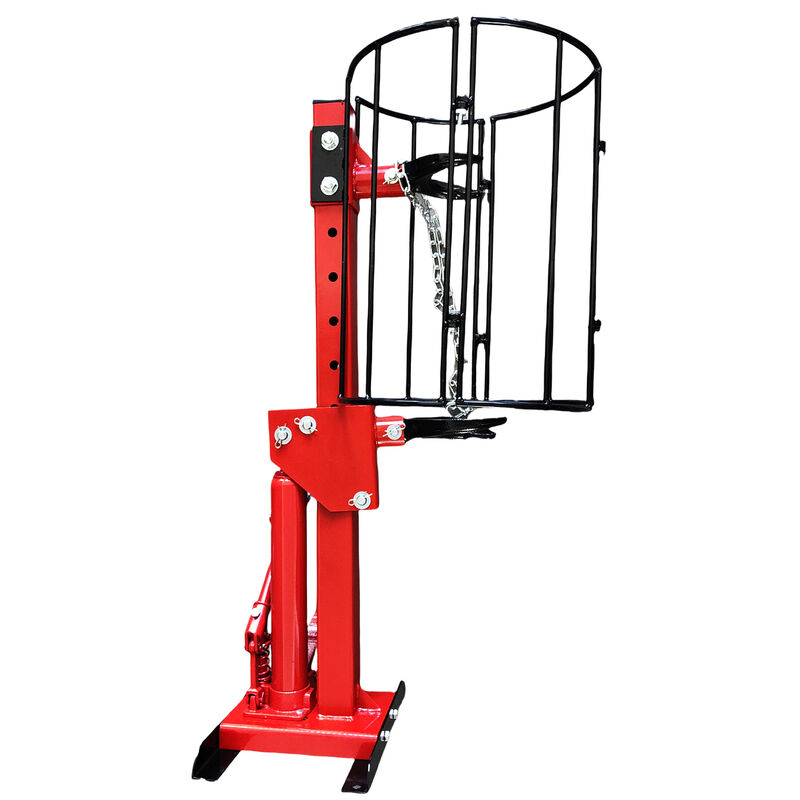

Safety Assurance：The Strut Spring Compressor Provides Multiple-Layered Protection: A 39.4" Extended Safety Chain To Secure The Springs, An Additional Stable Locking Mechanism, And A Safety Tongue On The Clasp To Prevent Spring Detachment Accidents. The H-Shaped Stable Base Ensures Minimal Wobbling During Operation. For Added Security, Two Pre-Drilled Holes Allow You To Anchor The Compressor To The Ground.

Premium Material Construction：The Hydraulic Jack Boasts A Leak-Proof Hydraulic Pump And A Dampened Hydraulic Rod For Seamless Lifting And Lowering. The Q235 Reinforced Steel Column And The Ductile Cast Iron Clasps Provide Unparalleled Durability To Withstand Extreme Pressures, Ensuring Heavy-Duty Springs Without Risk Of Breakage Or Bending.

Package

1 x 3 Ton Auto Strut Coil Spring Compressor

4 x Snap Joints

1 x Metal Chain

1 x Safety Cage
