Descriptions

P40 Series Valves With Middle-High Pressure Monoblock Construction Is Developed Based On Europe Technology.

Load Drop Check Valve For Each Spool.

Inner Relief Valve: The Relief Valve Inside The Valve Body Is Able To Adjust The Hydraulic System Working Pressure.

Oil Way: Parallel Circuit, Power Beyond Option

Control Way: Manual Control, Pneumatic Control, Hydraulic And Electric Control For Optional.

Valve Construction: Monoblock Construction, 1-6 Levers.

Spools - Double Acting A & B Ports Blocked In Neutral (Other Spools On Request)

Control Type - Manual And Detent, Pneumatic Control, Electric And Pneumatic Control, Hydraulic And Electric Control Available On Request.

Technical Specification

Type: P40 series Hydraulic valves

Nominal Flow: 40L/min

Max Flow : 50L/min

Rated Pressure: 200bar

Max Pressure: 250bar

Ports: P and T Ports = 1/2" (BSPP), A and B Ports  = 3/8" (BSPP)

Control Type: Manual - Spring Centred (Detent, pneumatic, hydraulic, electro-hydraulic on request)

Spool function: Closed Centre (A & B Blocked in Neutral) (Motor Spool and Single Acting Spools on request)

Circuit type: Parallel

Structure: Monoblock structure, 1-6 sections

Spool stroke: ±5mm

Specifications

Body - Cast Iron

Relief Valve Setting - 180Bar (250Bar Max)

Temperature Range - 15deg C to + 80 Deg C

Features

Individually Tested

1 To 6 Spool Options

Levers Can Be Rotated To Multiple Positions.

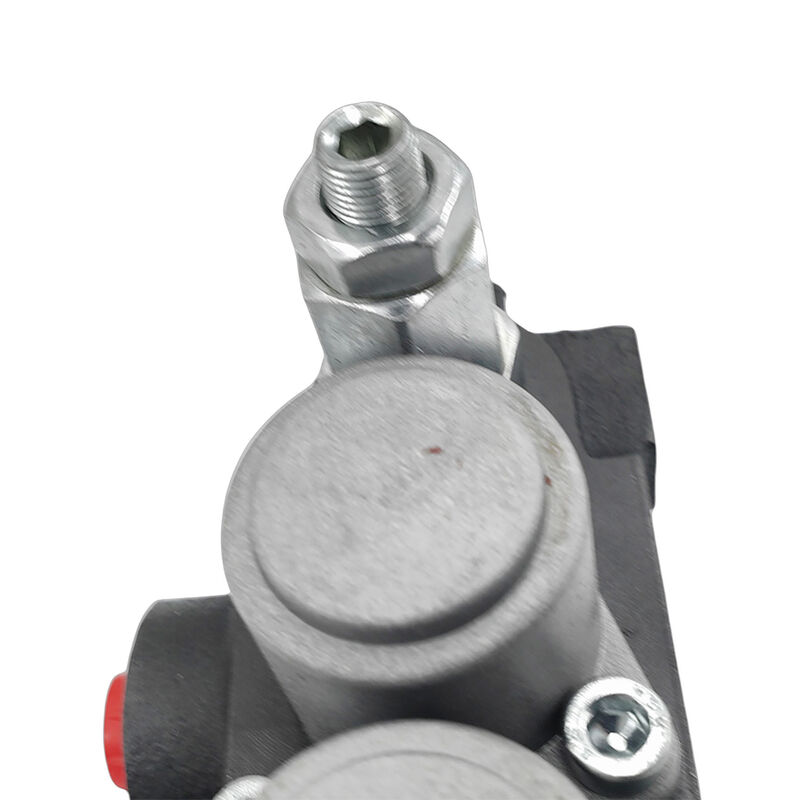

Adjustable Relief Valve

Other Options Available

Pressure Beyond Option

Single Acting Spool

Motor Spool

Single Detent

Double Detent

Cable Control Joystick Option (1mtr to 5mtr lengths)

Multi Axis Joystick Lever Option (Mounts Directly Onto The Valve)

Package

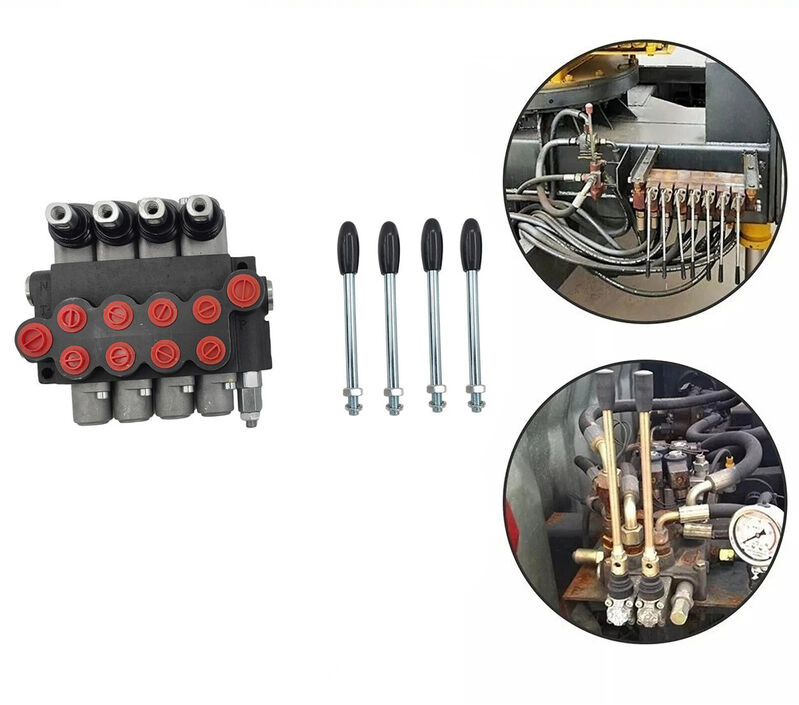

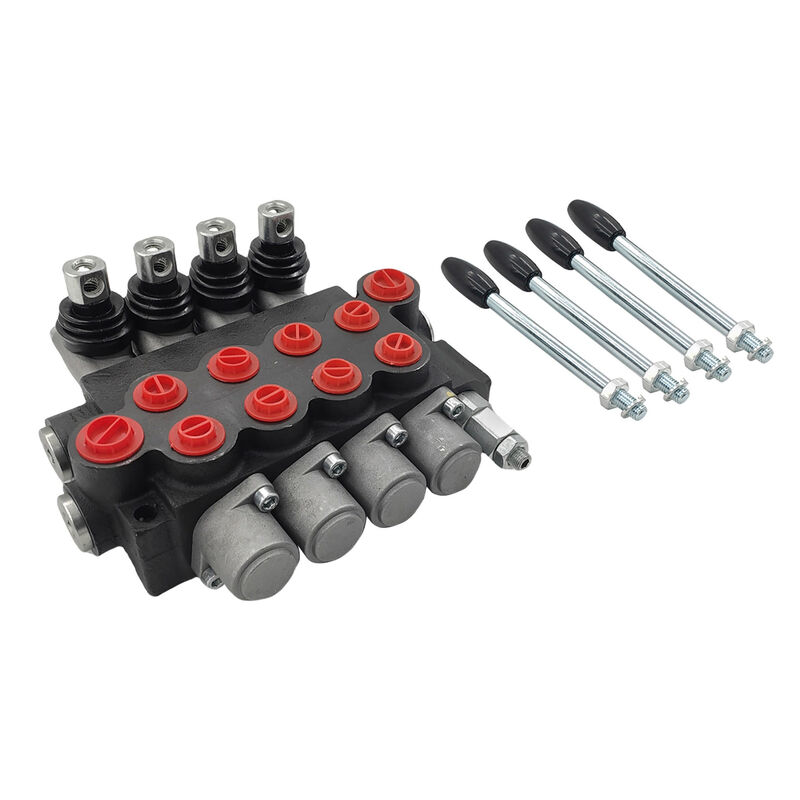

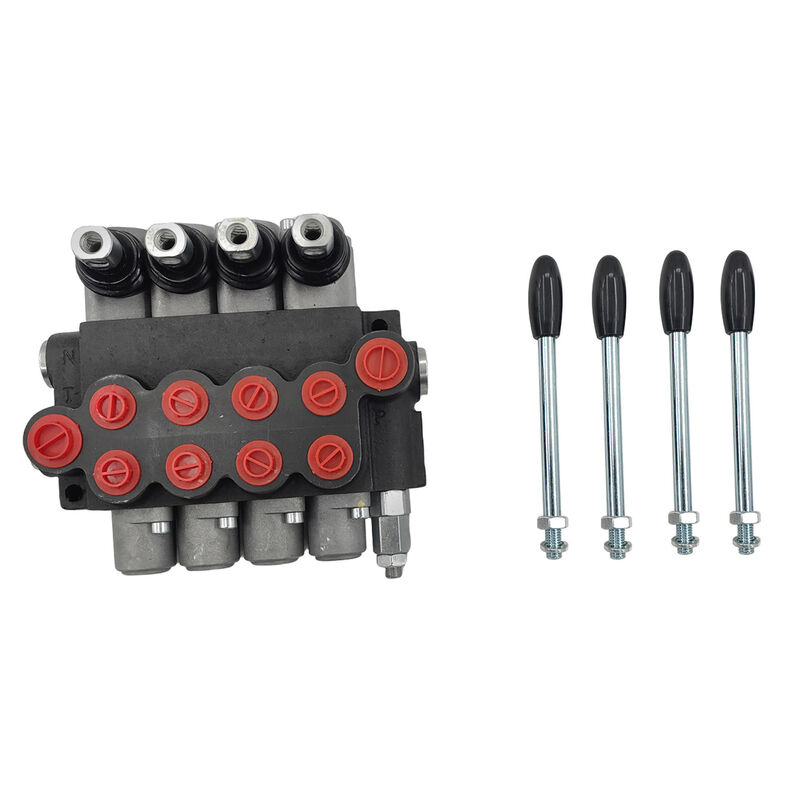

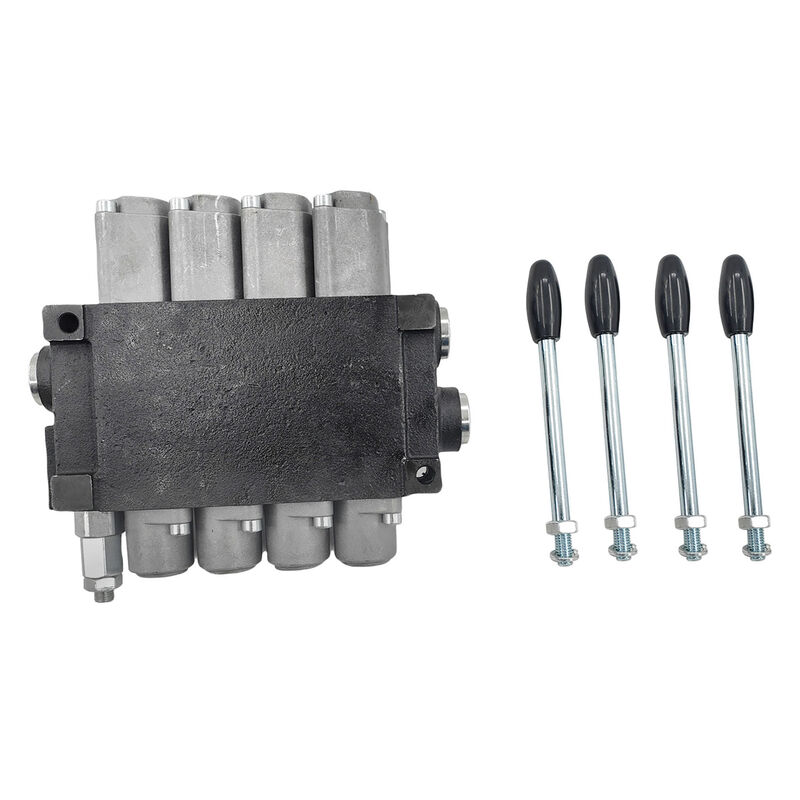

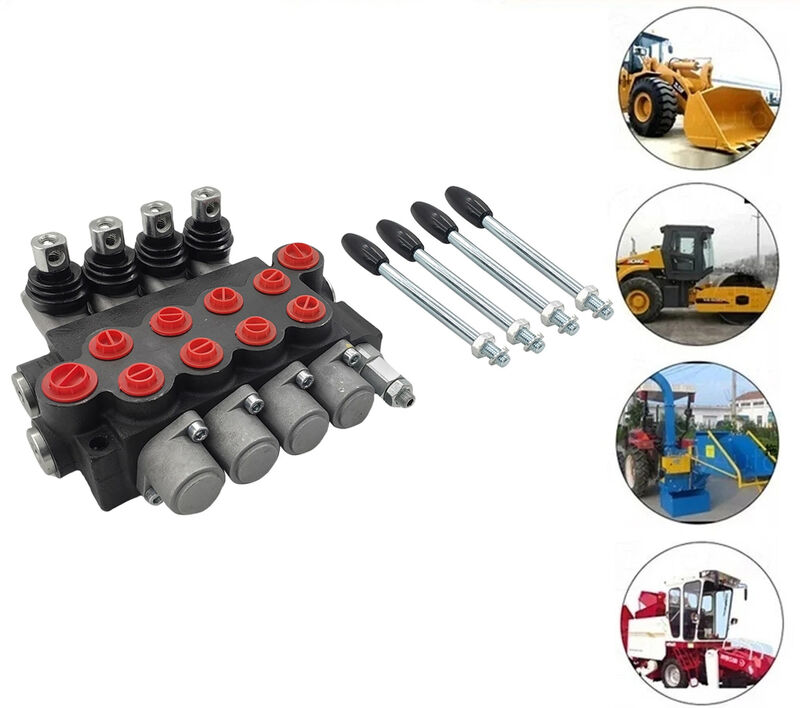

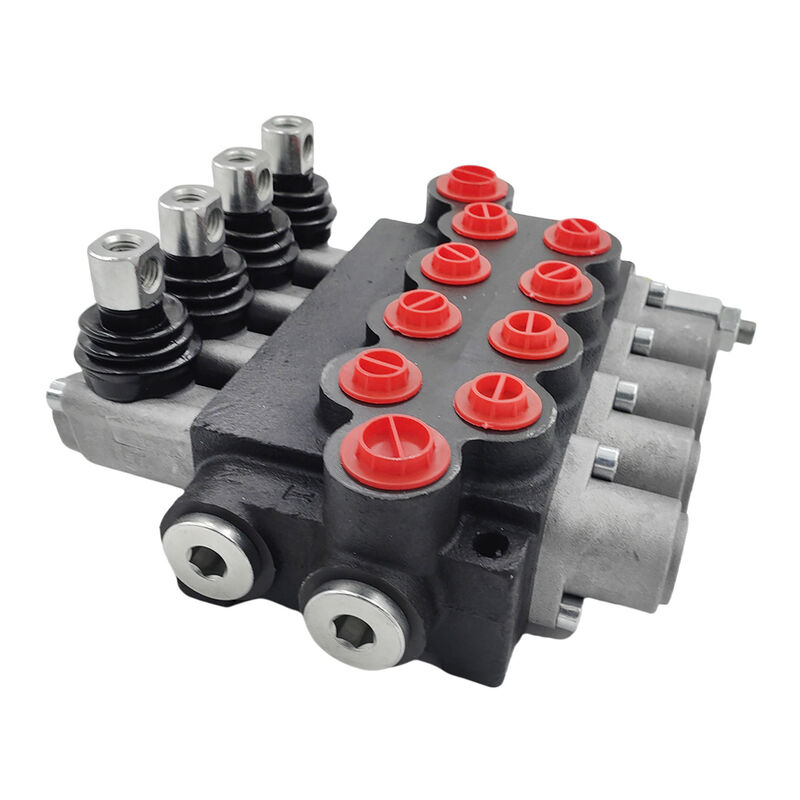

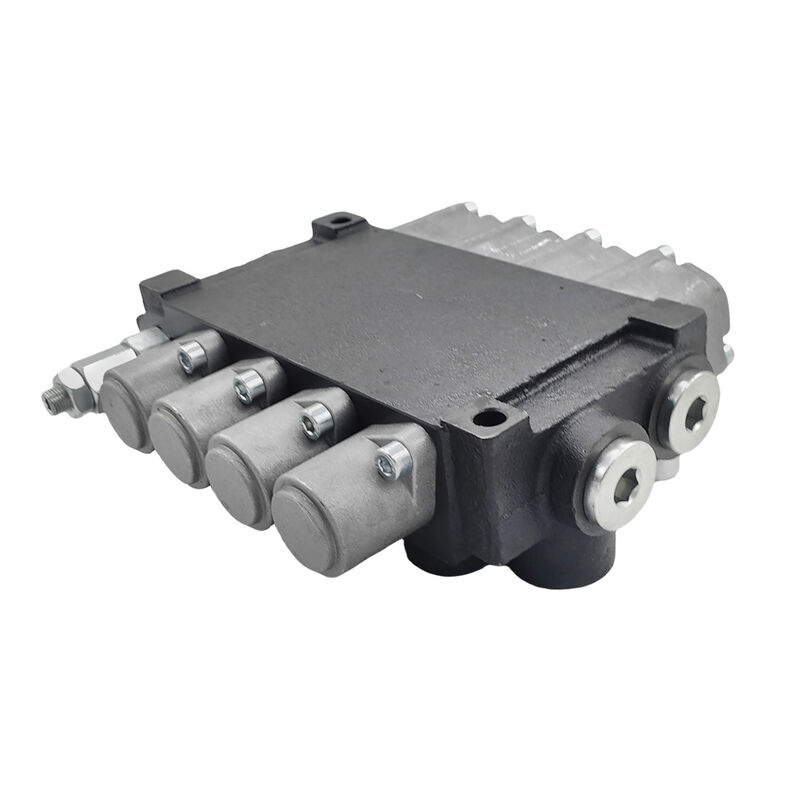

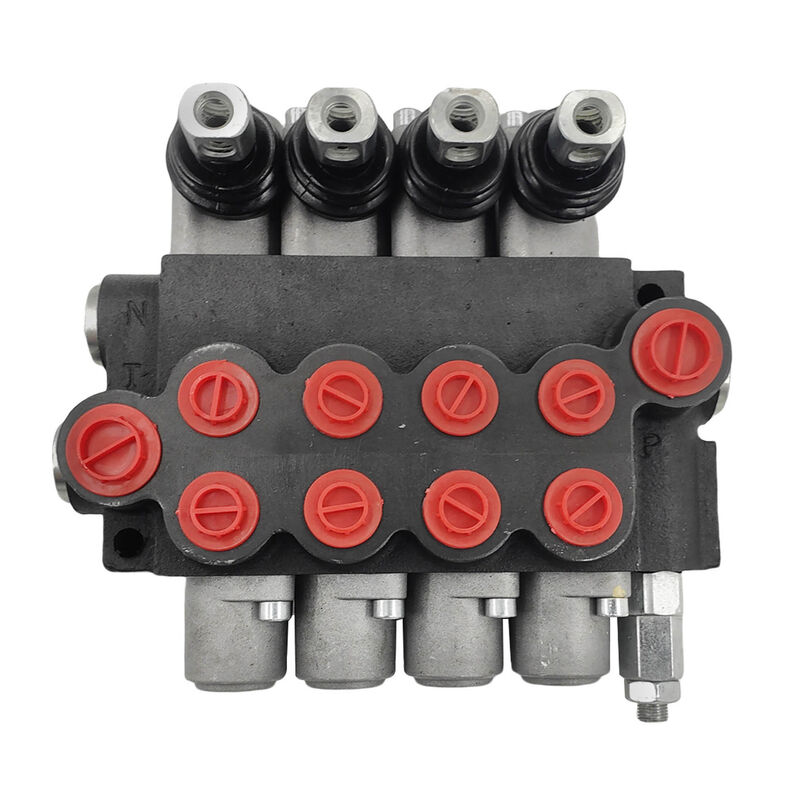

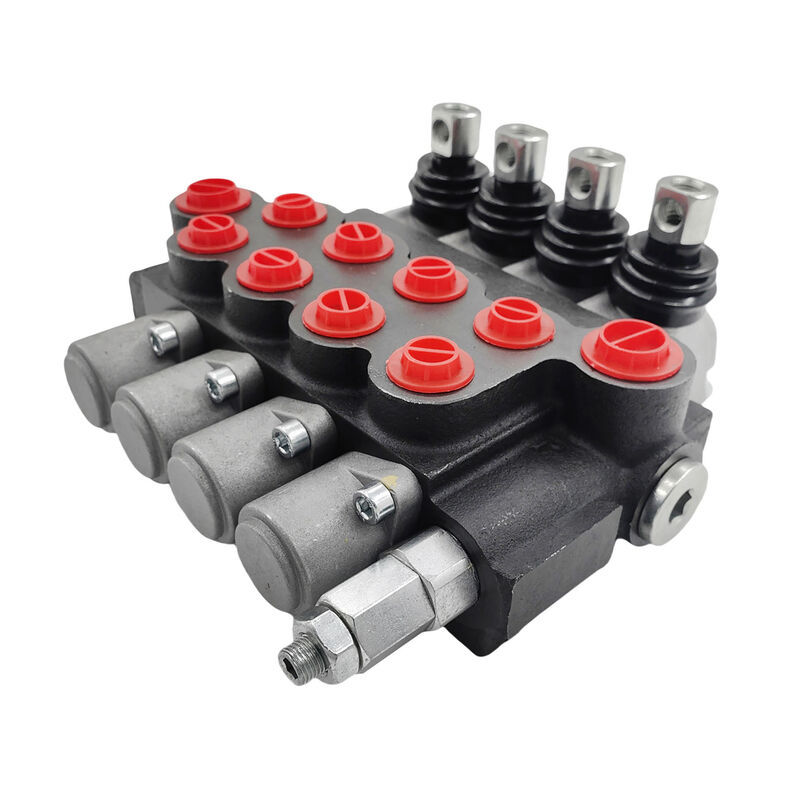

P40 - 4 Bank Double Acting Monoblock Lever Valve (Spring To Centre Levers)
