Fit For Make: Ford, Nissan
Model: Y60 DA Maverick LWB, Y60 DA Maverick SWB, Y60 GQ LWB, Y60 GQ SWB, Y60 GQ Ute Coil CAB, Y61 GU Ute Coil CAB, Y61 GU Wagon
Year: 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015
Engine Type: RB30, RD28T, RD28TI, TB42E, TB42S, TB45, TB48, TD28TI, TD42, TD42T, TD42TI, ZD30, ZD30CR

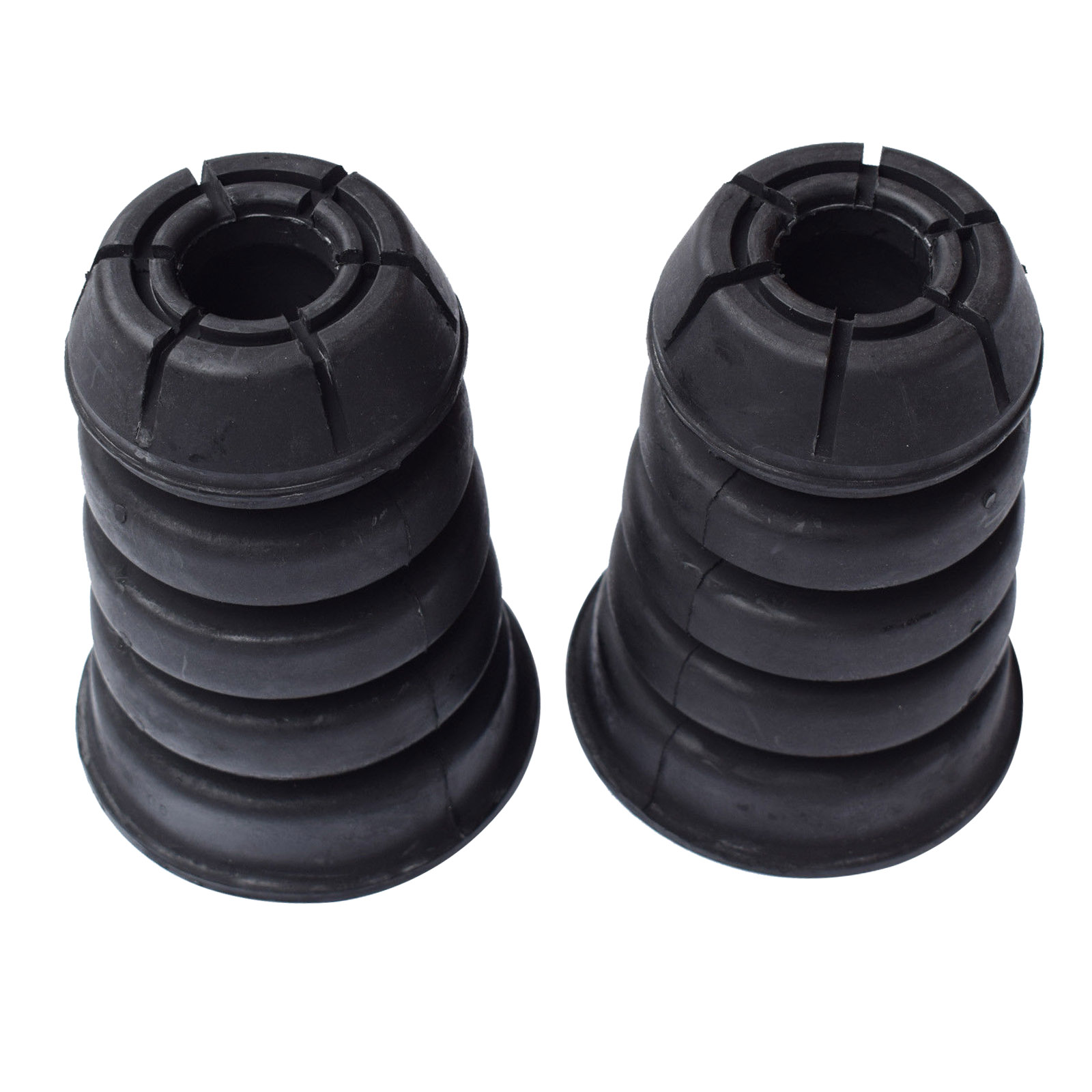

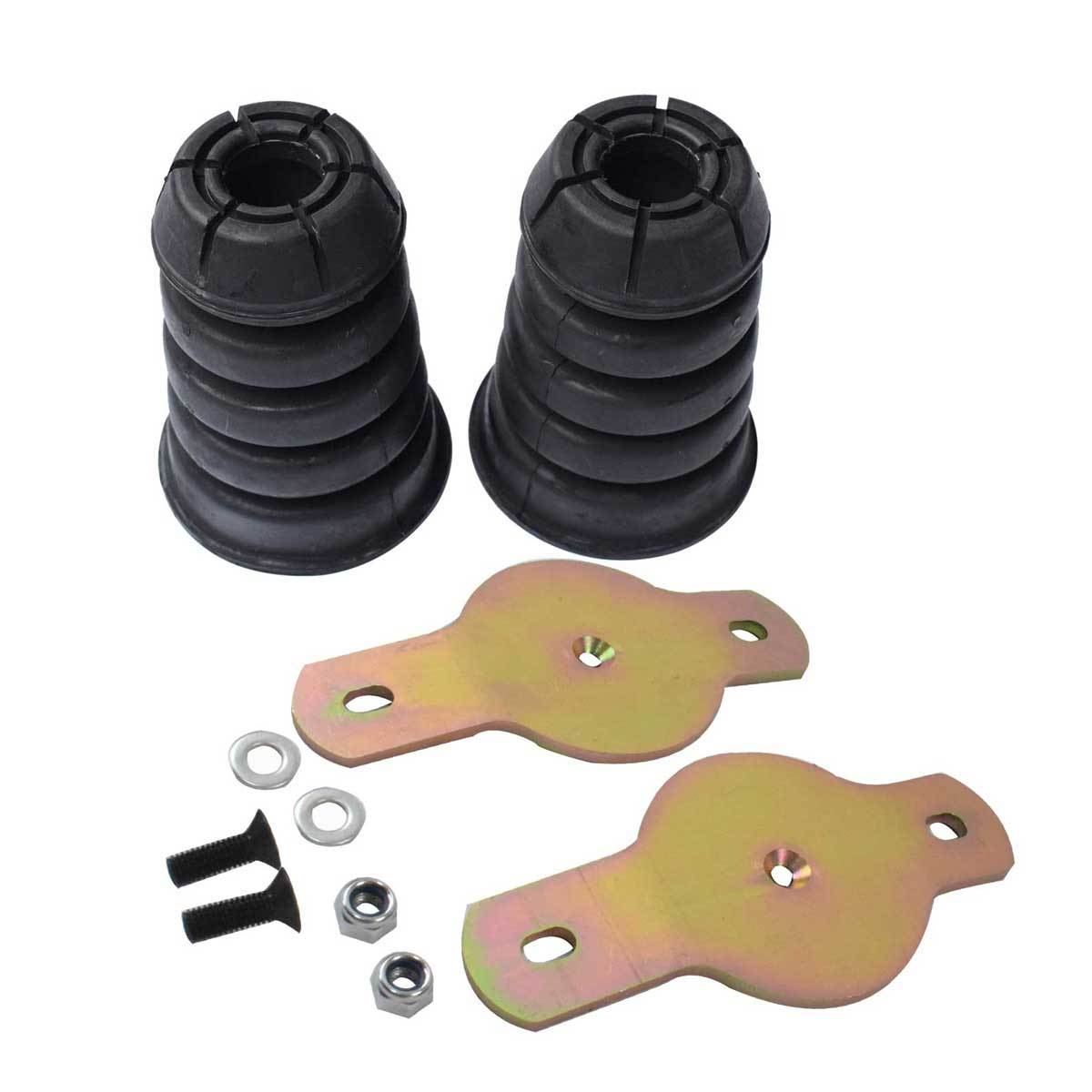

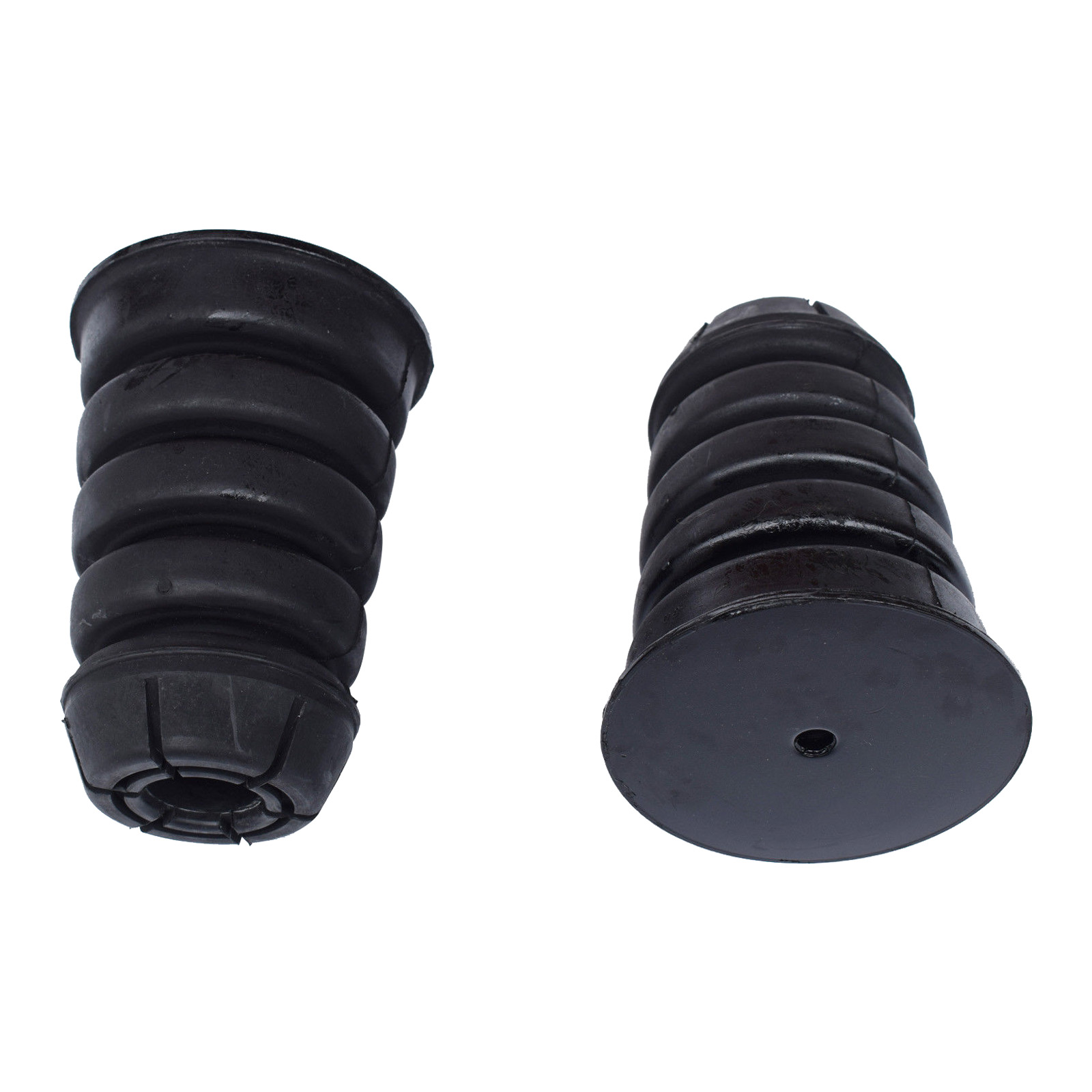

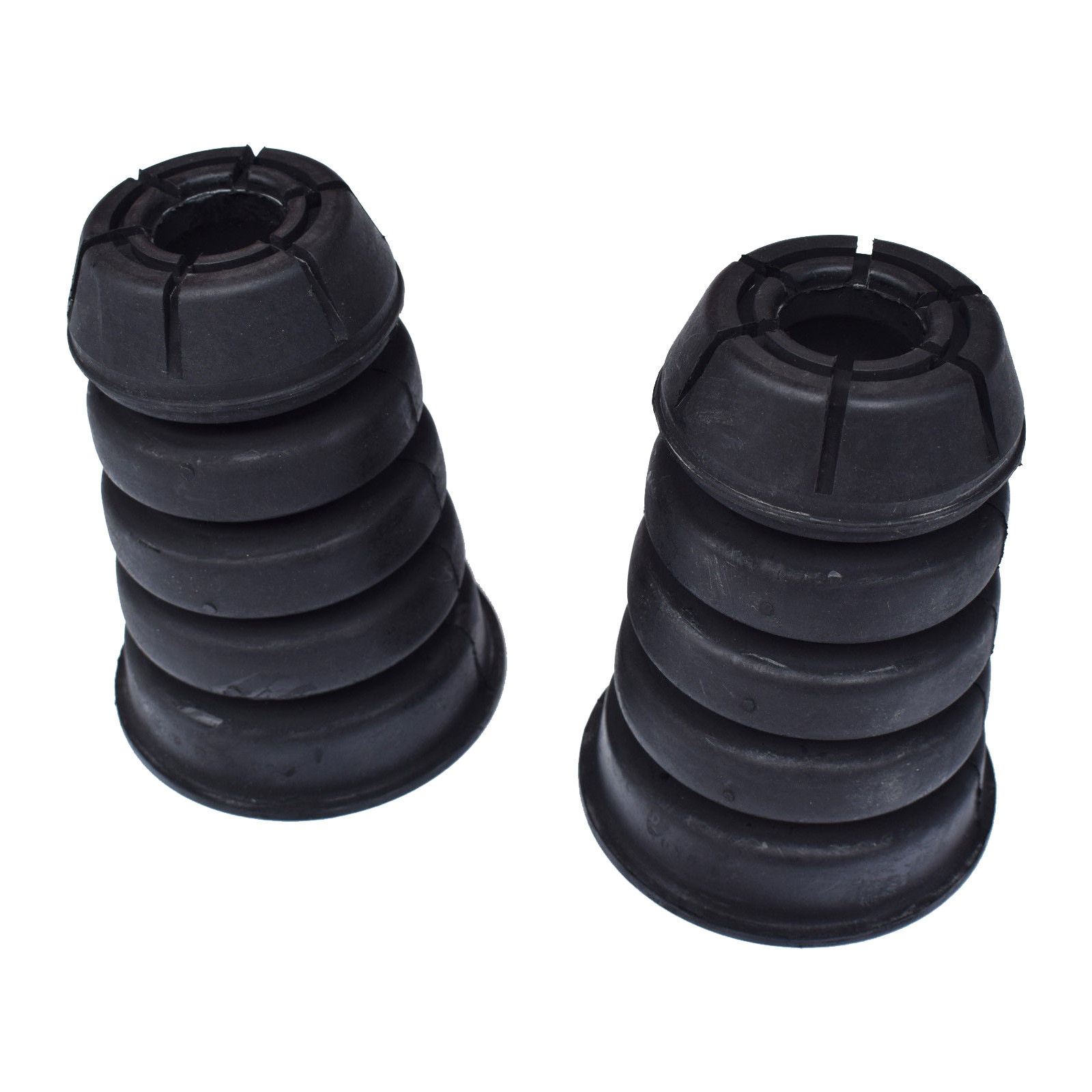

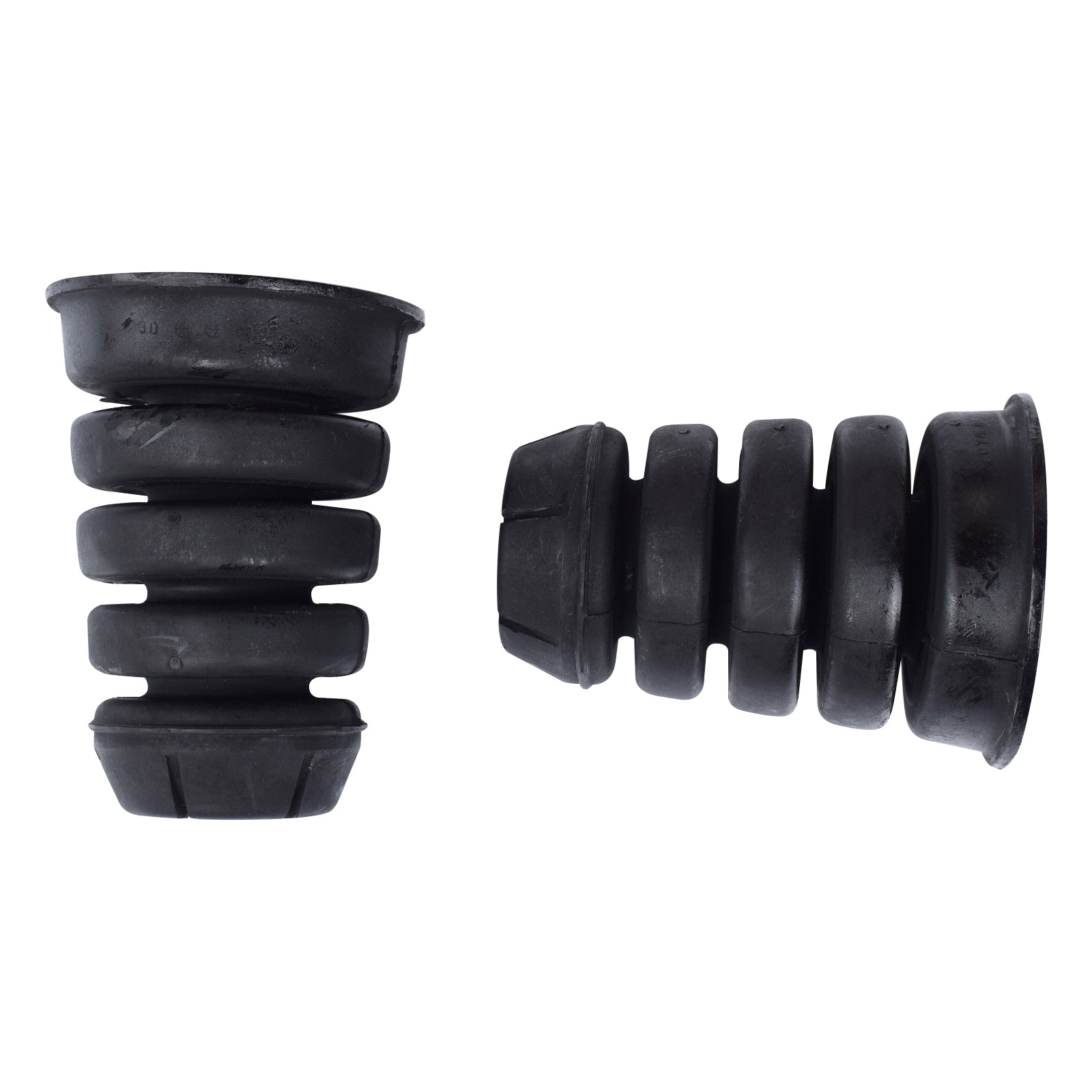

2 X Rear Bump Stops+Mounting Brackets Lift Kits


Factory Style Mounts To Suit A Landcruiser 80 Series.

'Bolt In' Rear Progressive Extended Bump Stop Kit For your Nissan GQ AND GU Patrol.

Commonly Used For Extending The Bump Stop Length On Nissan Patrol And Other Application.

Approx 30mm Longer And Are Suited To A 3" Lift.

They Will Also Suit A 4" Lift But The Bump Stops Will Most Likely Need To Be Extended On The Diff As Well. It Depends On The Shock Absorber And Is Up To The Installer To Check The Dimensions Before Installation.

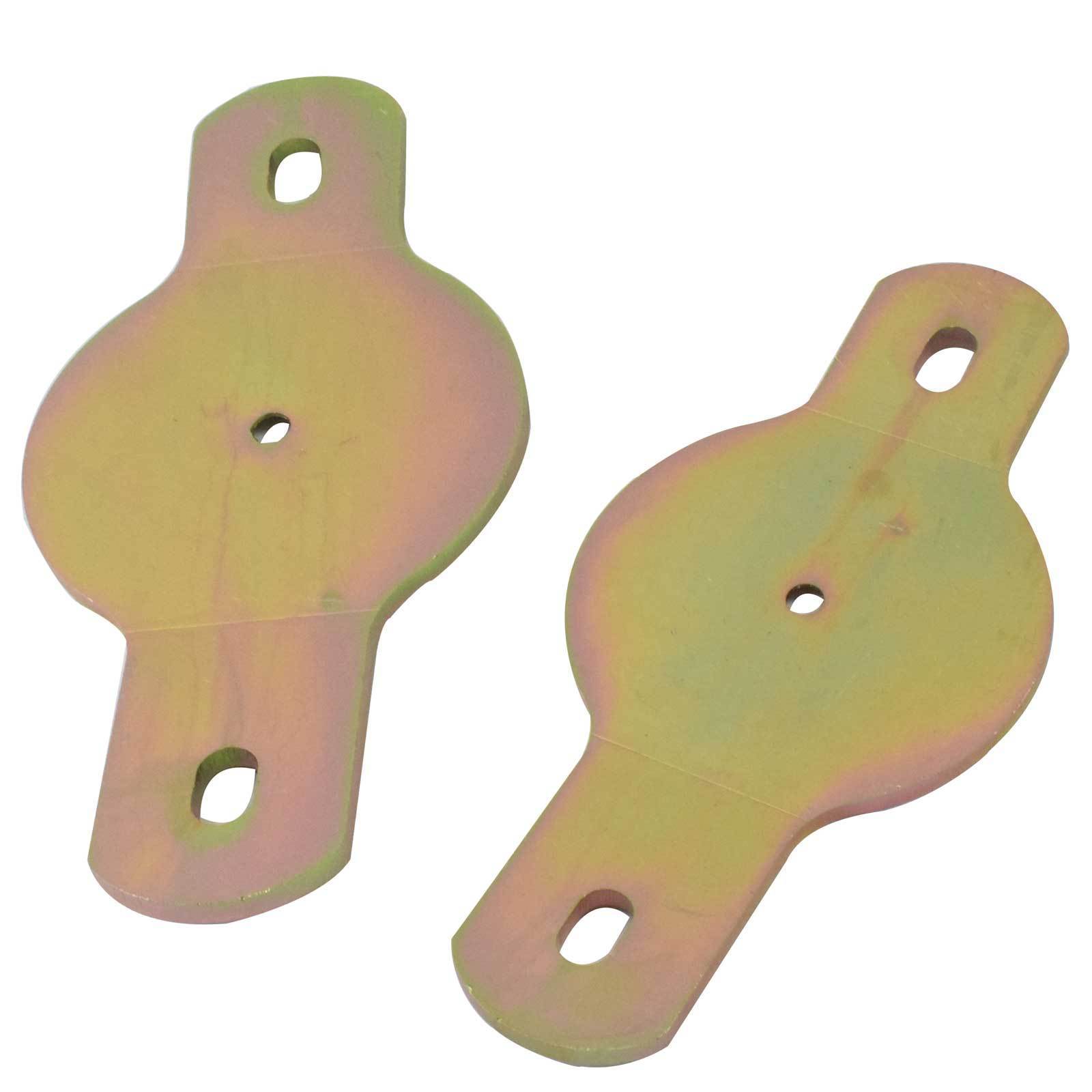

The Mount Is The Same As A Genuine Patrol Bump Stop Except Instead Of Having A Thread In The Top Plate, They Have A Hole For A Bolt To Go Through.
These Bump Stops Are A Progressive Bump Stop, Meaning As You Start To Compress They Get Firmer.
The Result Of This Is That They Can Be Longer, So They Start Working Sooner, Whilst Working To Give You A Smoother Ride.

Shipping Weight 4.0000kg
Shipping Width 0.050m
Shipping Height 0.080m
Shipping Length 0.080m
Shipping Cubic 0.000320000m3

This product fits the below vehicles. Please check that your vehicle is in the list before purchasing:
