Specification

Spacer Thickness: 15mm

Bolt Pattern: 5x120mm (5x4.7" Inch)

Center Bore: 72.56mm

Thread Pitch: M12x1.5

Studs: 10.9 Grade, stronger than OEM 8.8 Grade

Material: 6061 T6 Billet Aerospace Aluminum

Surface Treatment: Anodized

Color:Red



OEM Number

07701RD-15(2)



Fitment

For BMW

1 SERIES

2004-2013 116d,118d,120i,130i

2004-2013 116i(2011-2013 116i Only fit 121hp)

2004-2013 118i(2011-2013 118i Only fit 141hp)

2004-2013 120d(2011-2013 120d Only fit 174hp)

2008-2013 123d,135i

2008-2013 125i( Do not fit 2011-2013 front wheel 195/55R16)

2011-2012 M335hp



​3 Series

1991 M3,M3 EVO II

1992-1994 318is

1998-2013 316i(2012-2013 316i Only fit 134hp)

1998-2013 318i

1998-2013 320d(Do not fit front wheel 20/55R16, 205/502R16, 225/45R17, 225/45ZR17)

1998-2013 320i(Only fit front wheel 205/55R16,225/50ZR16,225/45R17,225/45ZR17,225/50R18,225/35ZR18,225/35ZR19,255/30ZR19)

1998-2000 323i

1999-2000 323ci,328ci

1998-2012 328i(2012 328i Only fit 230hp)

1999-2013 330d(2013 330d Only fit 241hp)

2000-2003 316ci

2000-2006 320ci,325ci,330ci

2000-2013 325i,325xi,330i,330xd,330xi

2001-2005 316ti,318ti,320td,325ti

2001-2012 318d(2012 318d Only fit front wheel 205/55R16, 255/45R17, 225/45ZR17)

2001-2013 325xi

2003-2006 318ci,320cd,330cd

2003-2005 318td

2006-2011 320si

2006-2013 325d(2013 325d Only fit 201hp)

2006-2013 335d(2013 335d Only fit 282hp)

2006-2013 335i(_2012-2013 335i Only fit 225/45ZR17,225/45R17,225/40ZR18,225/35ZR18,225/35ZR19,225/30ZR19)

2006-2013 335xi

2007-2012 328xi

2007-2013 320xd



5 Series

1988-1995 520i,524td,525i,530i,535i,M5,518i,545i

2004-2010 520i,525i,530i

1991-1997 520i Touring,525i Touring

2004-2010 525i Touring(2004 525i Only fit 225/55R16,225/50ZR17,245/45ZR17, 245/40ZR18,275/35ZR18,245/35ZR19)

1991-1995 525tds,525tds Touring

1992-1996 530i Touring,540i

1993-1996 518i Touring

1993-1997 525td Touring,540i Touring

1994-1997 M5 Touring

1995-1996 518g Touring

2003-2010 530d(2010 530d Only fit 241hp)

2003-2010 545i

2004-2010 525d(2010 525d Only fit 194hp)

2004-2010 525d Touring,535d,535d Touring,

2004-2005 545i Touring

2005-2010 520d(2010 520d Only fit 174hp/520d 161hp)

2005-2010 523i(2010 523i Only fit 188hp)

2005-2010 520d Touring,523i Touring, 525xi,530d Touring,530xi,550i Touring,540i

2006-2010 530xd

2006-2010 550i(2010 550i Only fit 362hp)

2007-2010 525d xDrive,525i xDrive,525xd,520i Touring

2008-2010 530d xDrive,530i xDrive



6 Series

2003-2010 630i,635d,650i



7 SERIES

1986-2001 730i,735i

1987-2001 750i

1992-2001 740i

1995-2001 725tds,728i,728iL,730d,730iL,740d,740dL,740iL,750iL



8 Series

1990-1999 840ci,850i



Z3

1996-2003 1.8i,1.9i,2.0i,2.2i,2.8i,3.0i,3.2i



M3

1992-1999 3.0

2000-2006 3.2i,3.2i Cabrio

2008-2013 4.0



M5

2005-2010 5.0,M5,M5 Touring



Z8

2000-2003 4.9i



Z4 Roadster

2002-2009 2.0i,2.5i,2.5si,3.0si,3.0i

2009-2012 s Drive 30i,s Drive 23i

2009-2017 s Drive 35i

2011-2017 s Drive 35is

2012-2017 s Drive 28i

2013-2016 s Drive 18i

2013-2017 s Drive 20i



M6

2005-2011 5.0



X1

2009-2015 18d(2015 18d Only fit 141hp)

20d(2015 20d Only fit 181hp)

2009-2012 23d

2009-2015 28i

2012-2015 35i

2012-2014 16d

2012-2015 18i(2015 18i Only fit 148hp)

20i(2015 20i Only fit 181hp)

​25d(2015 25d Only fit 215hp)

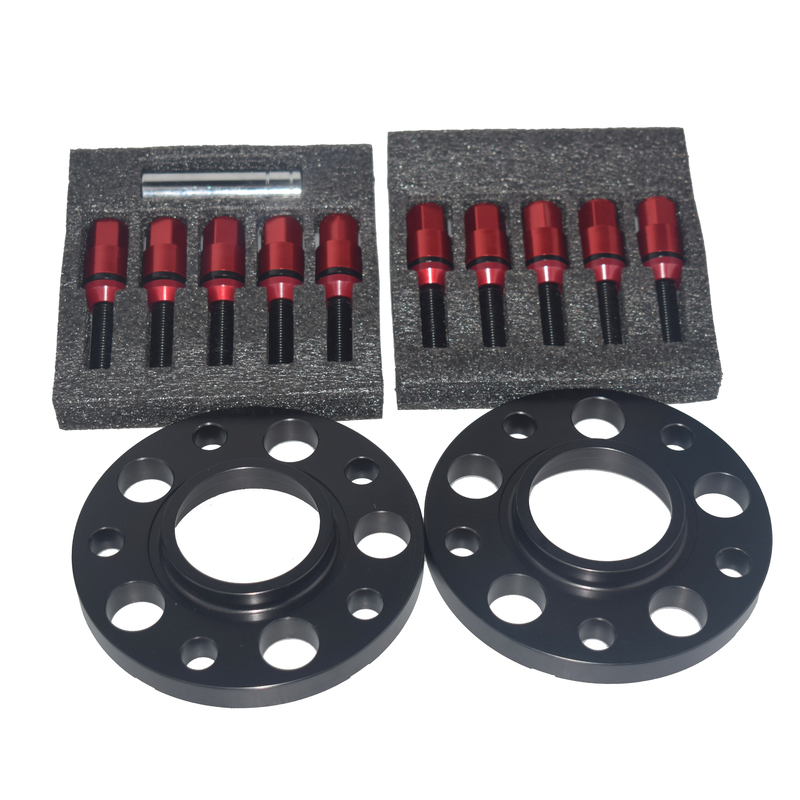

Package

2 x Hubcentric Wheel Spacers

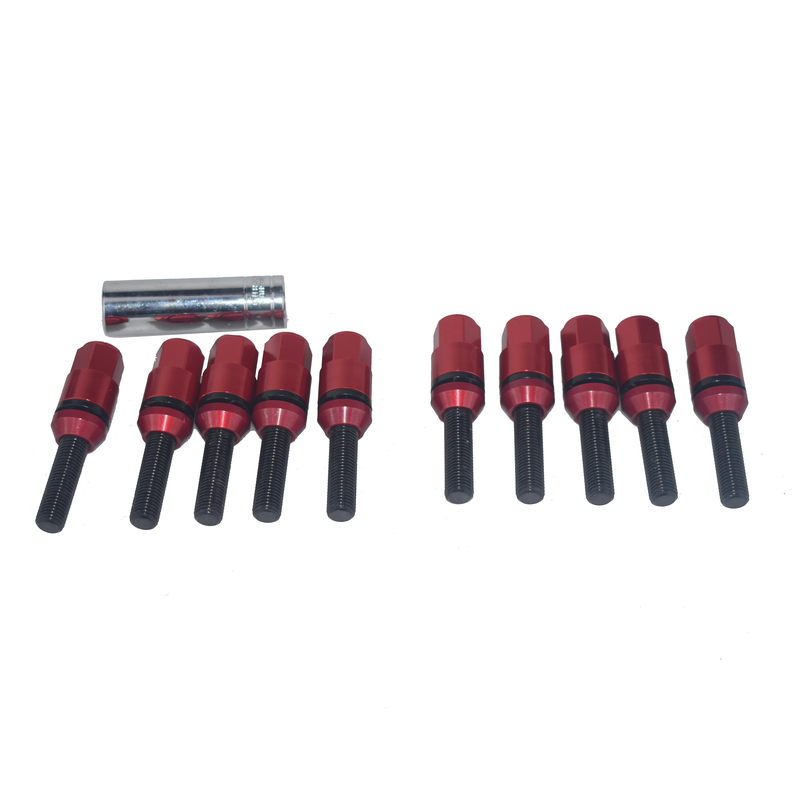

10 x Extended Wheel Bolts  (Tapered Style)
