Features

Type: Fuel Filter/Regulator

Mounting Bracket Included: Yes

Maximum Fuel Pressure (psi): 58

Inlet/Outlet Attachment: Quick-connect

OEM Part Number

GF822, 10299146, 19239926, 33737, TBSS intake, NNBS Intake, L92 Intake, returnless

Engine 4.8, 5.3, 6.0, 6.2 replace for LS(1 2 3 4), L76, L98, L77, LY6, LFA, LZ1, LY2, L20, LH6, for LSX

Description

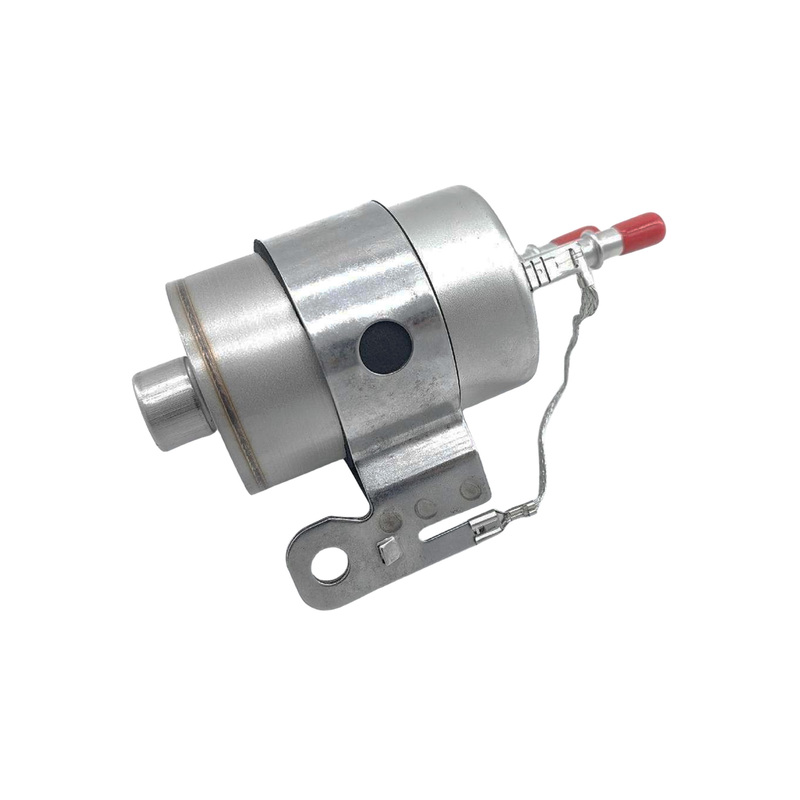

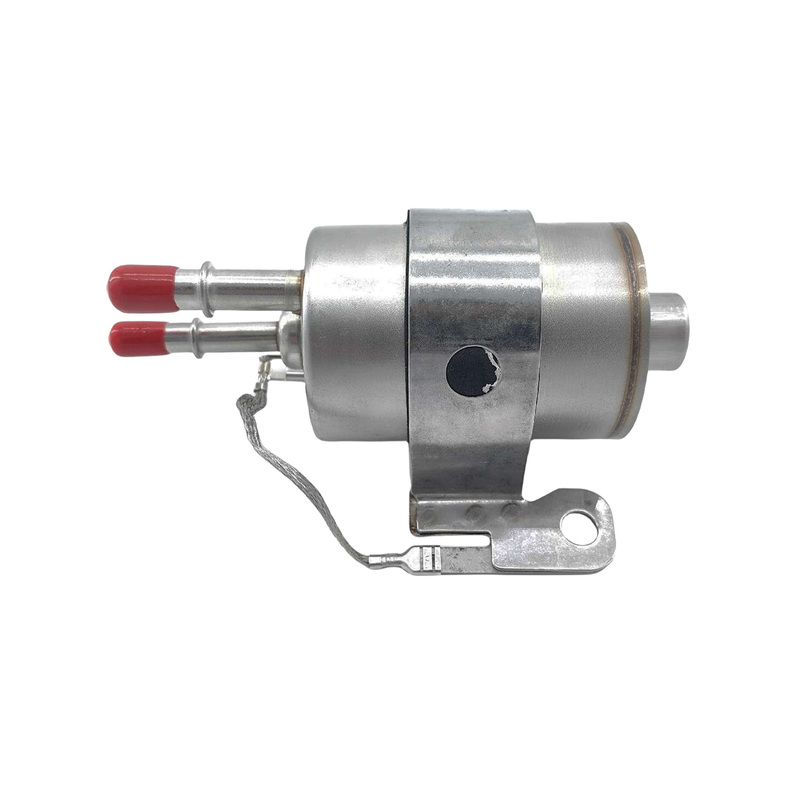

This Filter-Regulator Is For C5 Corvette 1999-2004 And A Set Of AN-6 Adapter Fittings.

Mounted Near The Fuel Tank, Filter Allows You To Run A Single Fuel Feed Line To The Engine And Just A Short Return Loop Back To The Tank. Bypass Pressure Regulator Passes 58PSI(4 Bar)To Fuel Rail And Returns Unused Gas To The Tank. The Filter Features A 3/8" Male Inlet, 5/16" Male Return Outlet, And A 3/8" Female Supply Outlet.

Using This Injector Pressure Regulator Set Between The Returnless Style Fuel Rails And Your Return Style Fuel Lines Allows For A Plug And Play For Retrofitting TBSS/NNBS Intake Manifolds Onto 99-04 Return Style NBS (For Silverado/For Sierra) Truck And Other Applications.


Fitment

Fit For LS Swap EFI

For Chevy C5 Corvette

For Chevrolet 1999-2014 V8 5.3L/325 Gen III/IV (for LS-based engines)

For Chevrolet 1999-2014 V8 4.8L/294 Gen III/IV (for LS-based engines)

For Chevy 1999-2014 V8 6.0L/364 Gen III/IV (for LS-based engines)

Commonly Used For LSX Swap, For Primary Fuel Supply To Newer LT1 DGI. Not For Era LT1 1990s.

This Flowing A Maximum Of 255LPH, It May Cause Fuel Pressure Creep If Exceed 255LPH.

Not For Dual Pump Setups, Not For Turbo Or Supercharged Applications Which Require Vacuum Reference.

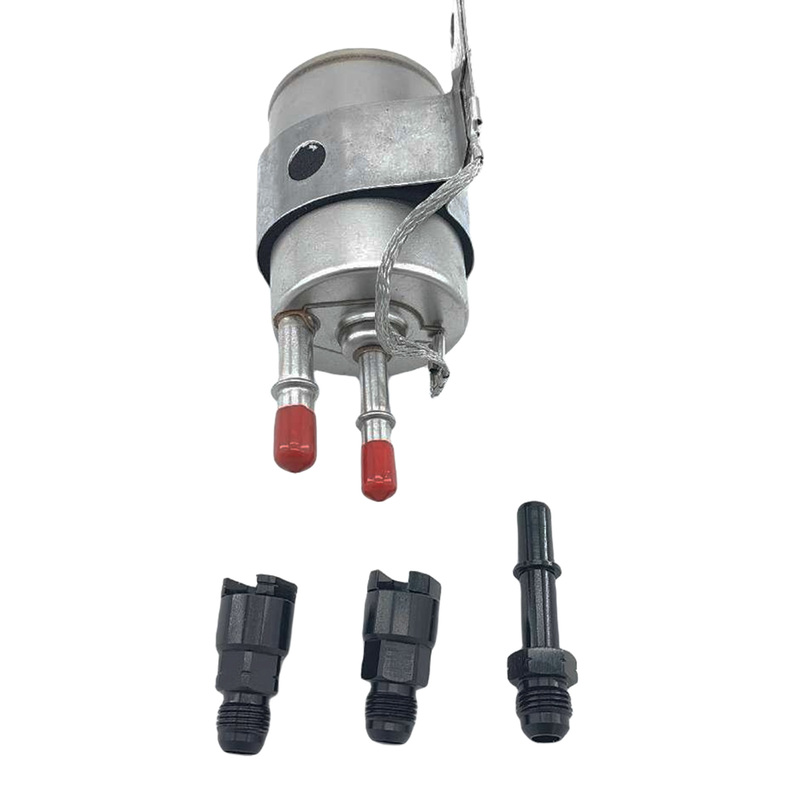

Package

1 x For LS Fuel Filter

1 x 3/8" Male Inlet

1 x 5/16" Male Return Outlet

1 x 6AN Male to 3/8" Female Supply Outlet

Mounting Bracket And Rubber Insulator
