Specification

Splines Count ： 33

Hub Pilot Dia： 90mm
ABS：yes integrated sensor
Stud Count：6 M12 x 1.5 @ 139.7mm
Wheel Pilot Diameter：100mm
Brake Pilot Diameter：104mm
Flange Offset：58mm
Hub Pilot Diameter：90mm
4 Bolt Hub, PCD：M12 x 1.75 @ 116mm
Flange OD：170mm

Fitment

Fit For Holden Colorado RG 2.8L Turbo Diesel 4WD 06/2012 - ON (Double Check Wheel Pilot 100mm)

Fit For Holden Trailblazer RG 2.8L 4WD 2017- 2020

Fit For HSV Colorado RG 2.8L 4WD 2018- ON

Note: Double Check Wheel Pilot 100mm

Package

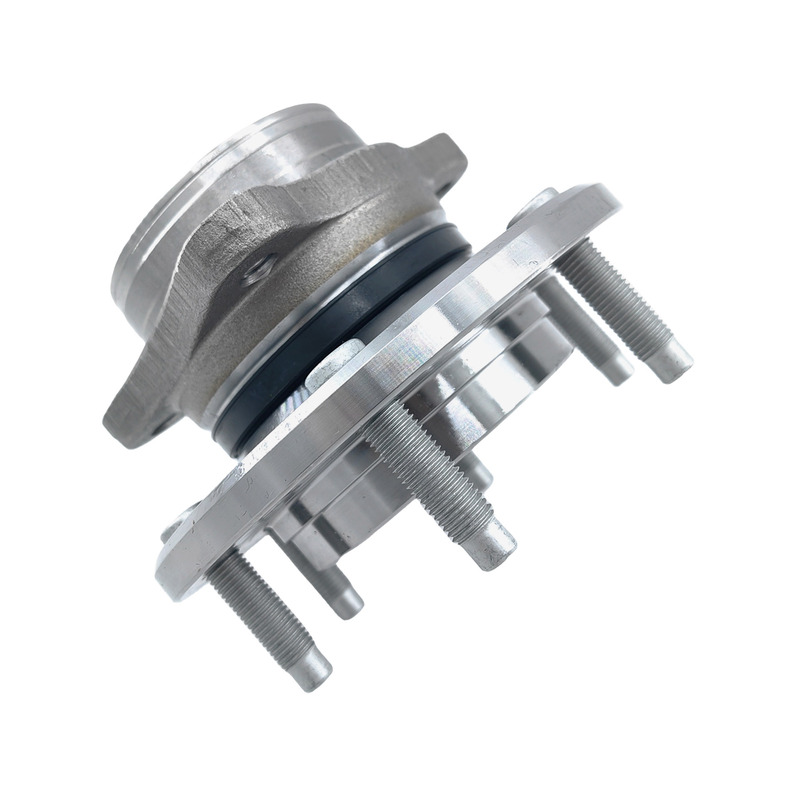

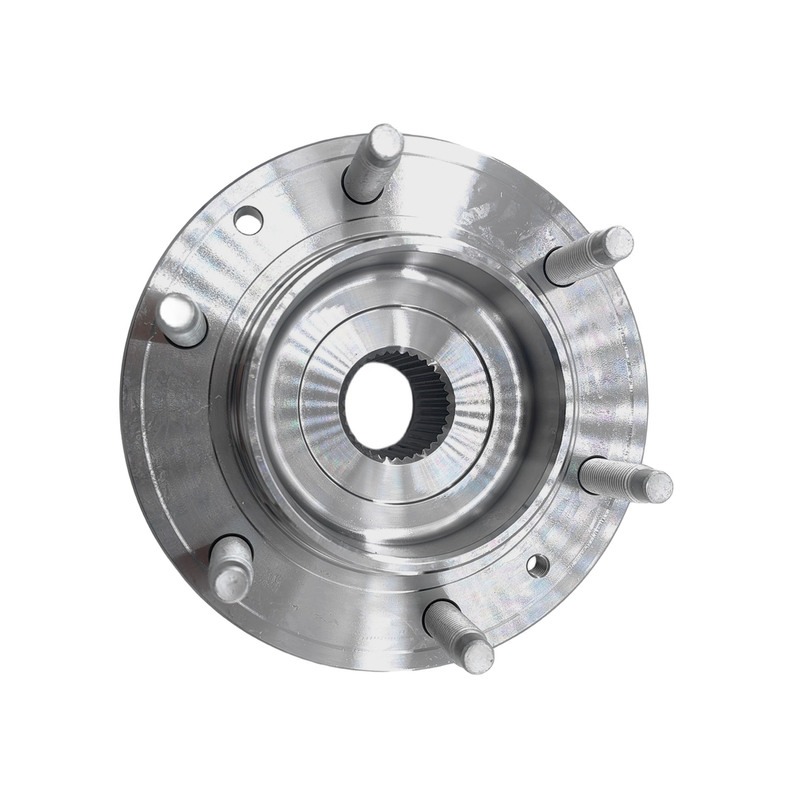

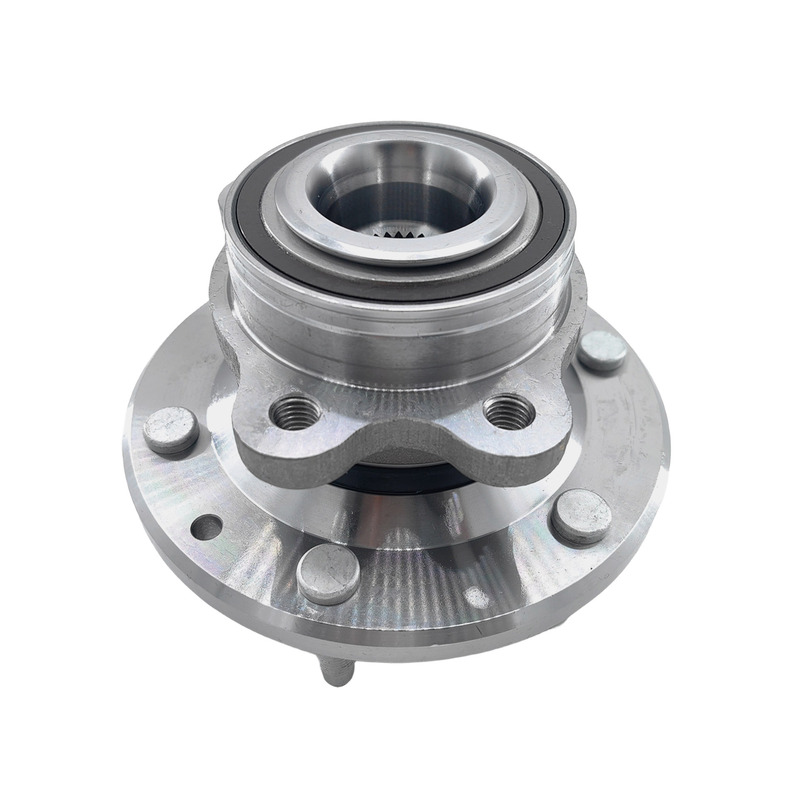

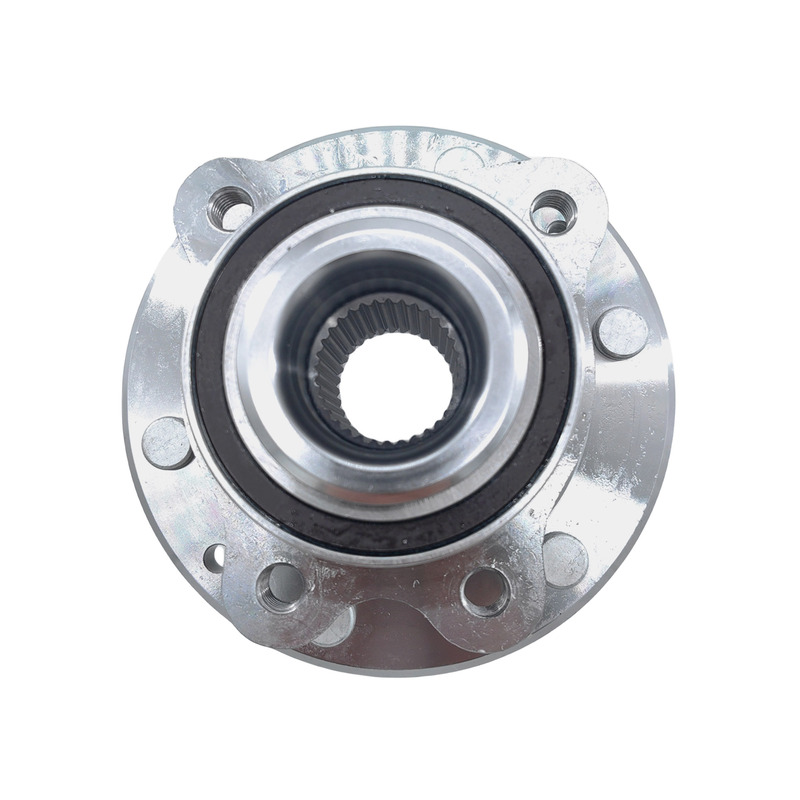

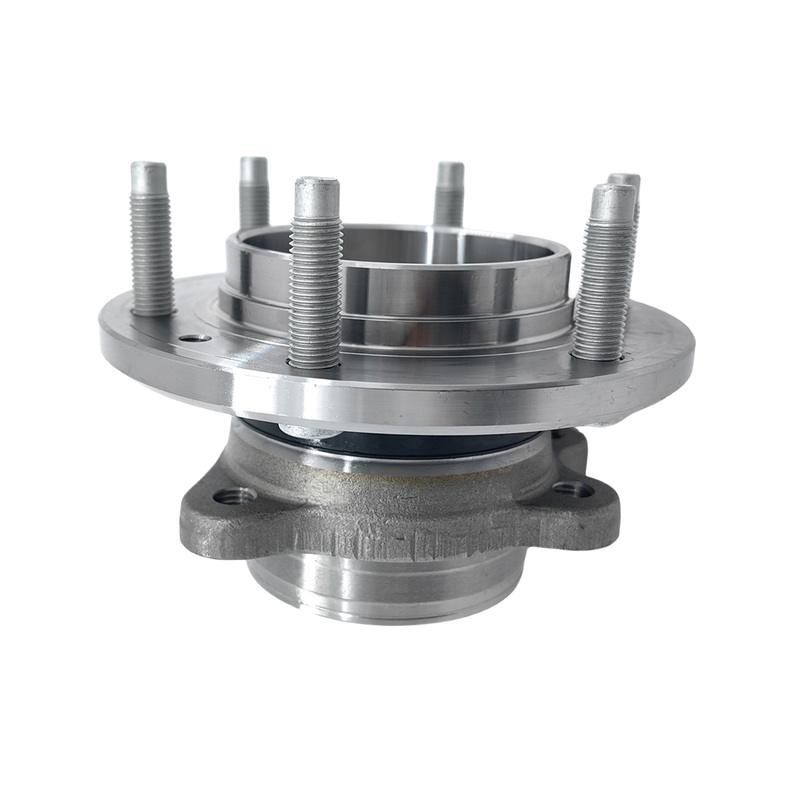

1 x Front Wheel Bearing Hub Assembly
